CRL-U.S. Series 400 Clear Anodized Geared Hinge - Rim, Surface Closer

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
• Custom fabricated to accept optional hardware applications (prepped for panic, rim, and gear hinge hardware)
• Includes standard panic pull, hanging hardware, rim panic hardware, and one cylinder
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

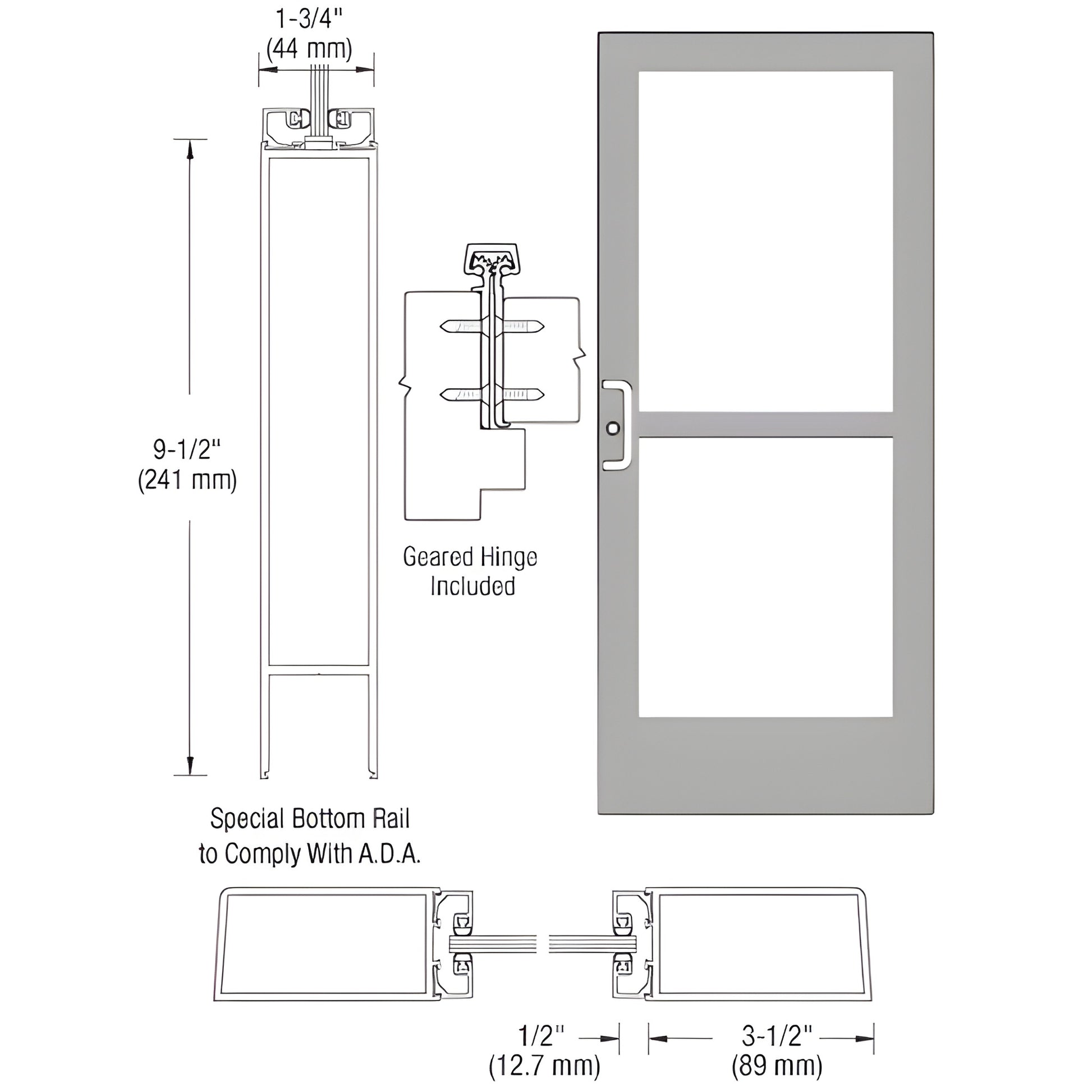

This Custom Medium Stile Entrance Door (SKU: CR41811) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard preparations include stiles for gear hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for commercial storefront and entrance applications, this door is ready for a wide range of optional hardware and security configurations.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Contact CRL Customer Service to confirm specifications, shipping weight, or to order SKU CR41811.
