CRL-U.S. Aluminum 550 Geared Hinge for Surface-Mount Closers
CRL-U.S. Aluminum 550 Geared Hinge for Surface-Mount Closers
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD51811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)

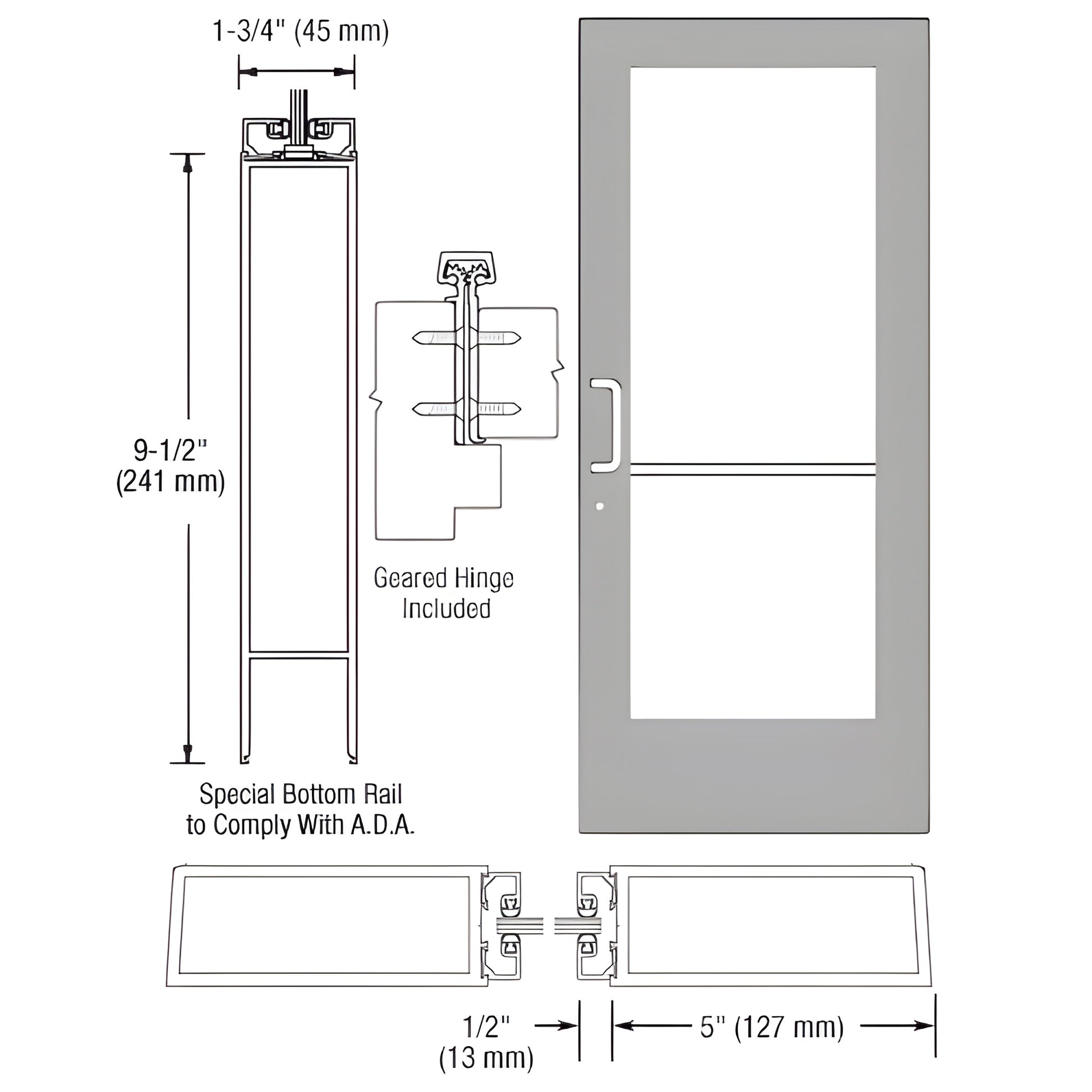

This CRL Custom Wide Stile Entrance Door (SKU: CD51811) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial entrances, the wide-stile construction is prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others), while allowing custom fabrication for a wide range of optional hardware and access-control applications.
Handles, pivots, and other protruding hardware are boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order the CRL Custom Wide Stile Entrance Door CD51811 for a durable, ADA-ready commercial door solution — contact CRL to customize hardware and glass options.
Specifications
BIM Objects - rvt
