CRL-U.S. Aluminum 550 Anodized Offset Pivot Door - Surface Closer
CRL-U.S. Aluminum 550 Anodized Offset Pivot Door - Surface Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD51211
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications (ready for offset pivot hardware)

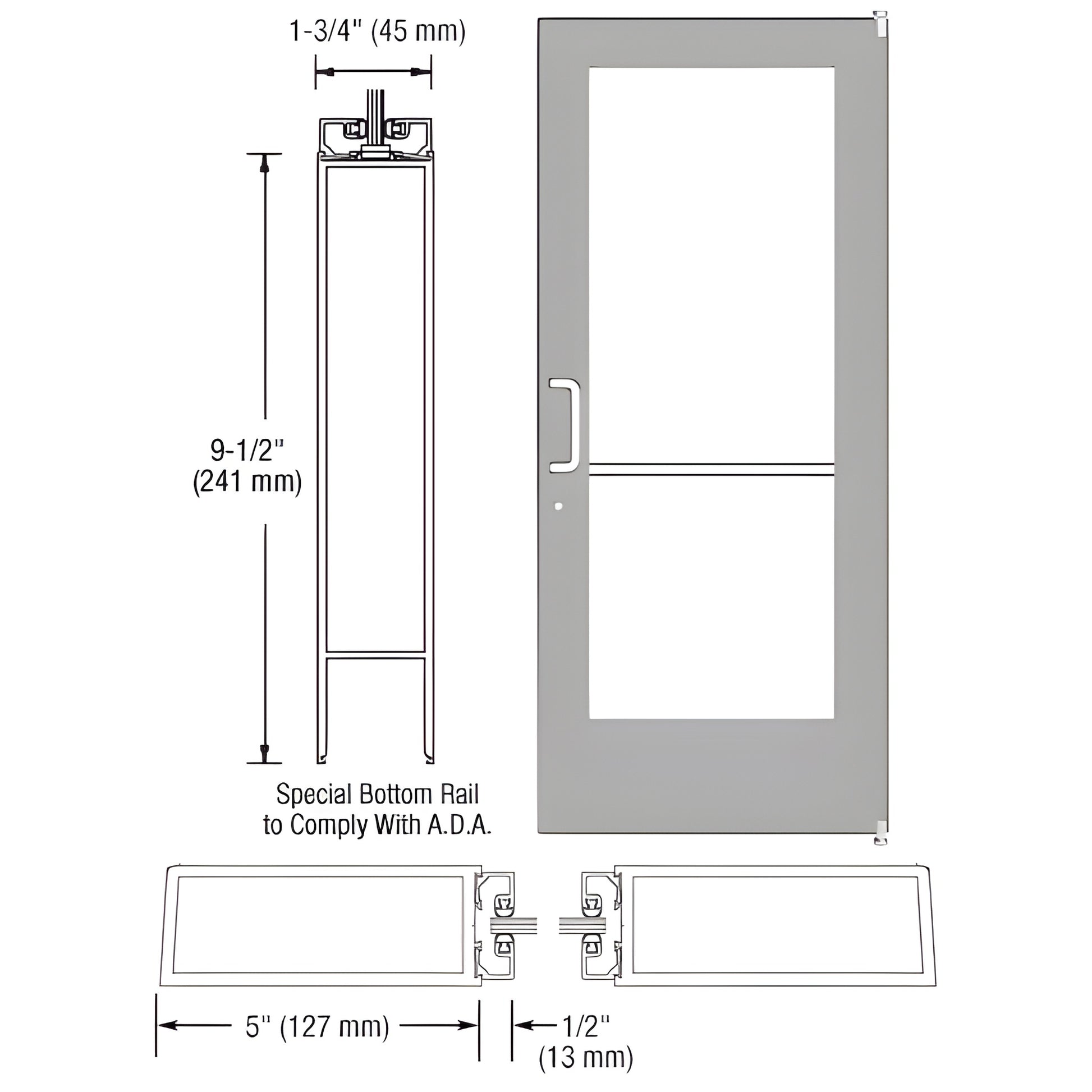

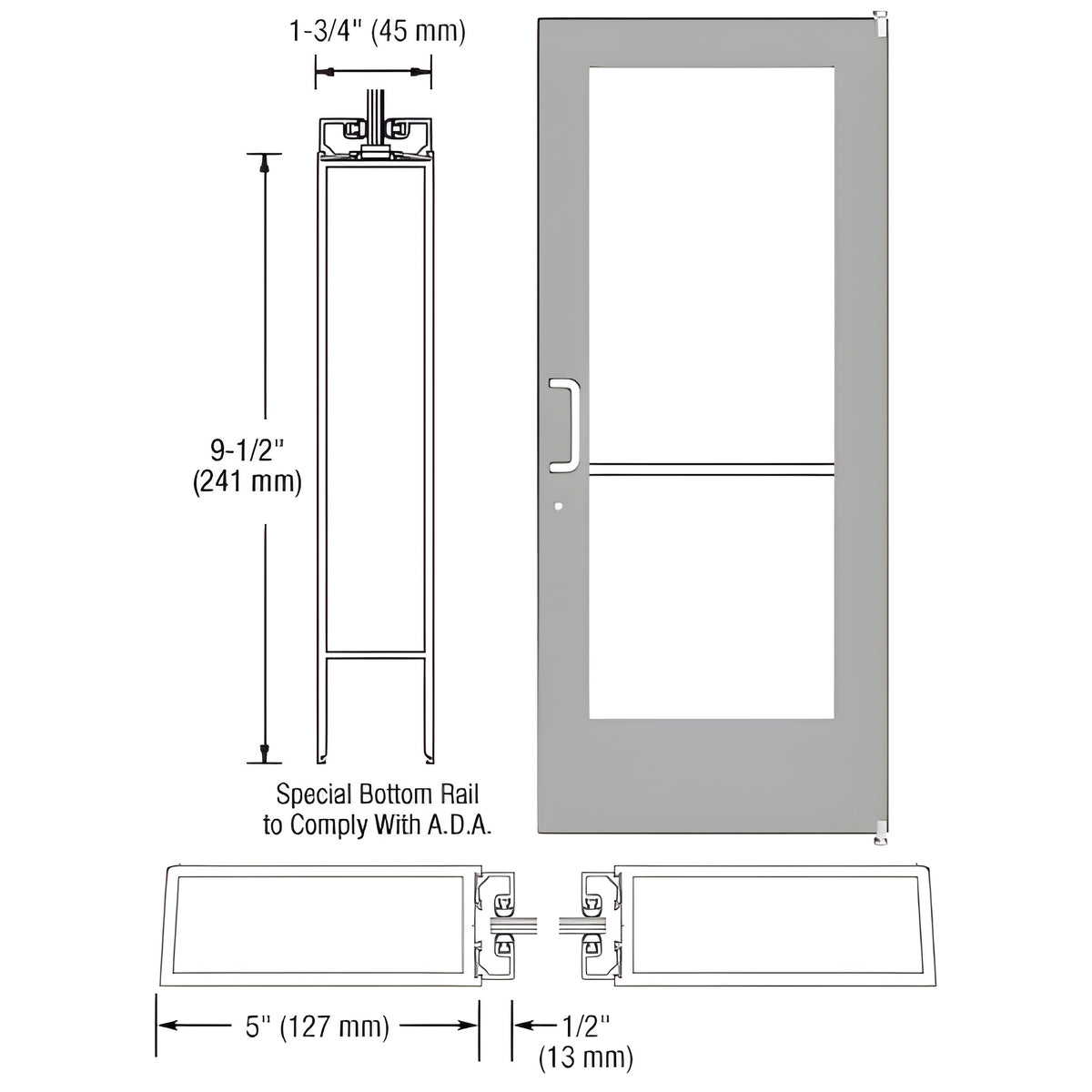

This CRL Custom Wide Stile Entrance Door (SKU CD51211) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial storefronts and architectural entrances, the door ships with protruding hardware boxed separately to prevent transit damage; customers must install included handles, pivots, and similar hardware. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Key differentiators: custom wide stile construction for heavy-duty commercial use, MS Hookbolt lock plus keyed-alike cylinders for convenient security, and clear accommodation for tempered or insulating glass options.
Order the CRL Custom Wide Stile Entrance Door (CD51211) or contact us for custom hardware configurations.
Specifications
BIM Objects - rvt
