CRL-U.S. Aluminum 604 Clear Anodized Blast-Resistant Butt Hinge
CRL-U.S. Aluminum 604 Clear Anodized Blast-Resistant Butt Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BR61511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders — SKU: BR61511
- Accommodates 1-5/16” (33 mm) impact resistant glazing to meet project specifications (glass not included)
- 7-5/16" (186 mm) bottom rail
- Custom fabricated to accept optional hardware applications

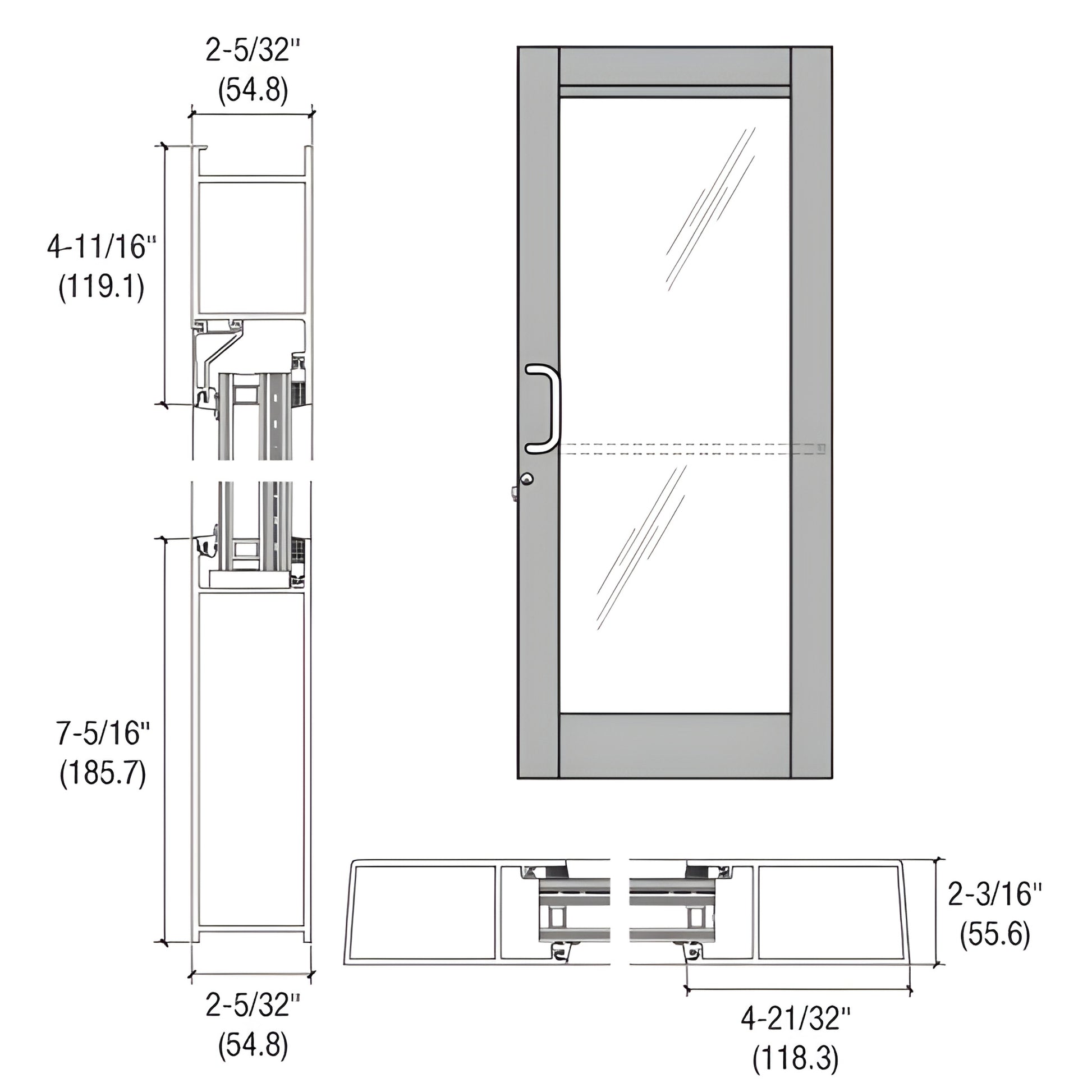

This CRL Custom Blast Resistant Entrance Door (SKU: BR61511) is designed for high-security and retrofit projects. Key construction dimensions: 4-21/32" (118 mm) stiles, 4-11/16" (119 mm) top rail, and a 7-5/16" (186 mm) bottom rail. Standard prep includes stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). The door is ready for custom fabrication to accept a wide range of optional hardware applications, making it ideal for custom blast-resistant entrance systems and perimeter security solutions.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not comply with A.D.A. inspection requirements.
Request a quote or contact CRL Customer Service for custom fabrication details and lead times.
