CRL-U.S. Aluminum Series 604 Clear Anodized Blast-Resistant Butt Hinge
CRL-U.S. Aluminum Series 604 Clear Anodized Blast-Resistant Butt Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BZ61511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Standard butt hinges and concealed vertical rod (CVR) panic hardware
- Accommodates 1-5/16" (33 mm) insulating laminated glazing (glass not included)
- 7-5/16" (186 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications
- Tested for 1–4 PSI blast resistance

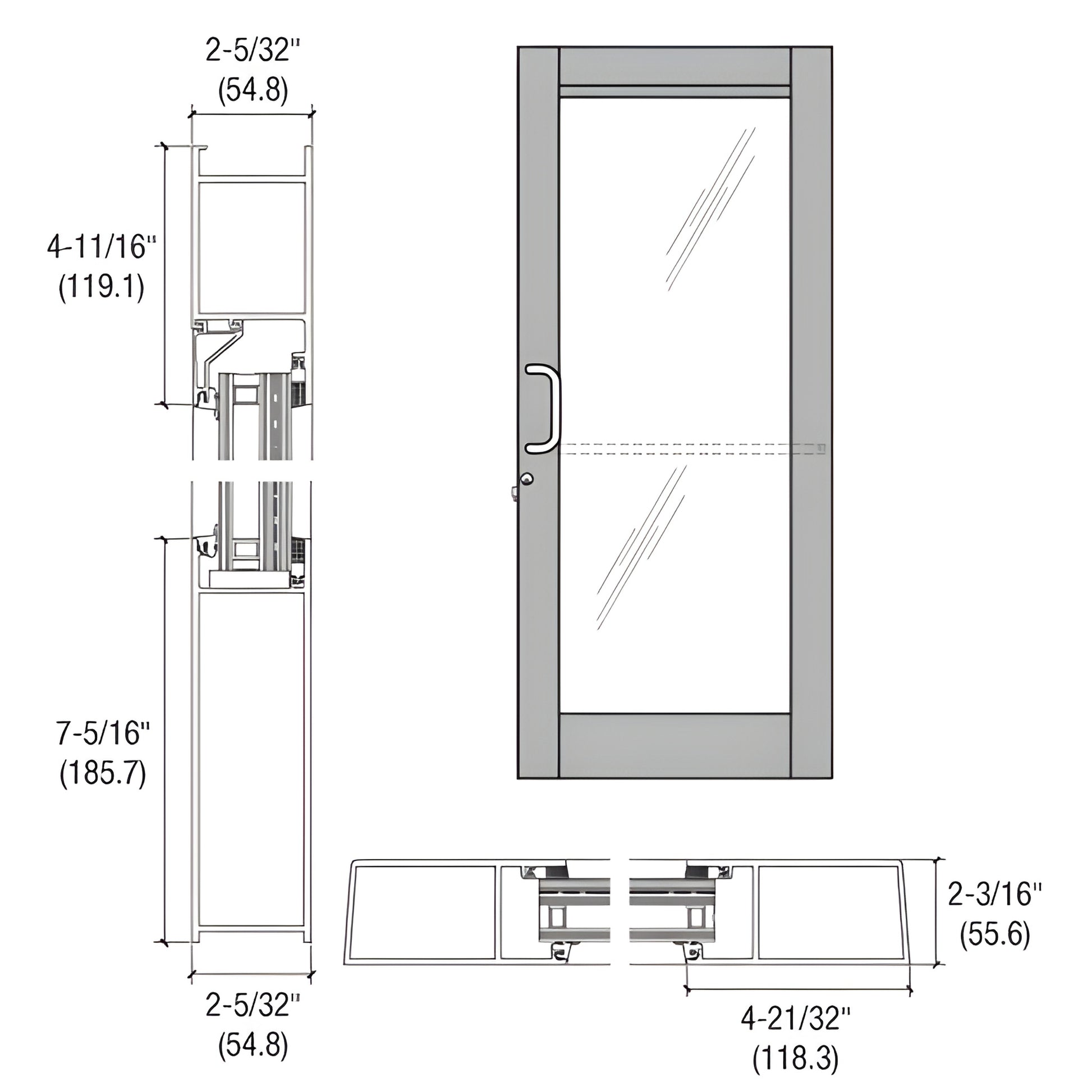

CRL Custom Blast Resistant Entrance Door with 4-21/32" (118 mm) stiles, 4-11/16" (119 mm) top rail, and a 7-5/16" (186 mm) bottom rail. Designed for commercial blast-resistant applications, this door accepts 1-5/16" (33 mm) insulating laminated glazing and is custom fabricated to integrate optional hardware. Glass is supplied by others.
Standard preparation includes stiles for butt hinges and CVR panic. Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
SKU: BZ61511 — For pricing, lead times, or to configure this blast resistant entrance door for your project, contact CRL Customer Service today.
