Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1-5/16" (33 mm) insulating laminated glazing to meet project specifications (glass not included)
- Custom fabricated to accept a wide range of optional hardware applications
- Tested for 1–4 PSI blast resistance
- Standard butt hinges and concealed vertical rod (CVR) panic hardware

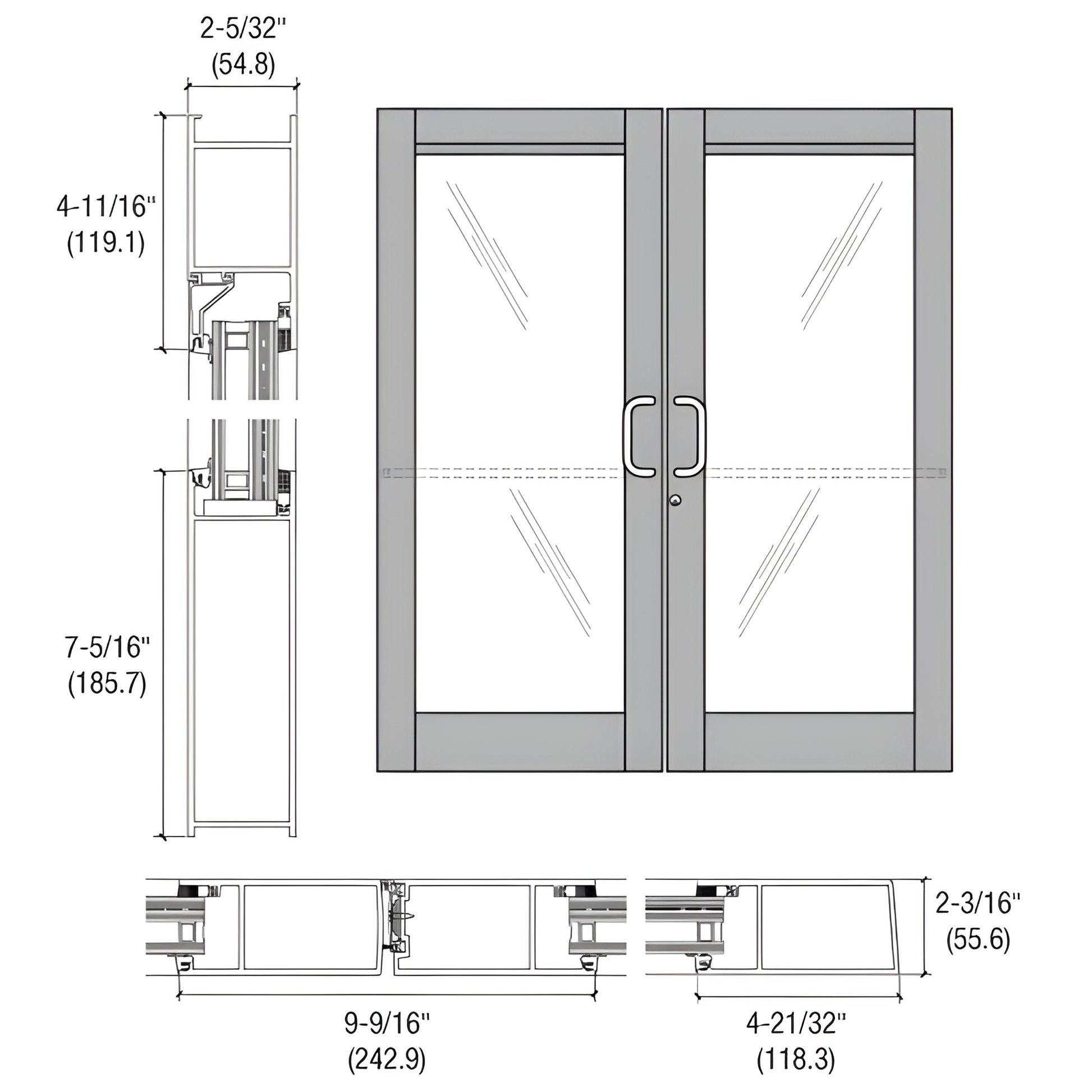

This CRL Custom Blast Resistant Entrance Door (SKU BZ62511) features 4-21/32" (118 mm) stiles, a 4-11/16" (119 mm) top rail, and a 7-5/16" (186 mm) bottom rail. It includes glass stops sized for 1-5/16" (33 mm) insulating laminated glass (by others) and is ready for custom fabrication for optional hardware. Designed for commercial blast-resistant entrance applications, it balances structural performance with field-ready hardware adaptability.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer.
