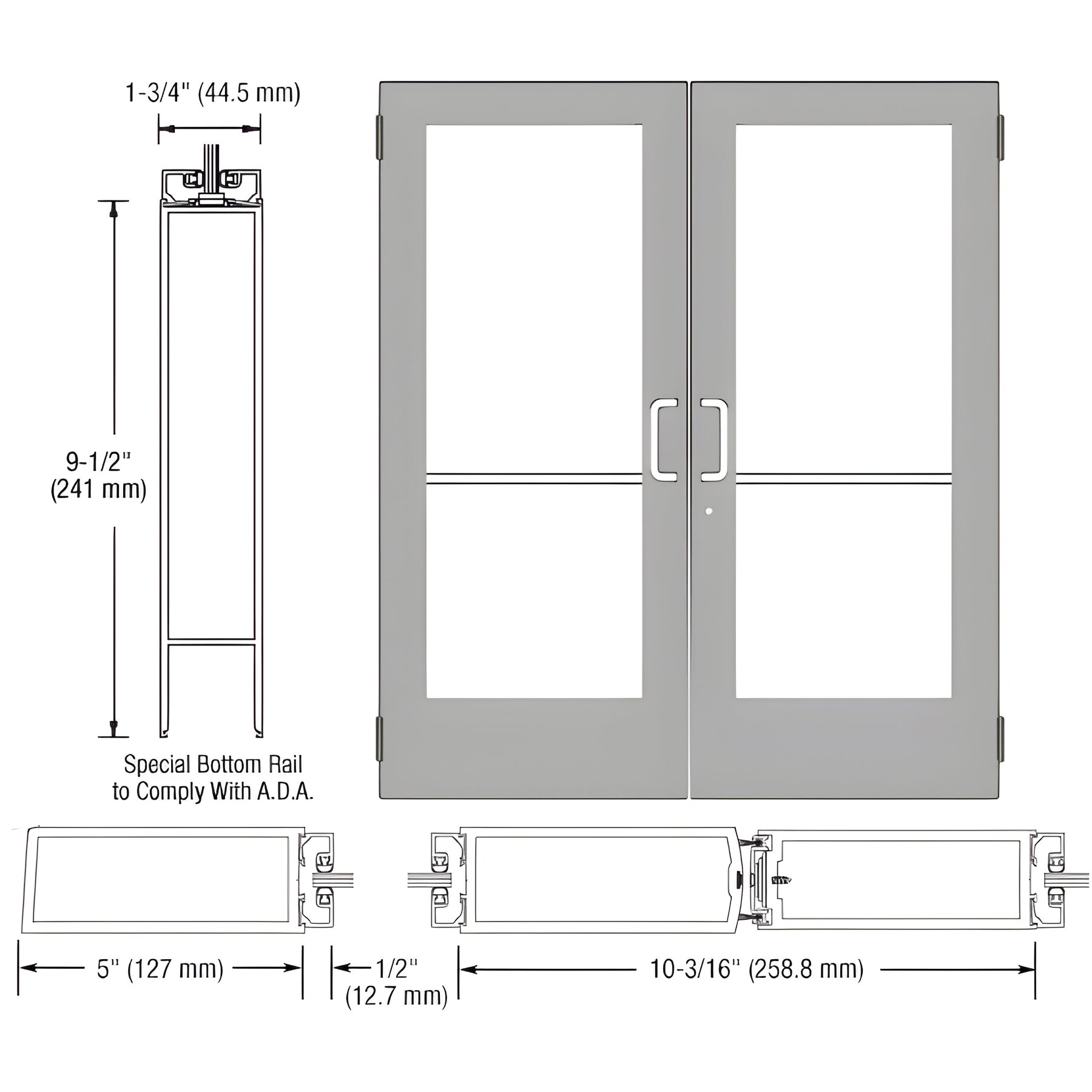

CRL-U.S. Aluminum 550 Clear Anodized Wide-Stile Butt Hinge Pair ADA

• Includes active and inactive leaf with all standard hardware (handles/pivots boxed separately)
• Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit accepted (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept a wide range of optional hardware applications

This CRL Custom Wide Stile Entrance Door (SKU CD52511) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial and architectural use, it ships ready for standard butt-hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Custom fabrication options allow integration of specialty locking, panic, or automatic operators for a tailored tempered glass door solution.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent transit damage.

Key differentiators: heavy-duty wide stile construction, ADA-compliant bottom rail, ready for 1/4" tempered glass or 1" insulating units, and custom fabrication for specialty hardware. Order SKU CD52511 or contact CRL for custom options and lead times.
