CRL-U.S. Series 550 Aluminum Butt Hinge, Clear Anodized, ADA/Title 24

• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. for accessible commercial entrances
• Custom fabricated to accept a wide range of optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1/4" (6 mm) tempered glass (by others) with optional 1" (25 mm) tempered insulating unit—glass not included

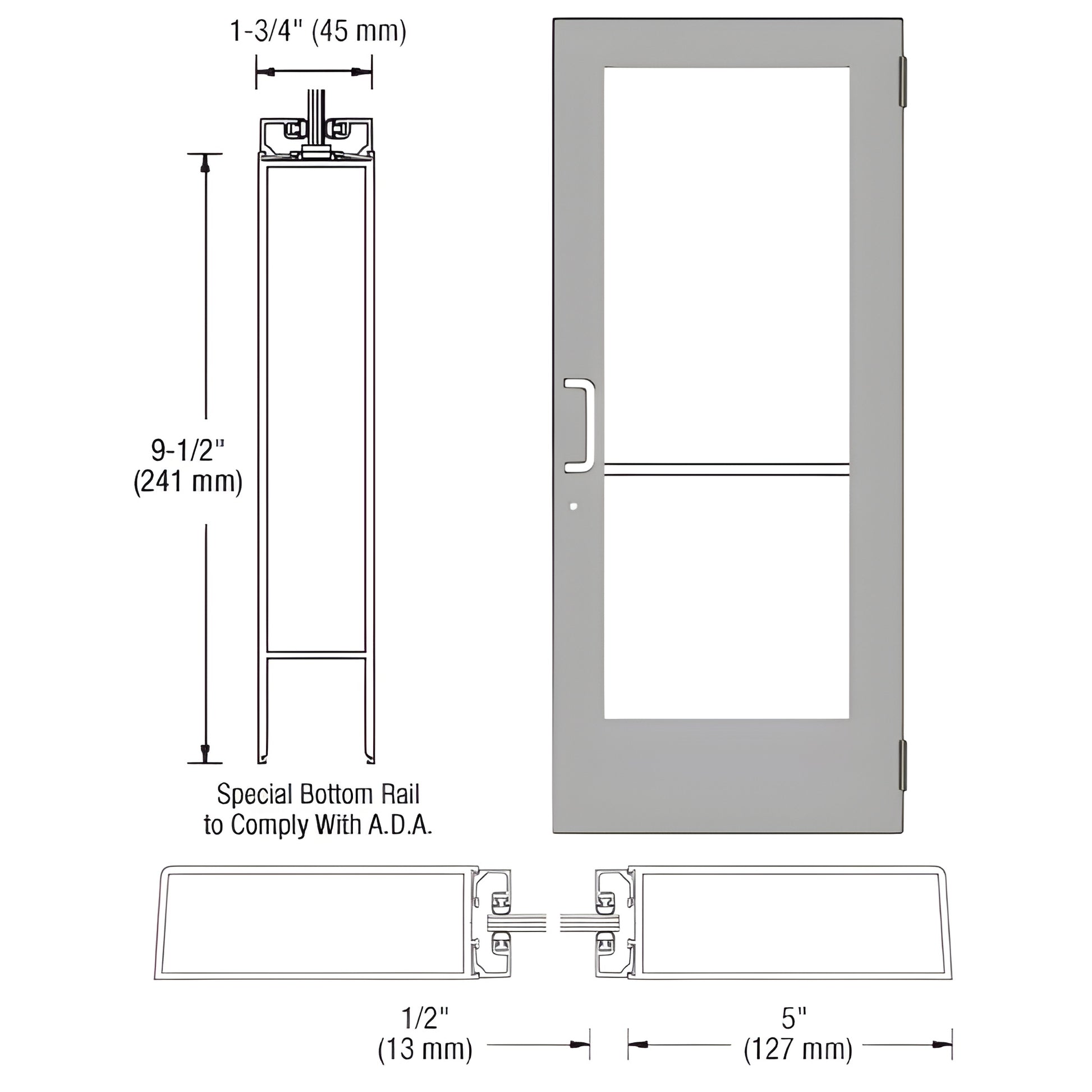

This CRL Custom Wide Stile Entrance Door (SKU CD51511) features heavy-duty 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial storefronts and institutional entrances, the door ships ready for butt hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass. It is custom-ready for additional hardware options to meet specific project requirements.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Order SKU CD51511 or contact CRL Customer Service for exact weight, shipping details, and custom hardware options.
