CRL-U.S. Aluminum Custom 550 Kynar Wide-Stile Geared-Hinge Door
CRL-U.S. Aluminum Custom 550 Kynar Wide-Stile Geared-Hinge Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC51971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- 6-1/2" (165 mm) bottom rail

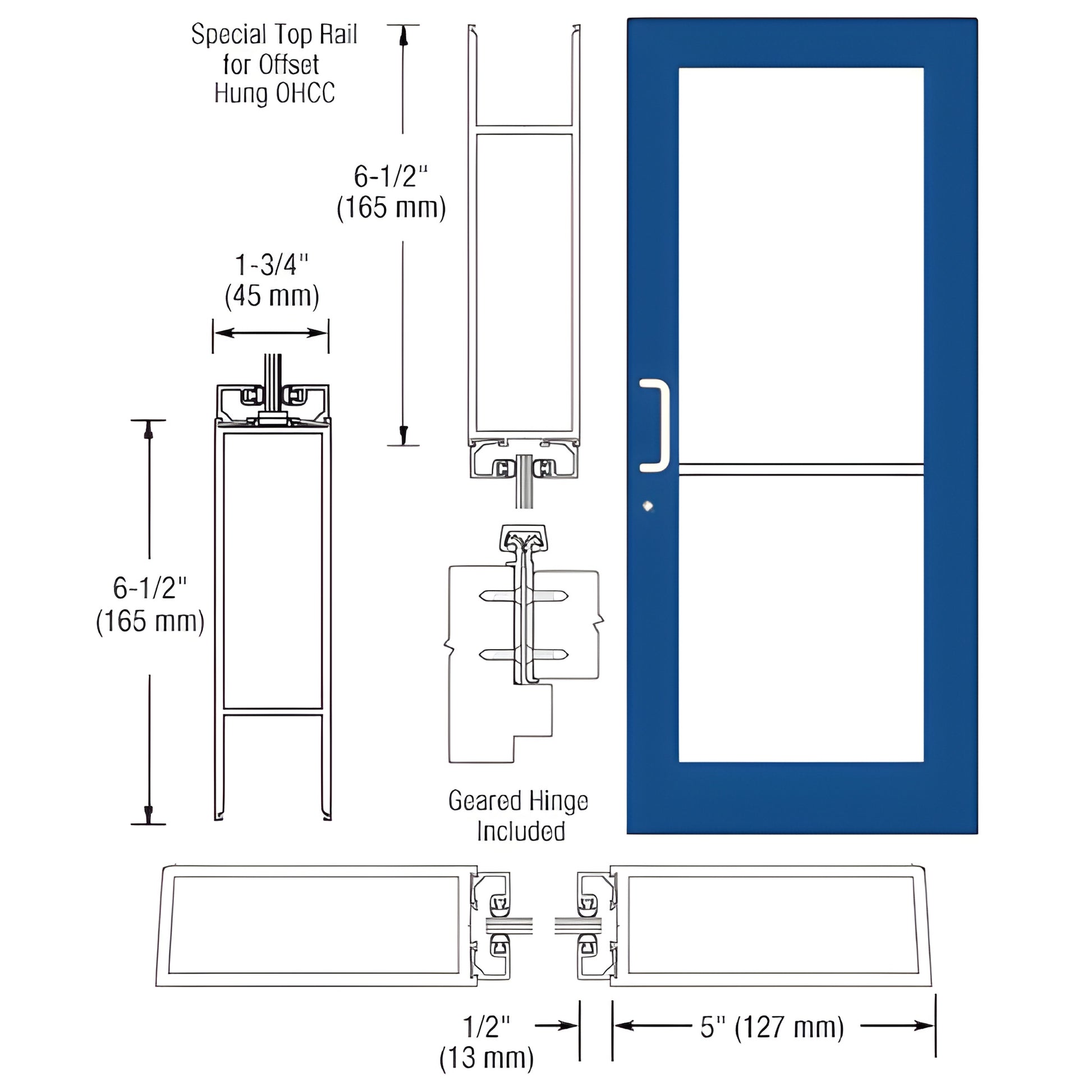

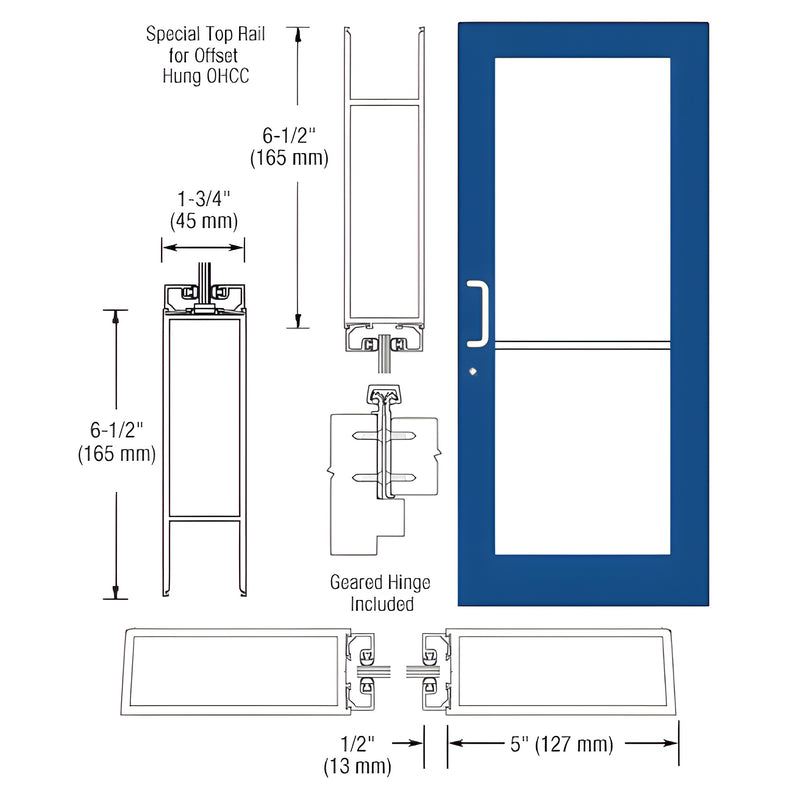

Custom Wide Stile Entrance Door (SKU: DC51971) — Built for commercial and institutional openings, this door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard preparations include stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Designed for custom fabrication to accept a wide range of optional hardware applications, DC51971 is ideal when you need a customizable, heavy‑duty entrance solution.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order the custom wide stile entrance door DC51971 today or contact CRL for a quote and customization options.
Specifications
BIM Objects - rvt
