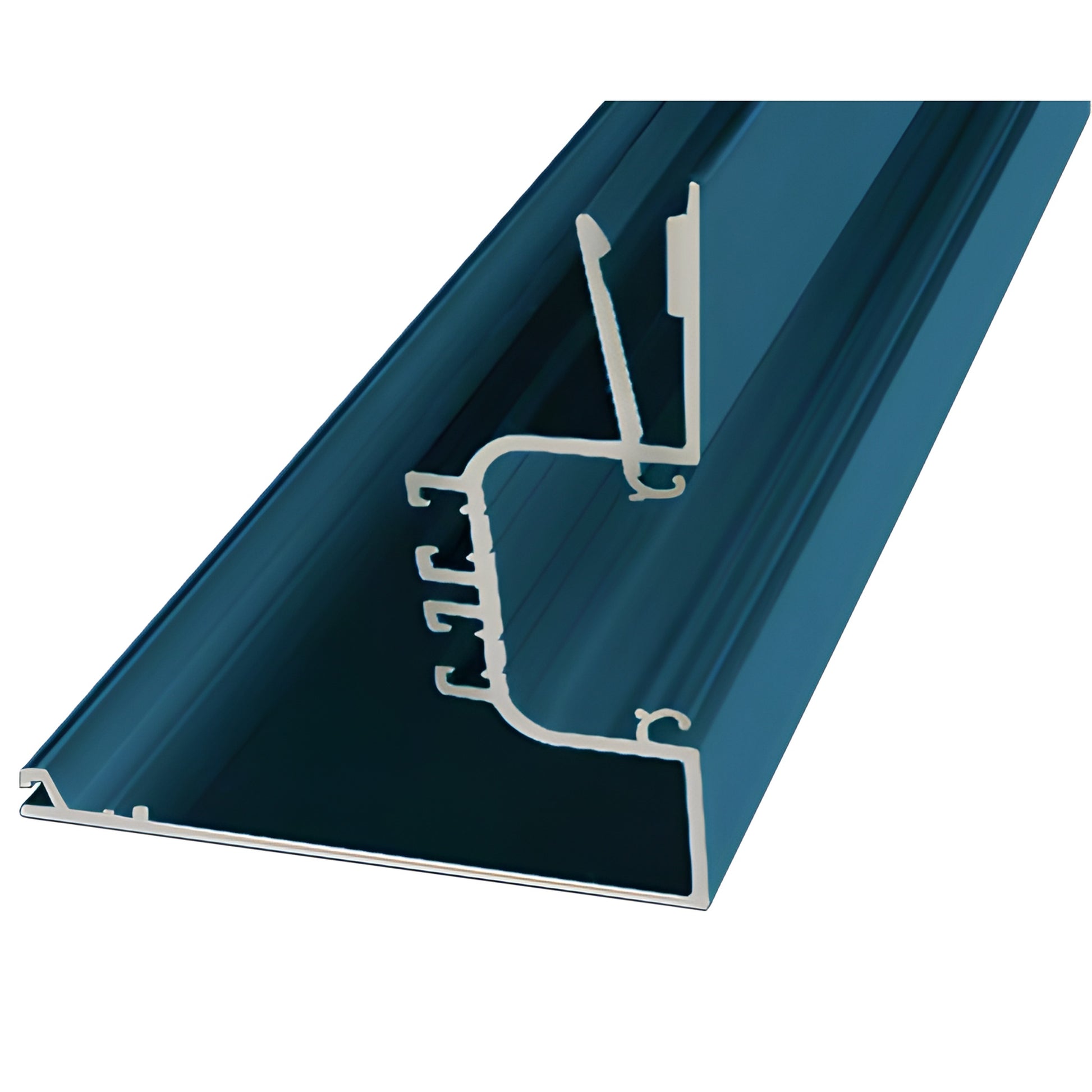

CRL-U.S. Aluminum KYNAR® 90° Female Mullion Corner Dual Thermal 24'3"

CRL-U.S. Aluminum KYNAR® 90° Female Mullion Corner Dual Thermal 24'3"

$561.74 CAD
$561.74 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 45XVG71
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Dual polyurethane thermal breaks for improved energy efficiency
  • Screw spline or shear block assembly for fast, installer-friendly installation
  • 1" (25 mm) glazing infills compatible with low-E insulating glass
  • Available in anodized or painted finishes
  • 2" x 4-1/2" (50.8 x 114.3 mm) thermal frame

The ArcticFront™ Series 45X High Performance Storefront System (SKU: 45XVG71) is an NFRC-rated thermal storefront solution that combines thermal performance with traditional storefront installation features. U-factors range from approximately 0.37 with 1" low-E insulating glass to as low as 0.19 with specially configured insulated glass units. The Series 45X pairs with ArcticFront™ Series 375-T high performance medium stile thermal doors and is compatible with all U.S. Aluminum thermal windows, making it a versatile choice for commercial storefront retrofit and new construction projects.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary based on monitor settings.


Differentiators: NFRC-rated thermal performance, dual polyurethane thermal breaks, installer-focused screw spline or shear block assemblies, and compatibility with U.S. Aluminum thermal windows.

Contact CRL or your local distributor to specify ArcticFront™ Series 45X (45XVG71) for your next storefront project.
