CRL-U.S. Aluminum IT451 Custom Size Kynar Finish Open-Back Butt Hinge

CRL-U.S. Aluminum IT451 Custom Size Kynar Finish Open-Back Butt Hinge

$1,855.81 CAD
$1,855.81 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 1B71571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Aluminum threshold included
  • Custom size — built to order

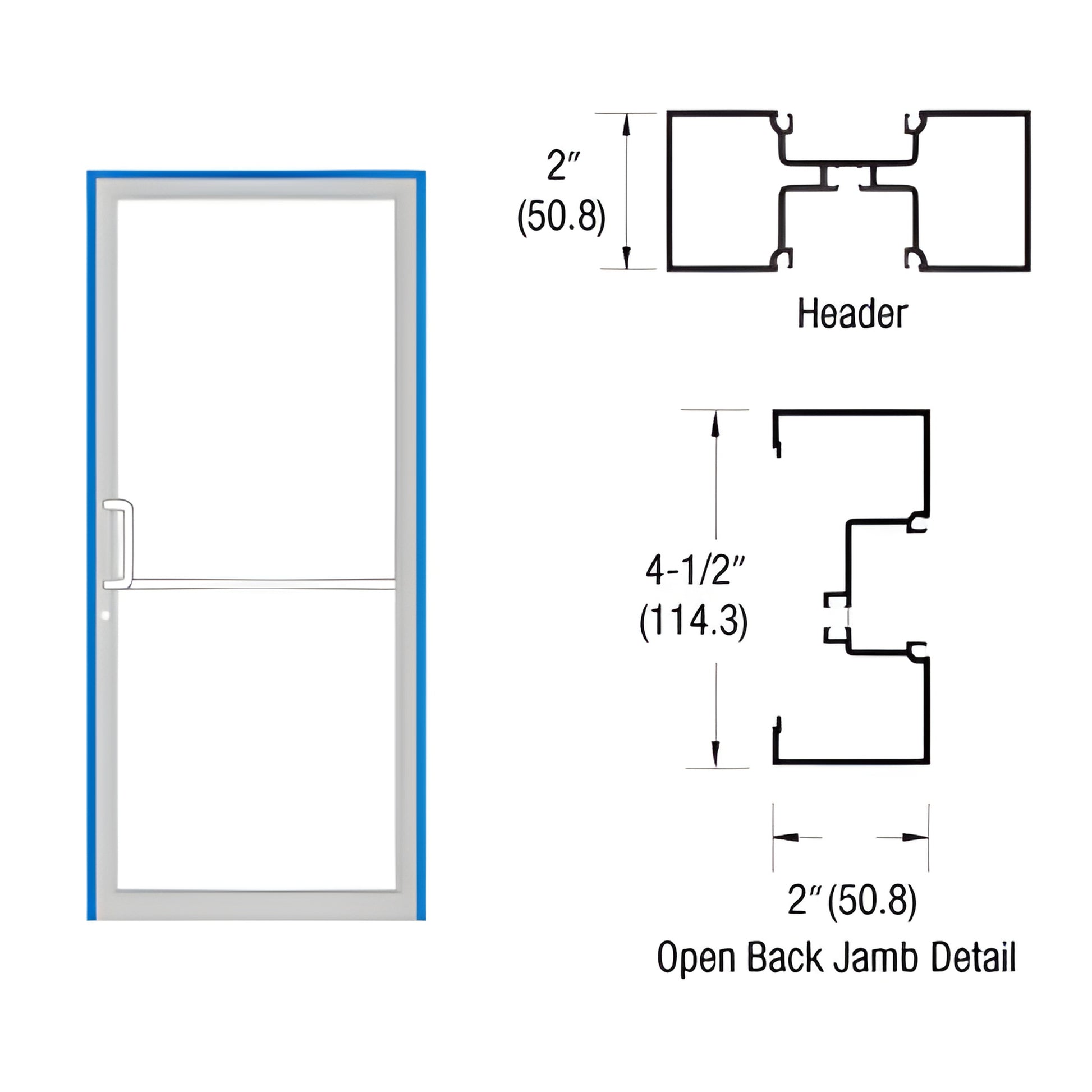

  • 2" x 4-1/2" (50.8 x 114.3 mm) up-and-over frame with open back jambs

Complete Frame — Built for a 36" x 84" base butt-hinge 1-3/4" door with provisions for a surface-mount closer. Constructed using 1T442 open back jambs and a 1T422 header. Includes DS051 door stops for 1-3/4" doors, weatherstrip, standard hardware, and hardware preparations for fast, on-site installation.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths under 40" (1.0 m) may not meet A.D.A. inspection requirements.

Key differentiators: precision-built custom aluminum door frame with open back jambs for easy wiring and hardware access, integrated weatherstrip and door stops for improved seals, and factory hardware preparation to reduce on-site labor. Ideal for commercial door retrofit and custom door openings where a surface-mount closer is required.

SKU: 1B71571

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs and complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.


Order this custom aluminum door frame (SKU 1B71571) or contact CRL Customer Service for a quote and lead time.
