CRL-U.S. Aluminum S250 Narrow Stile 72x84 Kynar Door Pair Butt Hinge
CRL-U.S. Aluminum S250 Narrow Stile 72x84 Kynar Door Pair Butt Hinge
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD22571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications

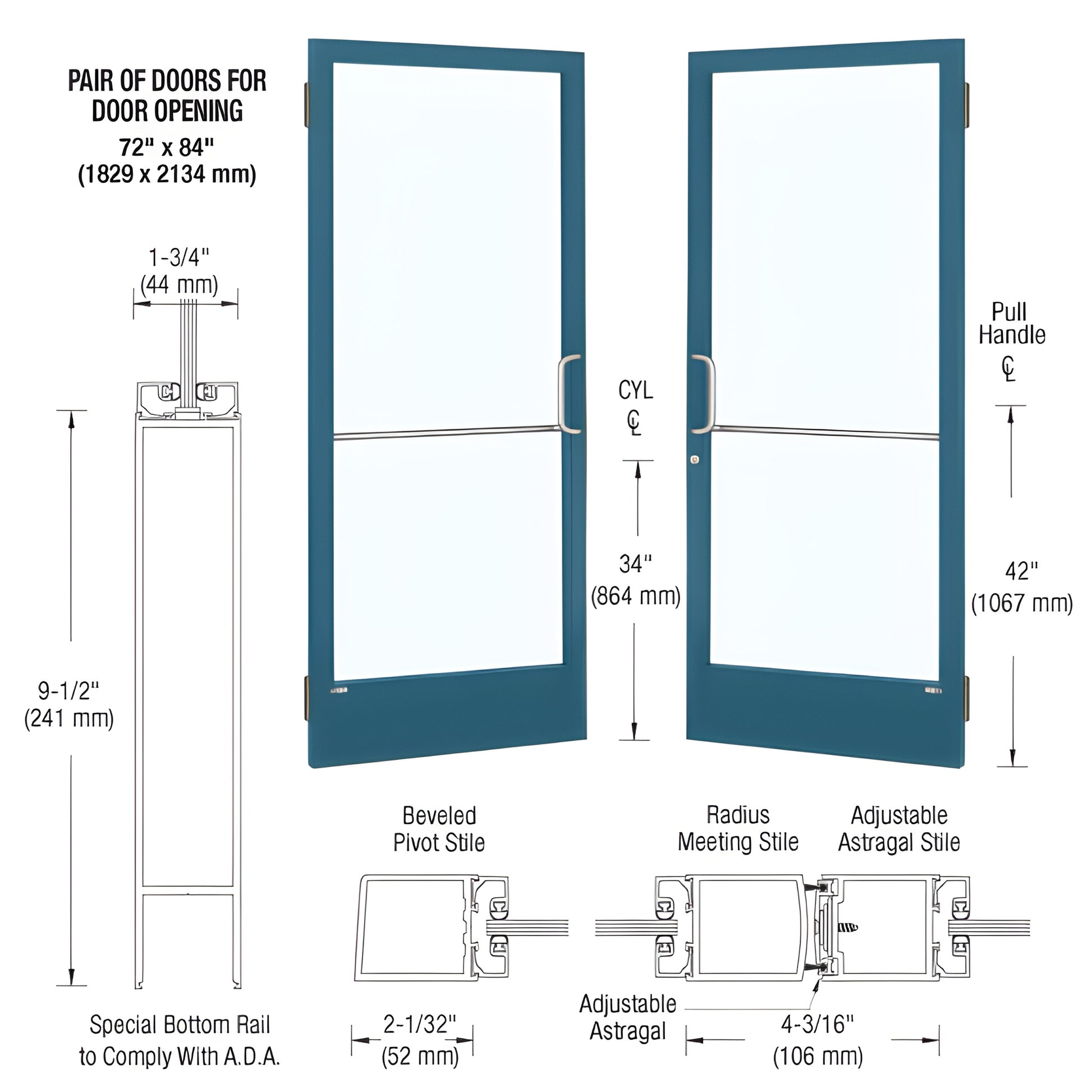

This CRL Custom Narrow Stile Entrance Door (SKU: CD22571) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for narrow stile storefront and commercial entrance applications, it ships ready for butt hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass supplied by others. Custom fabrication options accommodate a wide range of optional hardware for specific commercial and retail storefront needs.
Note: protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Order CD22571 or contact CRL for custom hardware options and lead times.
Specifications
BIM Objects - rvt
