CRL-U.S. Aluminum Series 250 72x84 Narrow Stile Gear Hinge Entry Doors

• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (IGU)—glass sold separately
• Includes both active and inactive leaf plus all standard hardware
• 9-1/2" (241 mm) ADA-compliant bottom rail
• Custom fabricated to accept a wide range of optional hardware applications

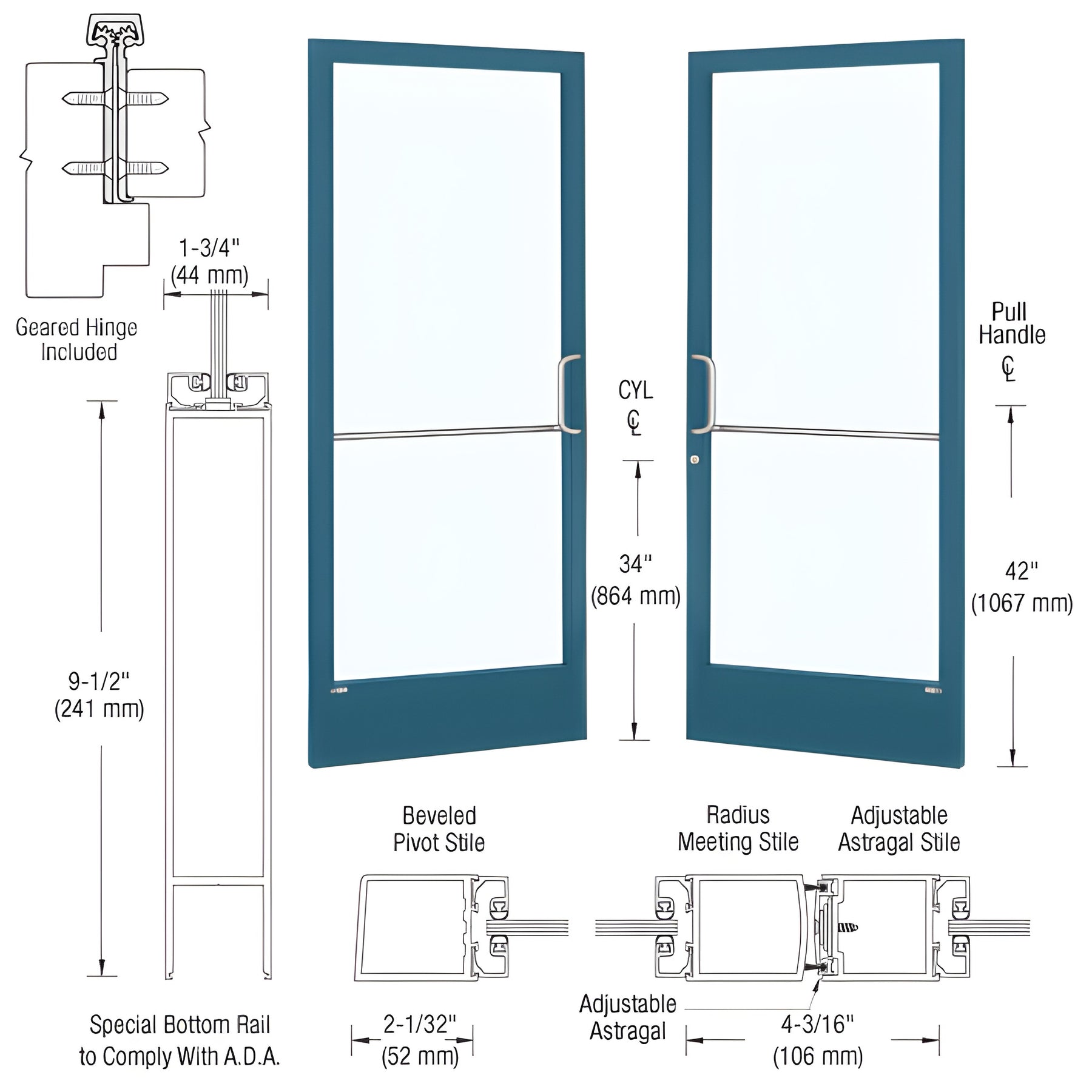

This CRL Custom Narrow Stile Entrance Door (SKU: CD22871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail and a 9-1/2" (241 mm) ADA bottom rail. Designed for commercial storefronts, the narrow stile frame accepts 1/4" tempered glass or a 1" insulated glass unit and includes stiles prepped for Gear Hinge hardware—ideal for custom narrow-stile entrance door installations and tempered glass door retrofits.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. The door is custom-fabricated to accommodate optional hardware applications for enhanced security and accessibility.


For pricing or lead times on SKU CD22871, contact CRL or add to your quote to begin your custom narrow stile entrance door order.
