CRL-U.S. Aluminum Series 400 Geared Hinge Entrance Door, Kynar Finish
CRL-U.S. Aluminum Series 400 Geared Hinge Entrance Door, Kynar Finish
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD42971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

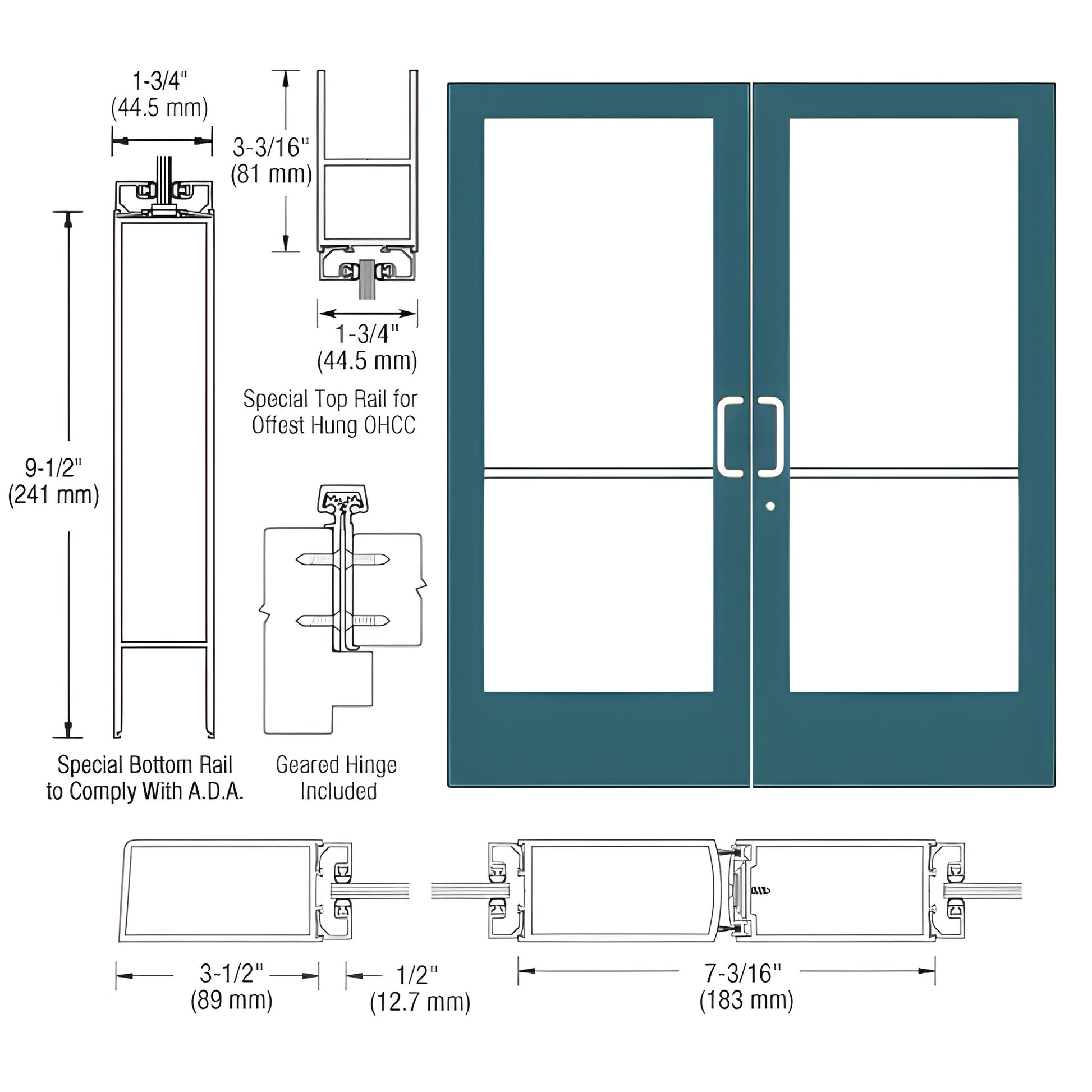

This CRL Custom Medium Stile Entrance Door (SKU: CD42971) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard construction includes stiles routed for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Designed for custom fabrication, this medium stile entrance door is ideal for commercial storefronts, office entries, and accessible entrances requiring optional hardware packages.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site.
Order SKU CD42971 for custom medium stile entrance doors or contact CRL for quotes and optional hardware configurations.
Specifications
BIM Objects - rvt
