CRL-U.S. Aluminum 400T KYNAR Butt Hinge Pair for Entrance Doors
CRL-U.S. Aluminum 400T KYNAR Butt Hinge Pair for Entrance Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D42471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with all standard hardware (handles and pivots boxed separately)
- Accepts 1" (25 mm) tempered insulating unit (glass not included)
- Standard 7-1/4" (184 mm) bottom rail; 10" (254 mm) bottom rail available for A.D.A. and Title 21 compliance
- Custom fabricated to accept a wide range of optional hardware applications

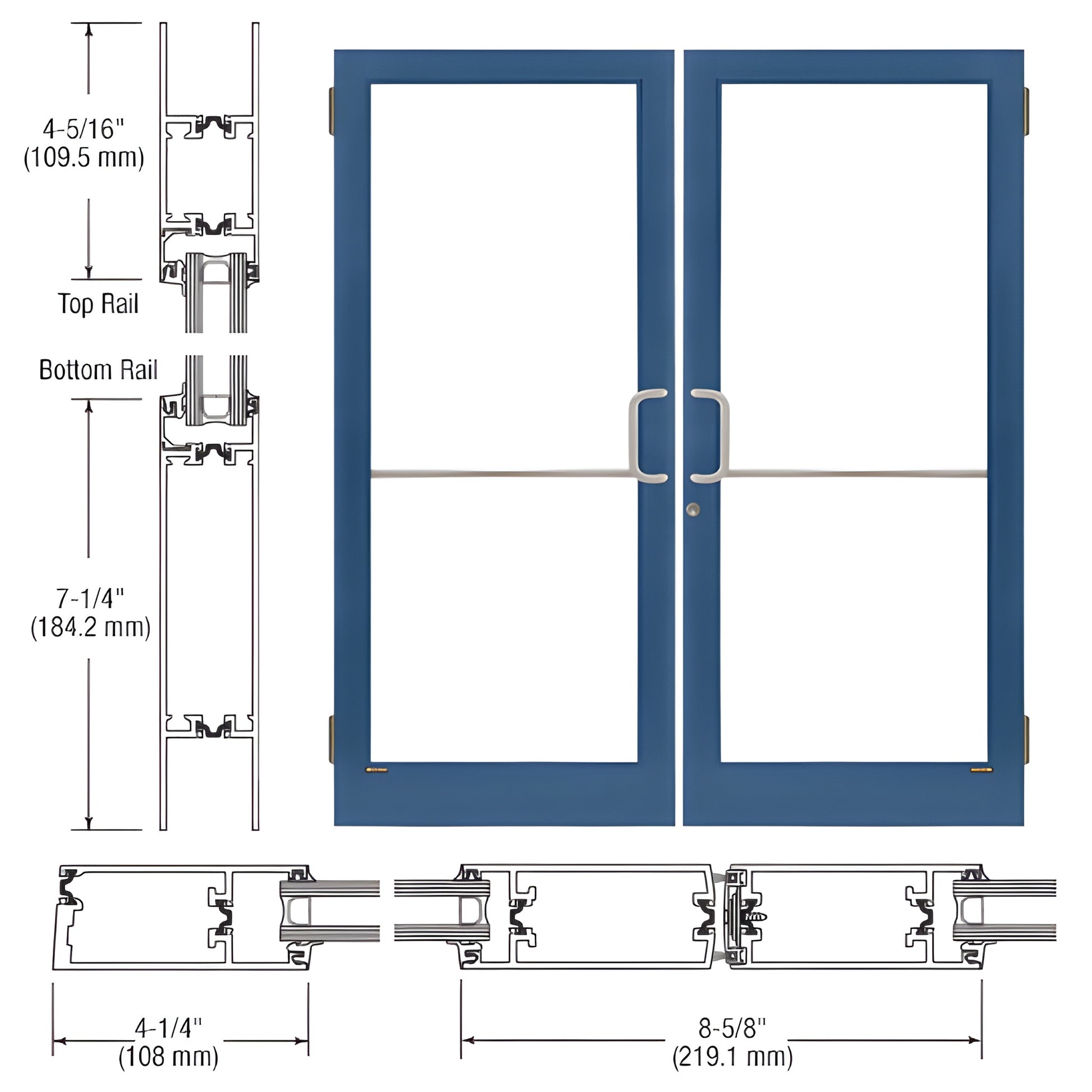

This CRL Custom Medium Stile Entrance Door features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Stiles are prepared for butt hinge hardware and include glass stops sized for 1/4" (6 mm) tempered glass (by others). Designed for commercial storefront and entrance applications, this custom aluminum medium-stile door is built to accommodate optional hardware and 1" insulated glass to improve thermal performance.
SKU: 1D42471
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent transit damage.
Why choose this door: Custom-fabricated for flexibility, compatible with 1" insulated glass, and available with ADA-compliant bottom rail options—ideal for commercial entrances and storefront retrofits.
Ready to specify? Contact CRL or add SKU 1D42471 to your project quote.
Specifications
BIM Objects - rvt
