CRL-U.S. Aluminum Custom KYNAR® Paint Custom Single 36" x 84" Series 400T Medium Stile Gear Hinge Entrance Door

Product Details

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
• 7-1/4" (184 mm) Bottom Rail
• 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
• Custom Fabricated to Accept Optional Hardware Applications

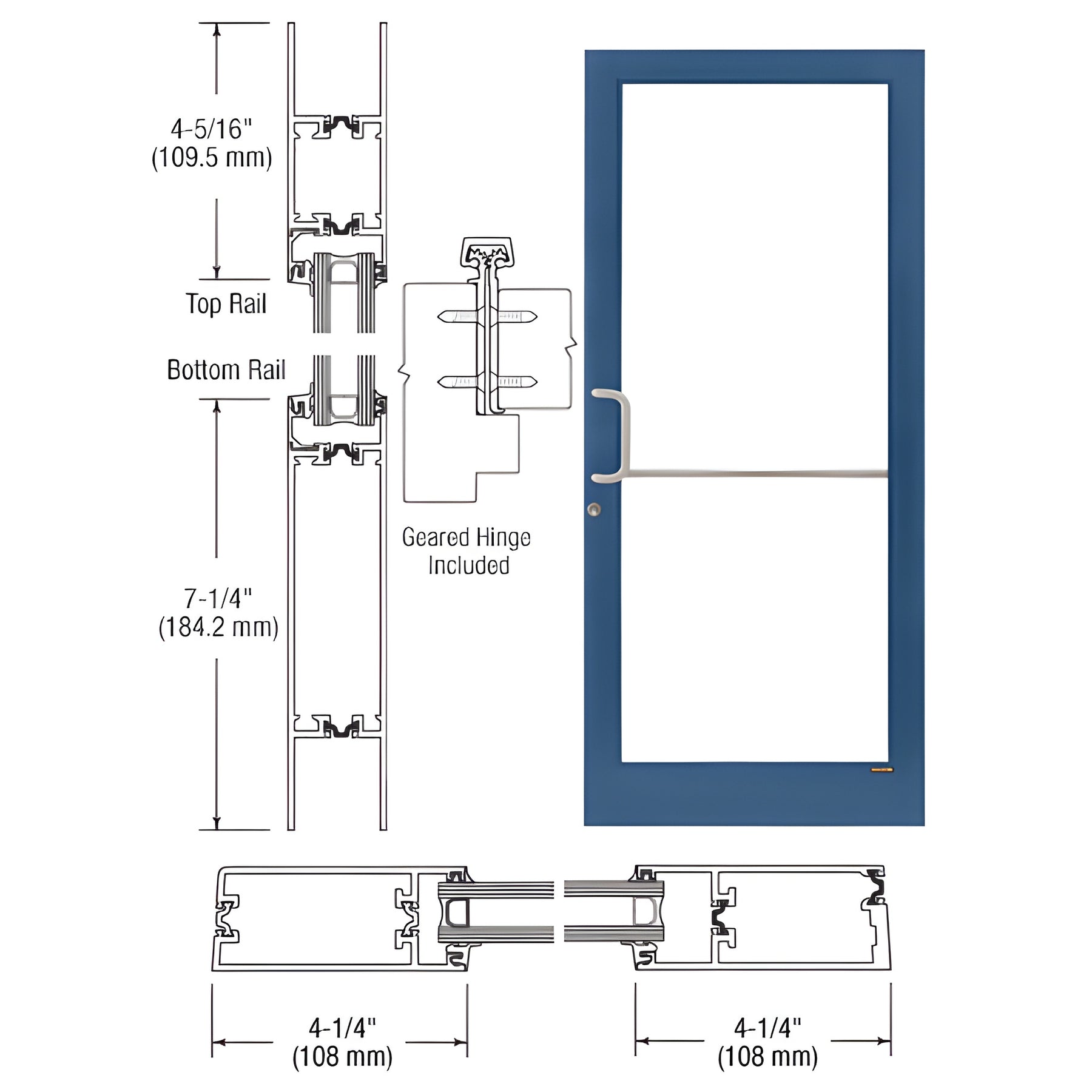

This CRL Custom Medium Stile Entrance Door is built with 4-1/4" (108 mm) Stiles, 4-5/16" (110 mm) Top Rail, and 7-1/4" (184 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
