CRL-U.S. Aluminum Series 250 Narrow Stile Entrance Door — Geared Hinge, KYNAR®

• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) ADA-compliant bottom rail for accessibility
• Custom-fabricated to accept a wide range of optional hardware applications

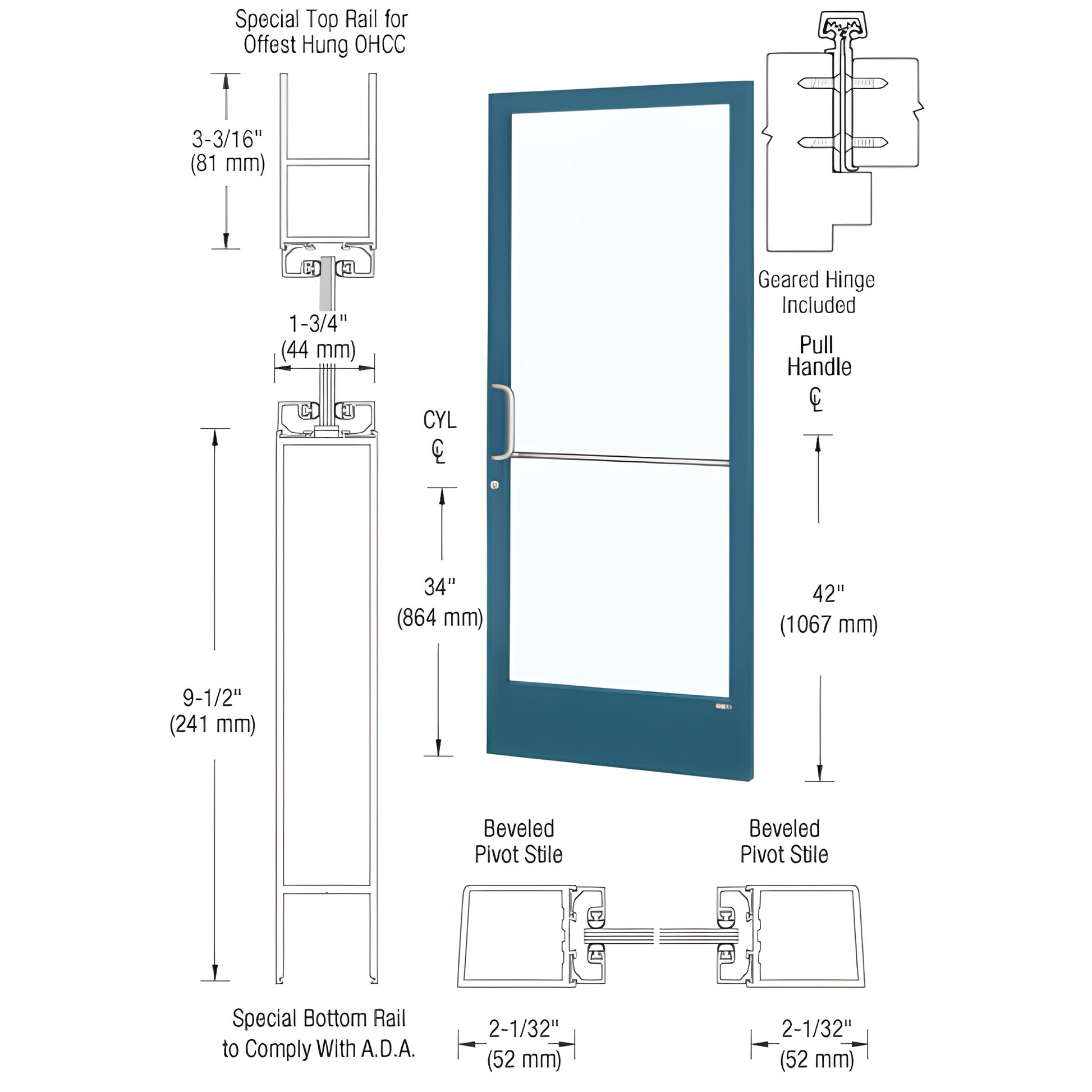

This CRL Custom Narrow Stile Entrance Door (SKU: CD21971) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard configuration includes stiles for gear hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Doors are ready for custom fabrication to accommodate commercial storefront hardware options and specialty glazing systems.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

Order the CRL Custom Narrow Stile Entrance Door (CD21971) for a customizable, ADA-aware commercial entrance solution — contact us to configure your hardware and glazing options.
