CRL-U.S. Aluminum 250 Narrow-Stile Geared-Hinge Door - KYNAR, Closer
CRL-U.S. Aluminum 250 Narrow-Stile Geared-Hinge Door - KYNAR, Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD21871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- 9-1/2" (241 mm) ADA‑compliant bottom rail
- Custom fabricated to accept a wide range of optional hardware applications
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulated glass unit (glass not included)

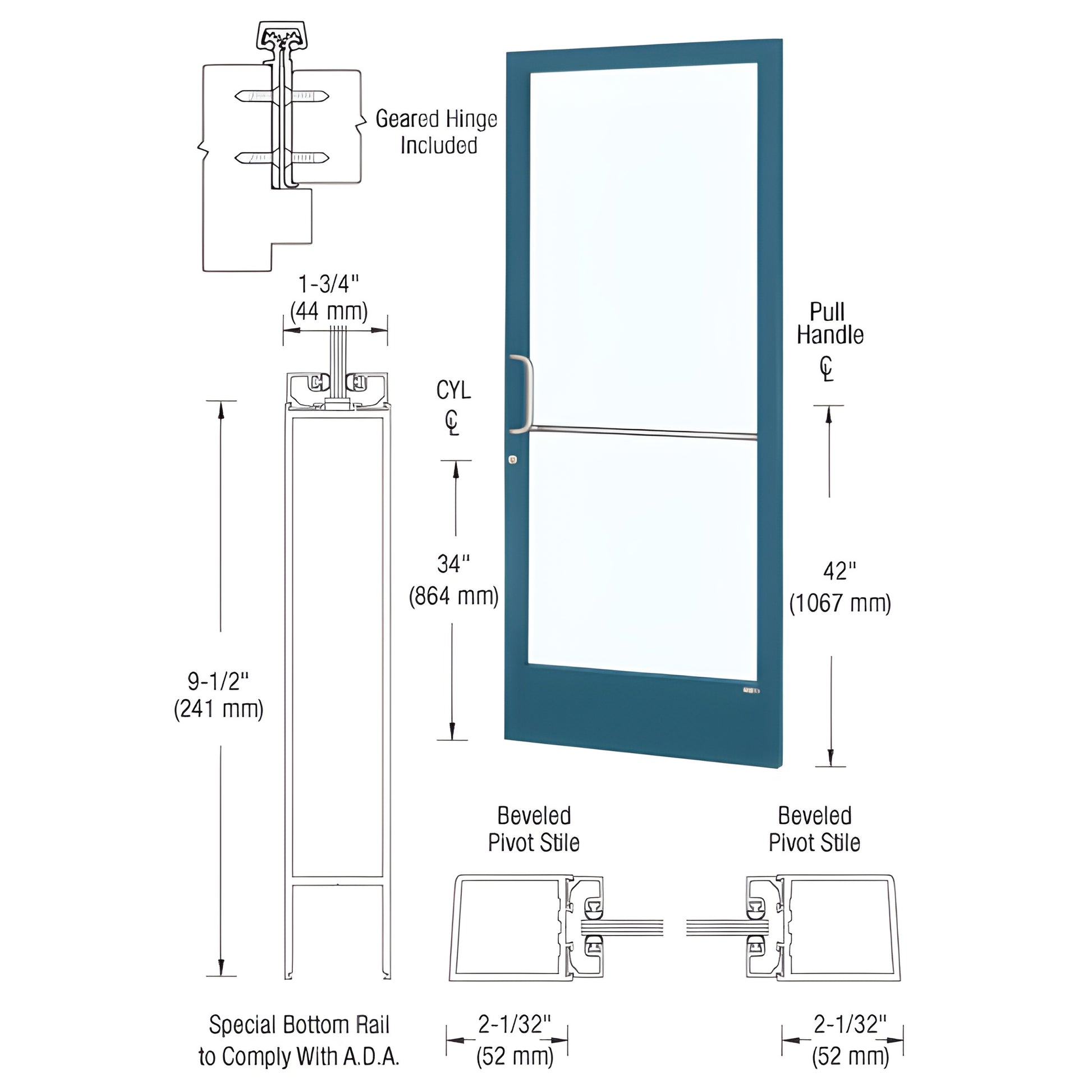

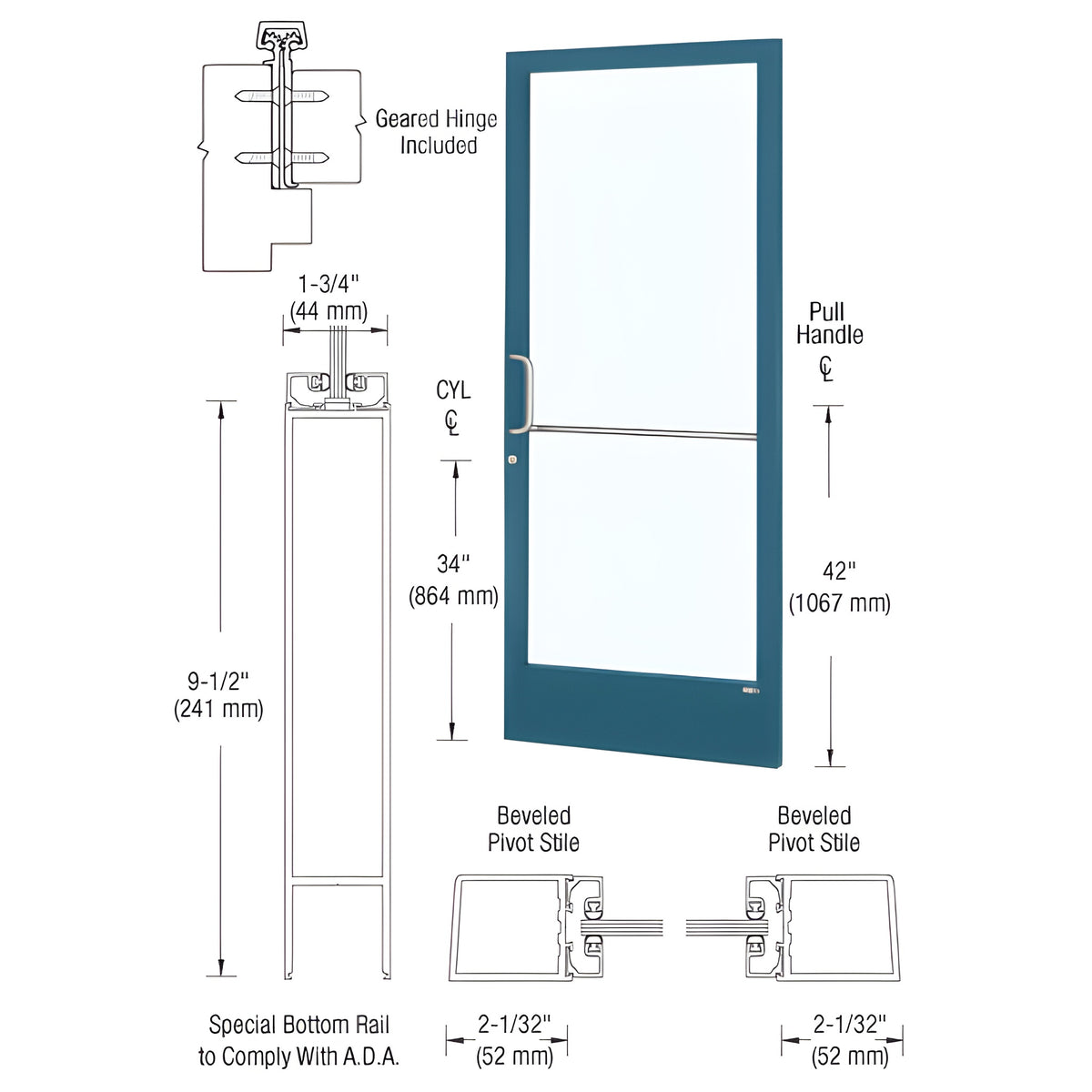

This CRL Custom Narrow Stile Entrance Door (SKU CD21871) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA‑compliant bottom rail. Standard design includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Door is ready for custom fabrication to accommodate optional commercial hardware packages.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
Order the CRL Custom Narrow Stile Entrance Door (CD21871) for ADA‑conscious commercial entries—contact CRL to request exact shipping weight or to discuss optional hardware and insulated glass upgrades.
Specifications
BIM Objects - rvt
