CRL-U.S. Aluminum 250T Narrow Stile Thermal Door, Kynar, Butt Hinge

• 4-5/16" (110 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)

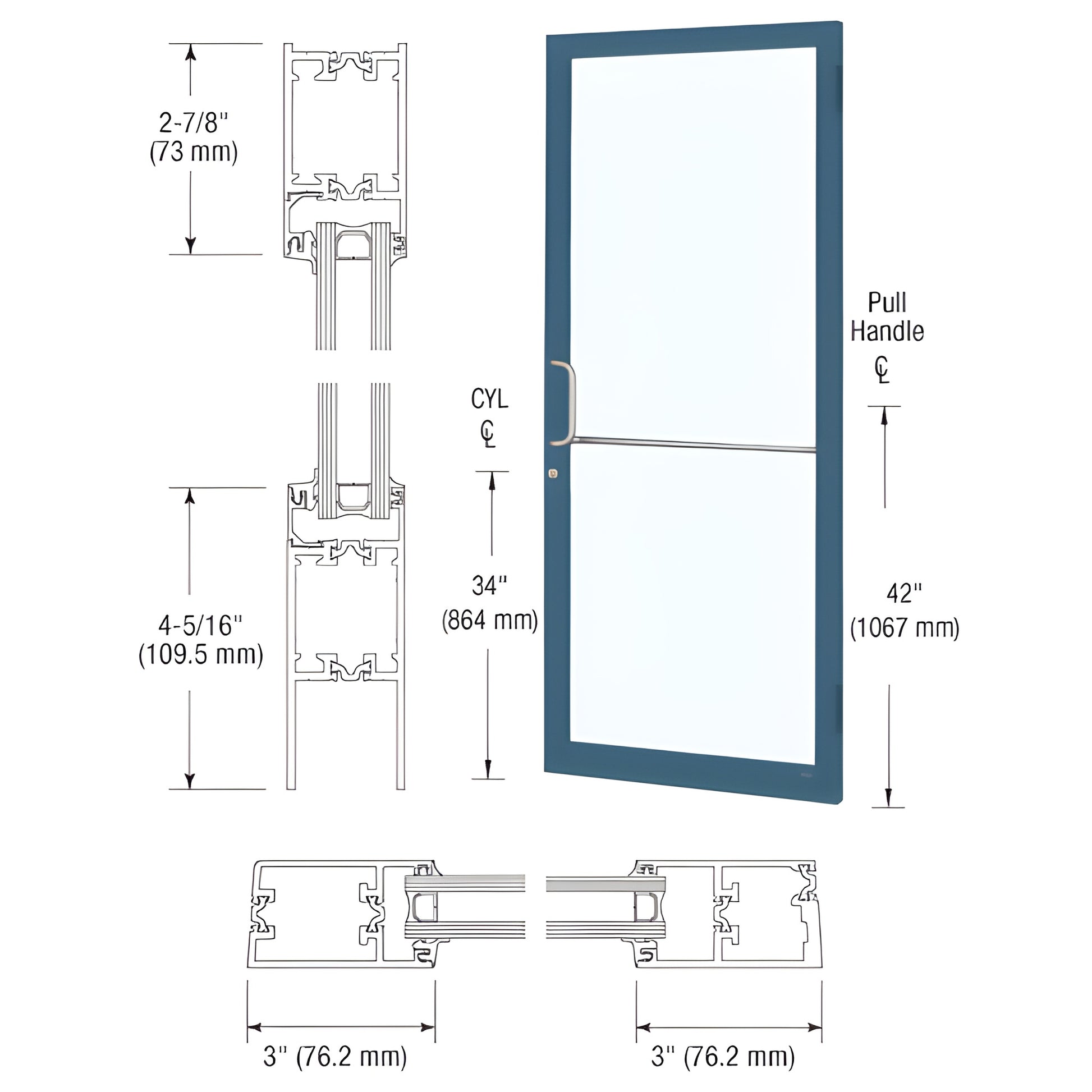

This CRL Custom Narrow Stile Entrance Door (SKU: 1D21571) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. It ships ready for butt hinge hardware, with glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication, this narrow stile entrance door is compatible with a wide range of optional hardware—ideal for storefronts and commercial entrance applications that require tailored configurations.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Doors under 36" (914 mm) wide may not meet A.D.A. inspection requirements.

Key differentiators: narrow stile construction for sleek storefront appearance, optional 10" bottom rail for ADA/Title 24 compliance, and custom fabrication to accept a broad range of commercial hardware.

Order SKU 1D21571 or contact CRL for custom hardware options and quoting.
