CRL-U.S. Aluminum Custom KYNAR® Paint Custom Single Series 250T Narrow Stile Geared Hinge Thermal Entrance Door for Surface Mount Door Closer
Item# 1D21871
Shipping Weight:
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight:
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- 4-5/16" (110 mm) Bottom Rail
- 10" (254 mm) Bottom Rail available for A.D.A. and Title 24/21 compliance
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)

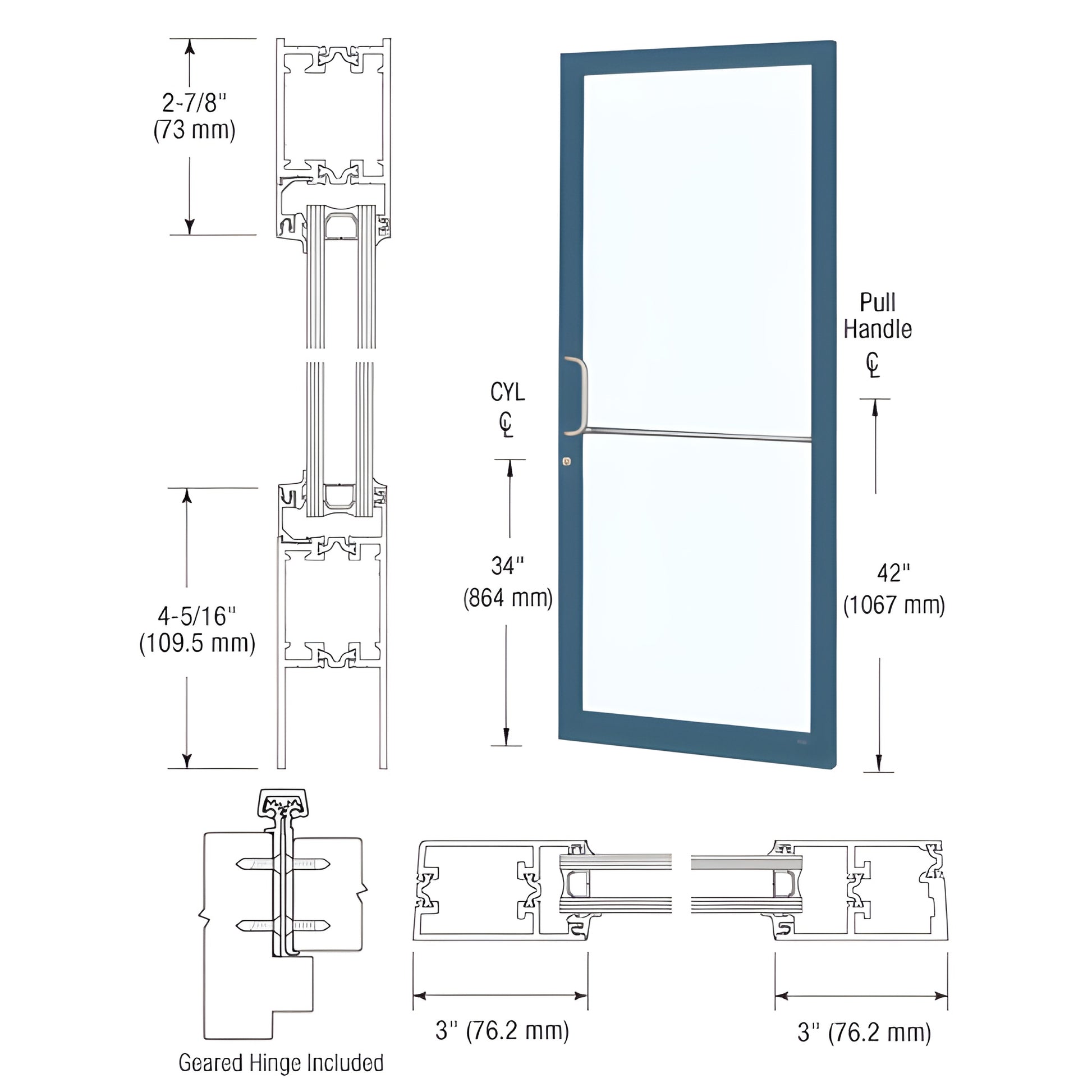

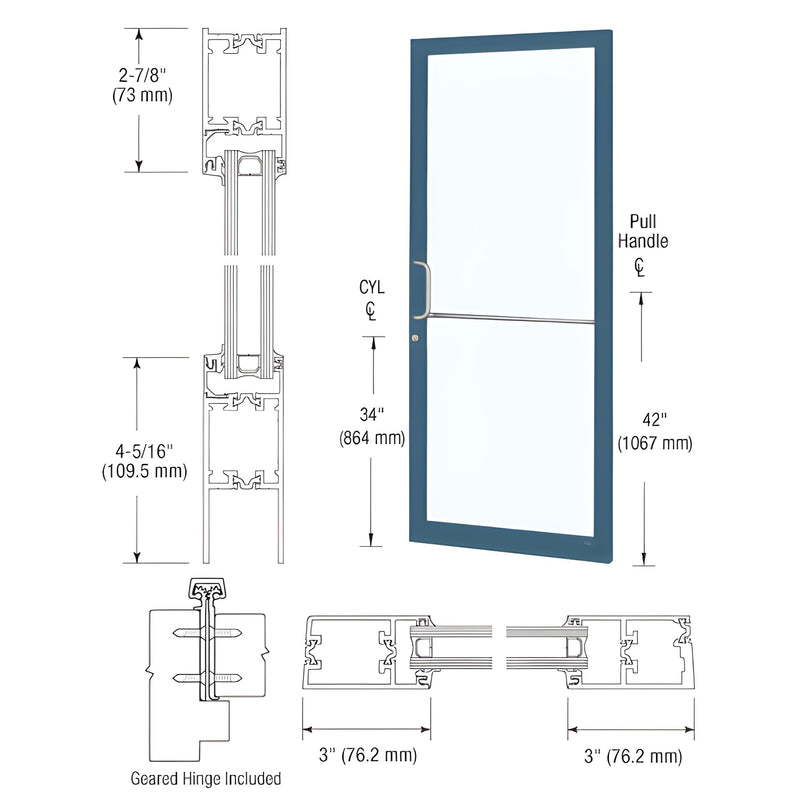

This CRL Custom Narrow Stile Entrance Door (SKU: 1D21871) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Designed for commercial storefronts and high-traffic entrances, it ships ready for gear hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (by others). The door is built for fast custom fabrication to accept a wide range of optional hardware for ADA-compliant and energy-efficient projects.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on-site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images represent the actual product or a close representation; colors may vary by monitor settings.
Order this durable, customizable narrow stile entrance door for commercial storefronts today—contact us for a quote or to confirm ADA/Title 24 requirements.
