CRL-U.S. Aluminum Series 400 Single Butt-Hinged Entrance Door, Kynar
CRL-U.S. Aluminum Series 400 Single Butt-Hinged Entrance Door, Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD41471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

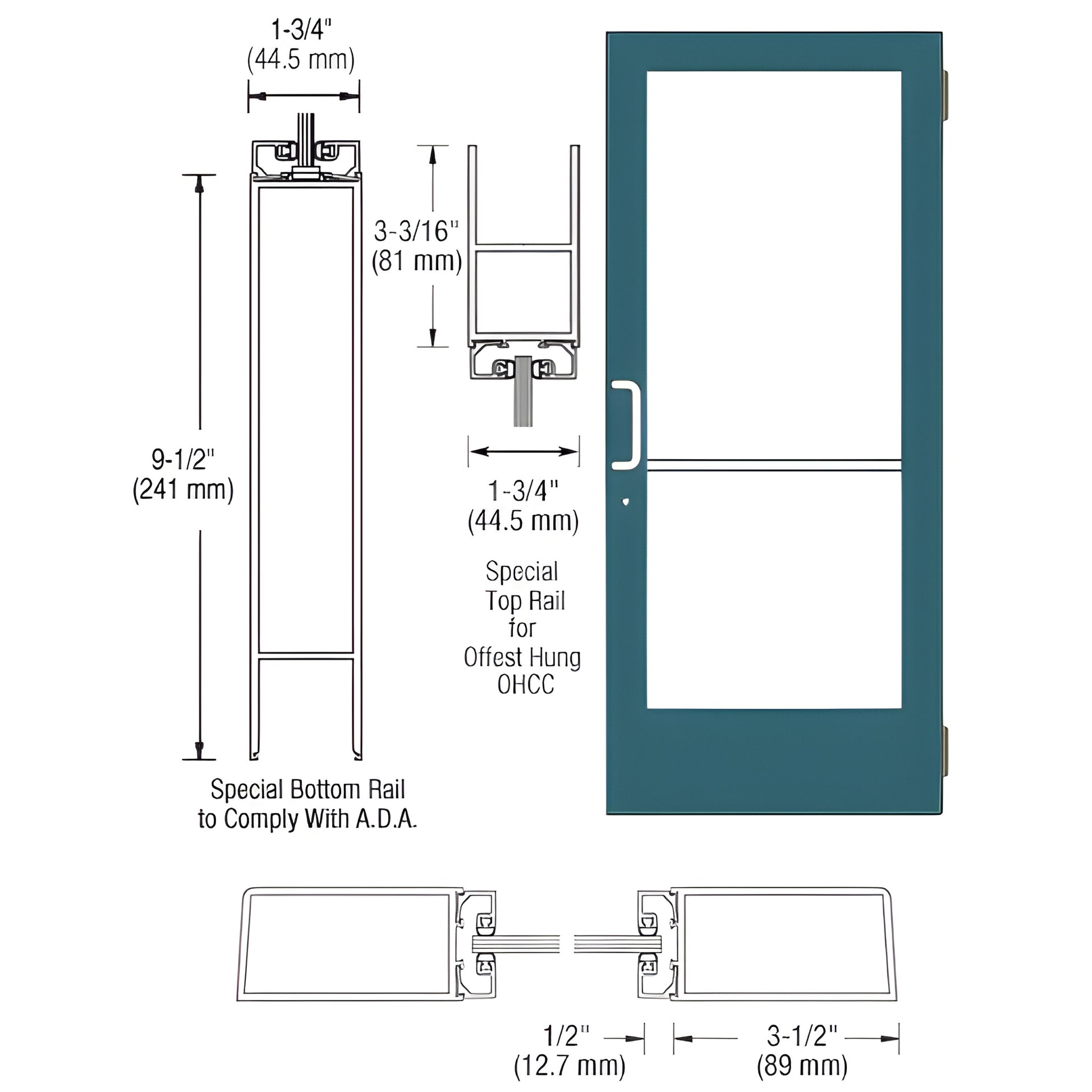

This Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Stiles are configured for butt hinge hardware and include glass stops sized for 1/4" (6 mm) tempered glass (by others). The door ships with protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage and requires customer installation.
Note: Door widths under 36" (914 mm) may not pass A.D.A. inspection. For exact shipping weight or freight costs, contact CRL Customer Service before ordering. Product images are representative; actual color may vary by monitor.
SKU: CD41471
Order or request a quote for this ADA-compliant custom entrance door today.
Specifications
BIM Objects - rvt
