Product Details
- Standard Butt Hinges and Concealed Vertical Rod Panic
- Tested for 1-4 PSI
- Accommodates 1-5/16" (33 mm) Insulating Laminated Glazing to Meet Project Specifications (Glass Not Included)
- 7-5/16" (186 mm) Bottom Rail
- Custom Fabricated to Accept Optional Hardware Applications

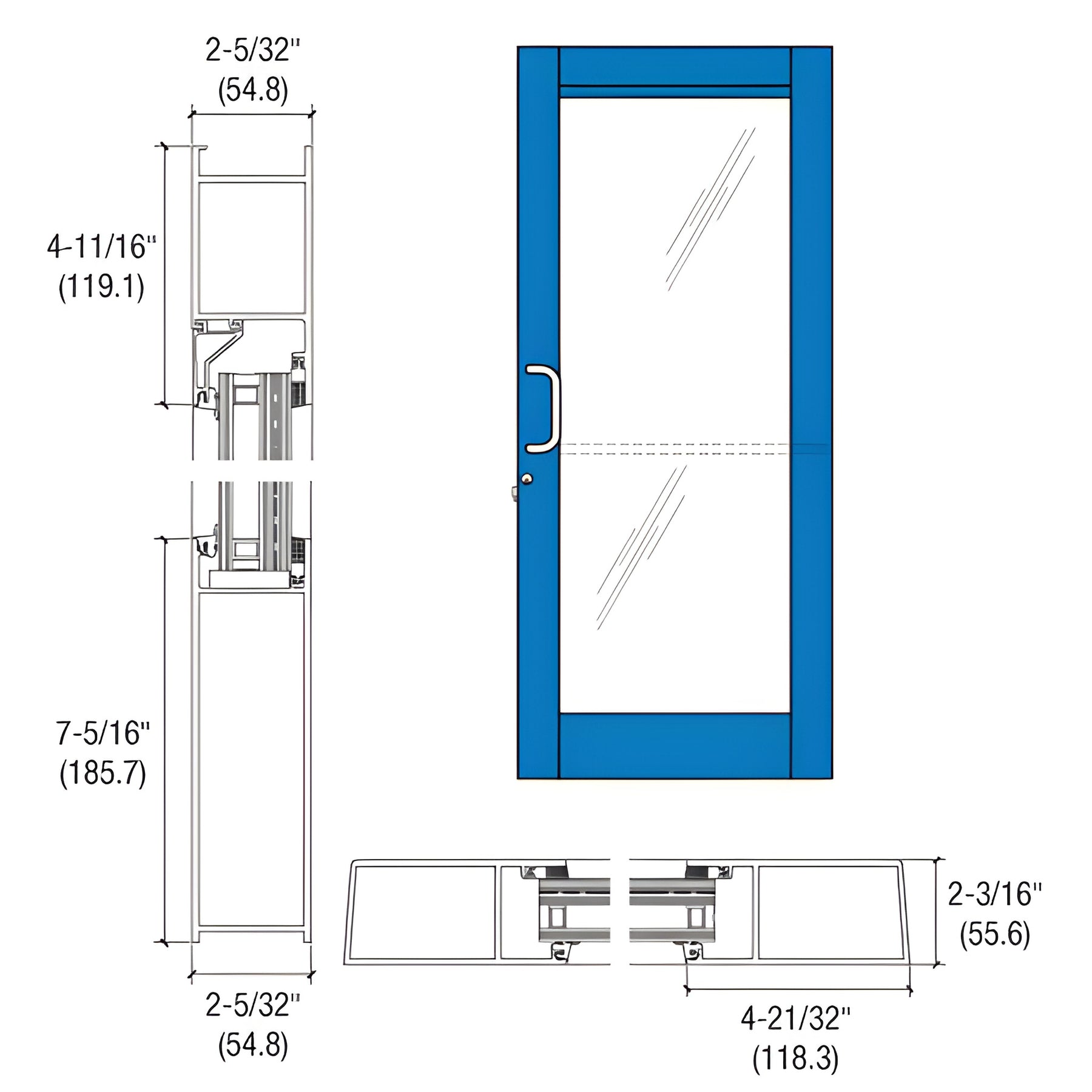

This CRL Custom Blast Resistant Entrance Door is built with 4-21/32" (118 mm) Stiles, 4-11/16" (119 mm) Top Rail, and 7-5/16" (186 mm) Bottom Rail. Standard features include stiles for Butt Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.
Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
