CRL-U.S. Aluminum Offset Pivot Narrow-Stile Doors - Custom KYNAR
CRL-U.S. Aluminum Offset Pivot Narrow-Stile Doors - Custom KYNAR
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD22171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications, including offset pivot systems
- Includes active and inactive leaf with all standard hardware
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass sold separately)

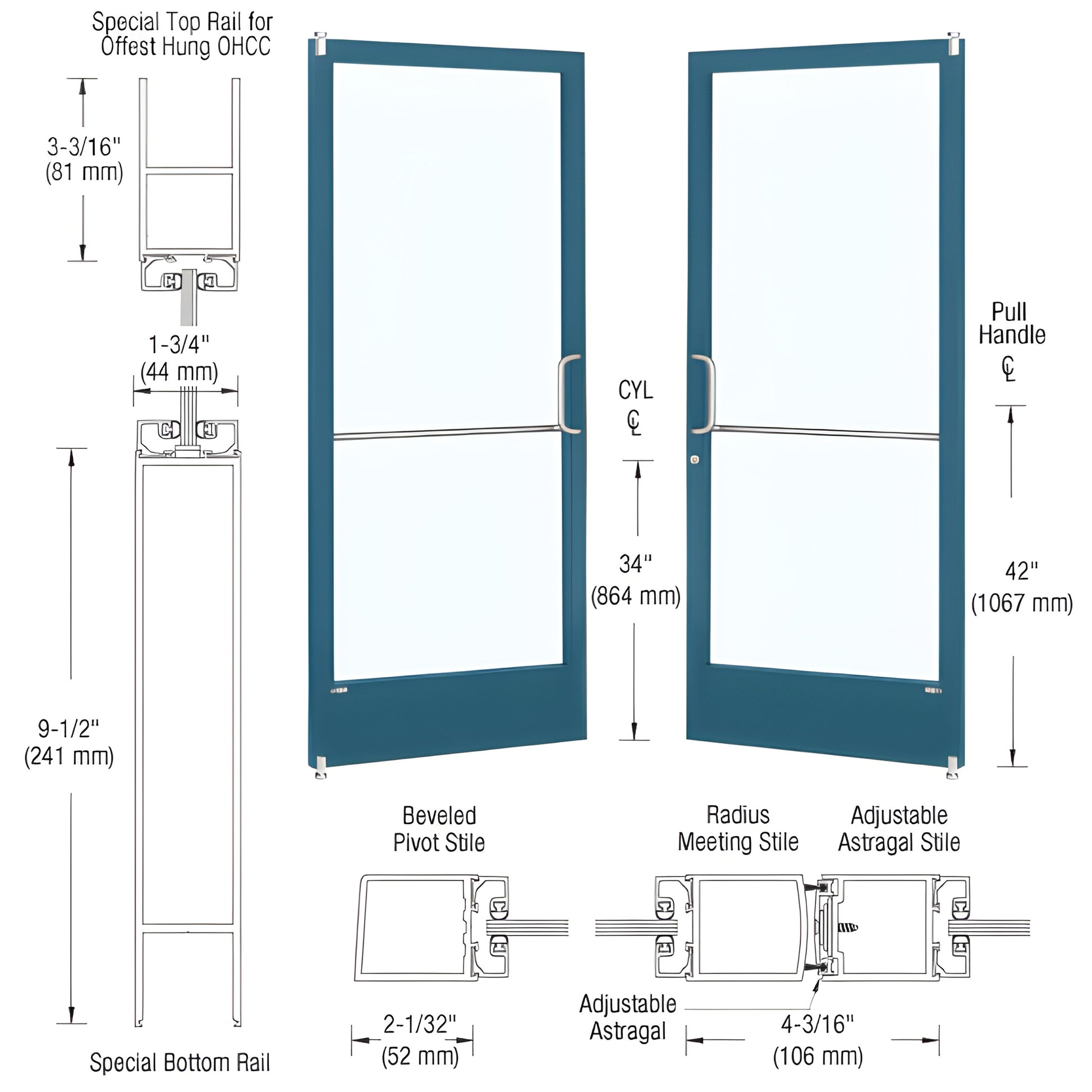

CRL Custom Narrow Stile Entrance Door (SKU: CD22171) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for narrow stile entrance door installations, it ships ready for on-site installation of boxed protruding hardware (handles, pivots, etc.) and is prepped with glass stops for 1/4" (6 mm) tempered glass. Custom fabrication options accommodate a wide range of optional hardware and offset pivot configurations for commercial entry systems.
Note: Glass is not included. Customer must install the included protruding hardware that is packed separately to prevent transit damage.
Ready to specify? Contact CRL for pricing and lead times.
Specifications
BIM Objects - rvt
