CRL-U.S. Aluminum 400T KYNAR Thermal Butt Hinge, Panic-Ready
CRL-U.S. Aluminum 400T KYNAR Thermal Butt Hinge, Panic-Ready
Regular price
$2,288.78 CAD
Regular price
Sale price
$2,288.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1Z42571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 7-1/4" (184 mm) Bottom Rail
- 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)

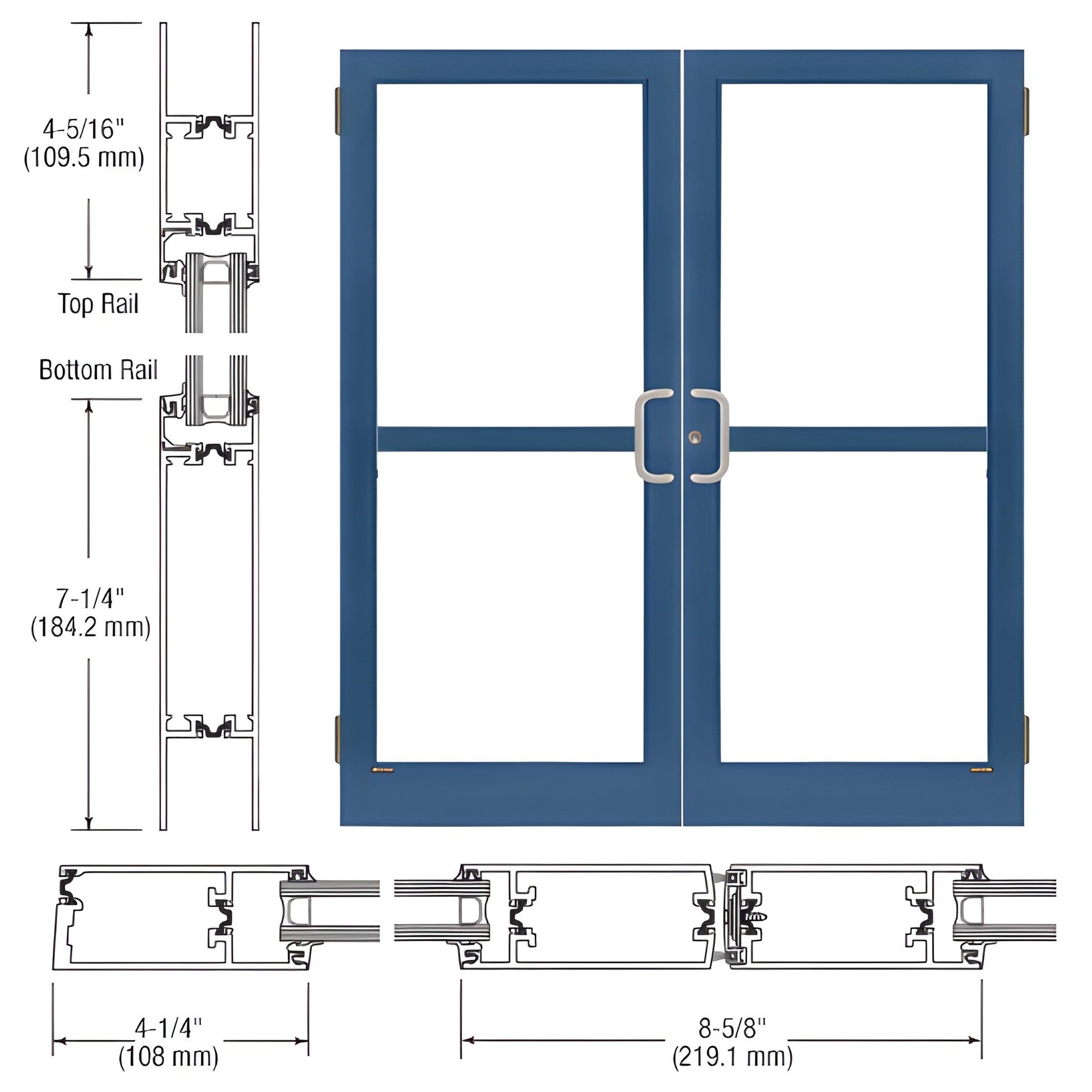

This CRL Custom Medium Stile Entrance Door (SKU: 1Z42571) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Designed for commercial entry use, it ships with stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware, making it ideal for projects that require concealed vertical rod panic hardware or ADA/Title 21 compliant bottom rails.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage.
Specifications
BIM Objects - rvt
