CRL-U.S. Aluminum IG500 KYNAR Transom Frame, Geared Hinge, CVR Strike
CRL-U.S. Aluminum IG500 KYNAR Transom Frame, Geared Hinge, CVR Strike
Regular price
$3,207.68 CAD
Regular price
Sale price
$3,207.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

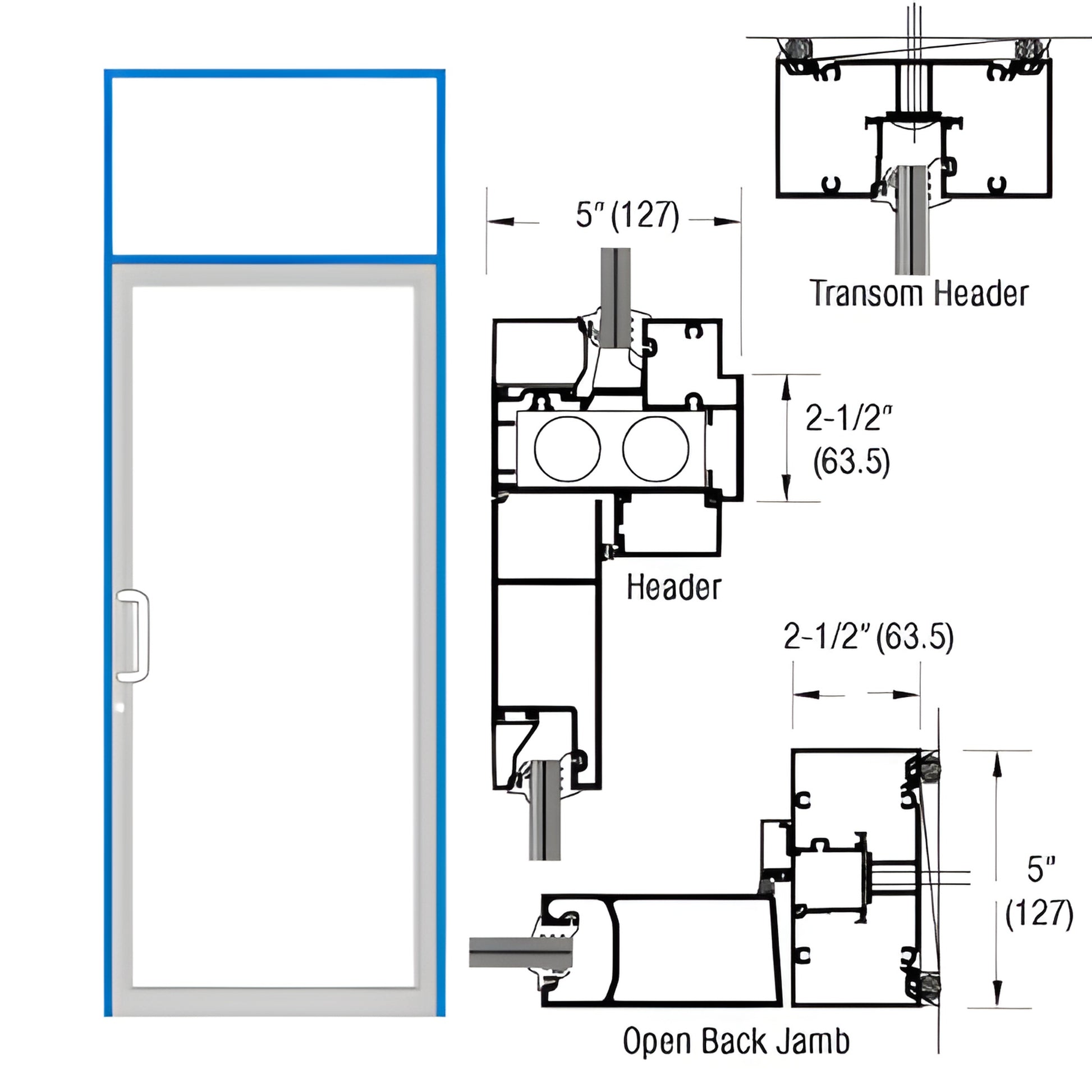

- 2-1/2" x 5" (63.5 x 127 mm) Transom Door Frame
- Includes prep for overhead concealed closer and CVR panic strike
- Includes TH811 air resistant threshold
- Optional air/water resistant threshold available
This Custom Transom Door Frame (SKU: 0F61971) is designed for a single geared hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header for overhead concealed closer, and IG526/1G100 transom header. Hardware preparations include overhead concealed closer and standard CVR panic strike—ideal for hurricane impact transom installations that require reinforced framing and air-resistant thresholds.
Order this hurricane-ready custom transom door frame (SKU: 0F61971) or contact us for threshold and configuration options.
