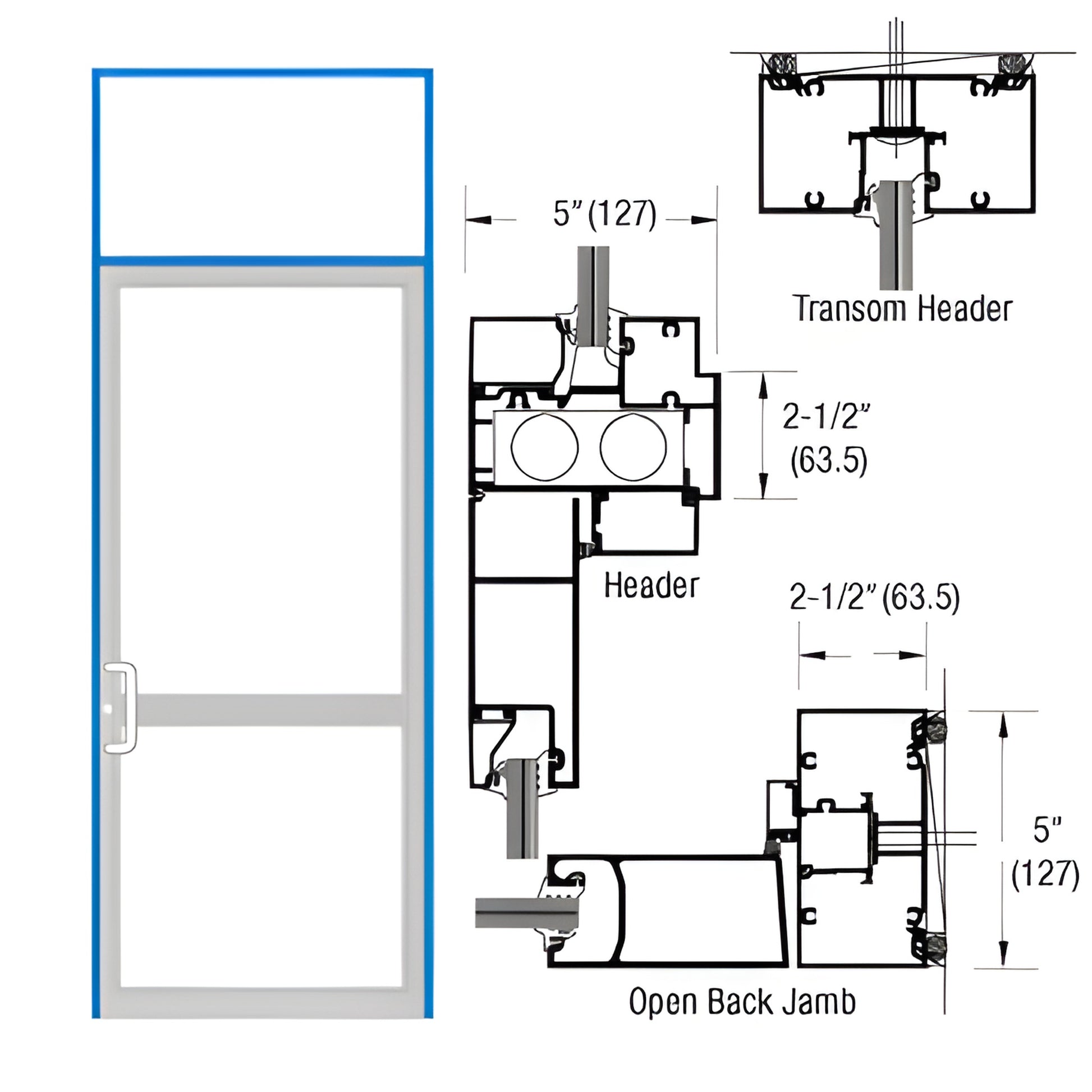

• Custom Kynar transom door frame (SKU 0P61971) schematic for geared-hinge hurricane impact door, shows 21 2" and 5" dims.
1 1

CRL

CRL-U.S. Aluminum KYNAR IG500 Custom Transom Frame for Geared Hinge

CRL-U.S. Aluminum KYNAR IG500 Custom Transom Frame for Geared Hinge

$3,184.49 CAD
$3,184.49 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P61971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) Geared Hinge Transom Door Frame — geared hinge not included
  • Prep for overhead concealed closer and CVR panic strike
  • Includes TH811 air-resistant threshold (optional air/water-resistant threshold available)

This Custom Transom Door Frame (SKU: 0P61971) is engineered for single geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed from industry-standard extrusions — IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header for overhead concealed closer, IG526/1G100 transom header — the frame provides hurricane-rated performance and durable hardware compatibility. Ideal for coastal and high-wind installations, this transom door frame features preps for overhead concealed closers and a standard CVR panic strike for secure egress.

Most shipping weights are approximate and have not been verified. If the exact weight is required to determine shipping costs before completing your order, contact CRL Customer Service. Product images are representative; colors may vary by monitor.


For pricing, lead times, or to request a quote for this geared hinge transom door frame for hurricane impact doors (SKU: 0P61971), contact CRL Customer Service or request a quote today.
