CRL-U.S. Aluminum IG500 KYNAR Up/Over Door Frame - Geared Hinge, CVR
CRL-U.S. Aluminum IG500 KYNAR Up/Over Door Frame - Geared Hinge, CVR
Regular price
$2,989.67 CAD
Regular price
Sale price
$2,989.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P42971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

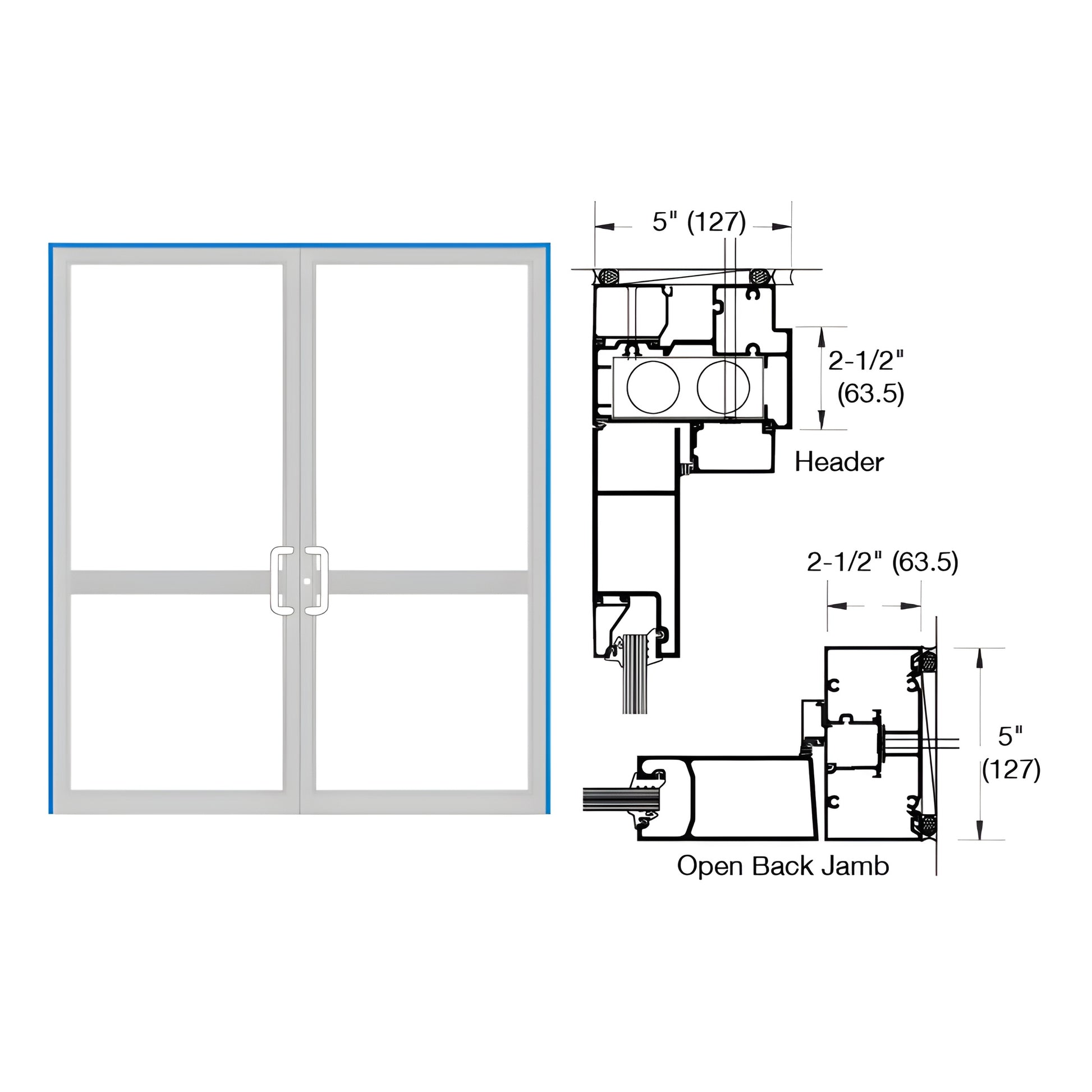

- 2-1/2" x 5" (63.5 x 127 mm) Geared Hinge Up/Over Door Frame (Geared hinge not included)
- Includes TH811 air resistant threshold for hurricane impact applications
- Optional air/water resistant threshold available
- Prepared for overhead concealed closer and CVR panic strike
This Custom Up/Over Door Frame is engineered for pair geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header for overhead concealed closer, the frame is specified for impact-rated, high-wind coastal and hurricane-prone installations. Hardware preparations include overhead concealed closer prep and standard CVR panic strike prep.
Refer to FPA Guidelines when installing hurricane impact products.
SKU: 0P42971
Order this hurricane impact geared-hinge up/over door frame (SKU 0P42971) today to ensure code-compliant, impact-rated protection for coastal and high-wind projects.
