Description
Finish/Color
Custom Kynar
Overview
- 7-1/4" (184 mm) Bottom Rail; 10" (254 mm) Bottom Rail available for A.D.A. and Title 21 compliance
- Custom-fabricated to accept optional hardware applications and accommodate gear hinge hardware
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
- Designed to accept 1" (25 mm) tempered insulating unit (glass not included)

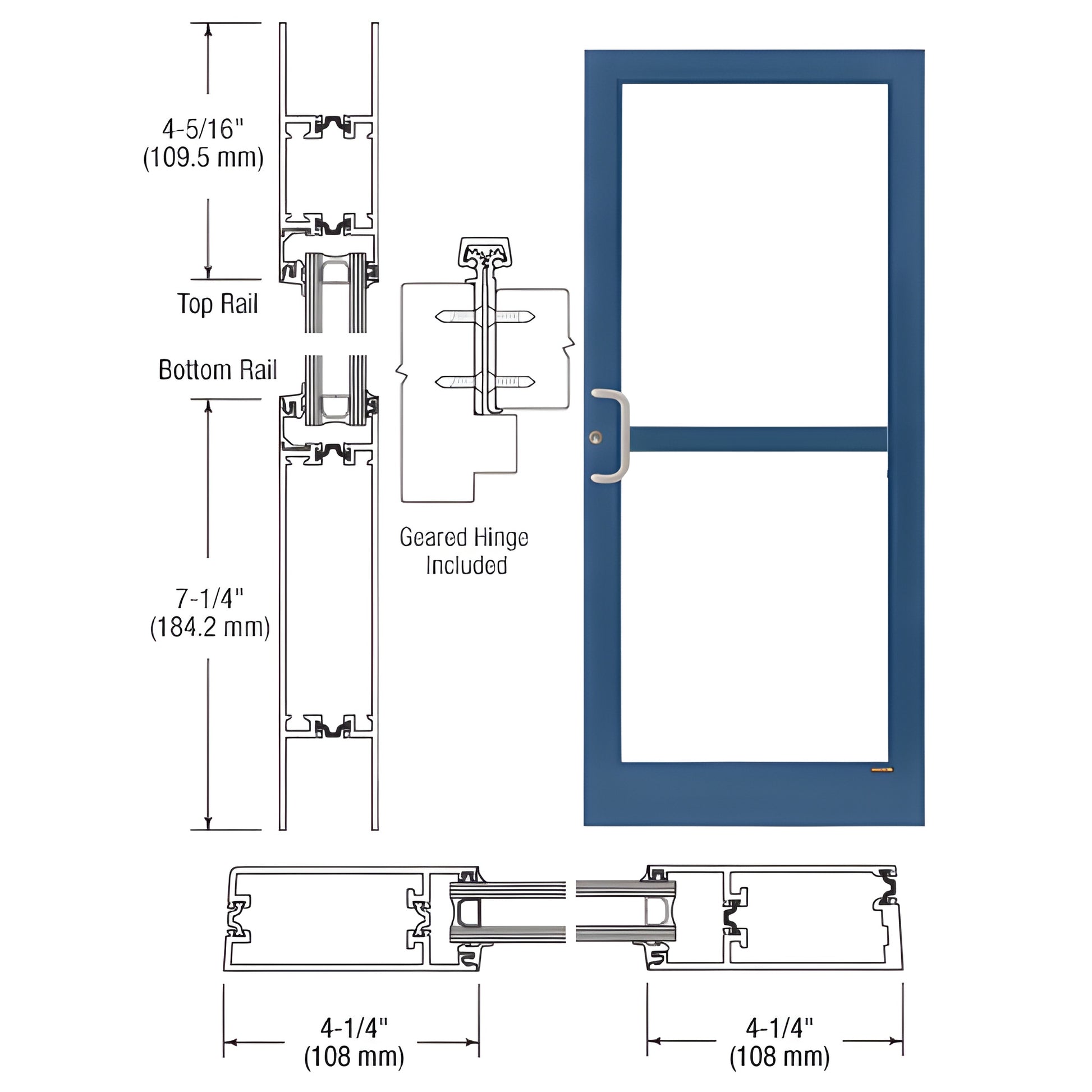

CRL Custom Medium Stile Entrance Door (SKU: 1Z41871) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Built for commercial entry use, this medium stile entrance door ships ready for custom fabrication to support a wide range of optional hardware—ideal for storefronts, retail entrances, and institutional applications requiring concealed vertical rod panic hardware.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately for transit protection and must be installed on site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU 1Z41871 or contact CRL for custom configurations and ADA-compliant bottom rail options.
Specifications
BIM Objects - rvt
