CRL-U.S. Aluminum Custom KYNAR® Series 400 Offset Pivot Entrance Door
Item# HE41171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Accommodates 1/4" (6 mm) tempered glass with option for 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

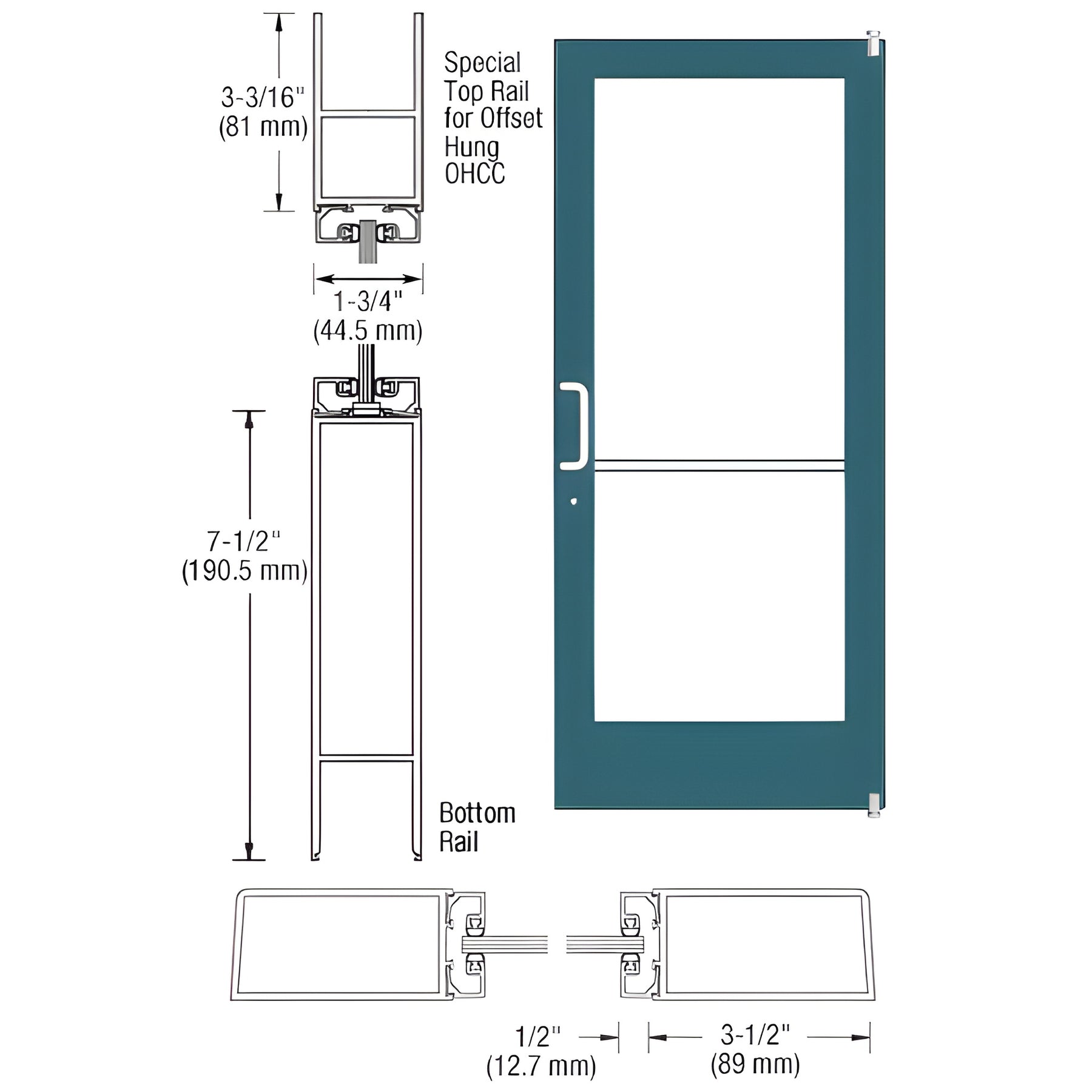

This Custom Medium Stile Entrance Door features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial use, it comes ready for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom hardware integration, this medium stile entrance door is ideal when you need a configurable, secure tempered-glass storefront solution.
Please note: included protruding hardware (handles, pivots, etc.) is boxed separately for transit protection and must be installed on site. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, request this from CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
SKU: HE41171
Order now to customize hardware and glass options for your commercial entrance — contact CRL for a quote.
BIM Objects - rvt
