CRL-U.S. Aluminum Custom KYNAR® Open-Back Butt-Hinge Transom Frame
CRL-U.S. Aluminum Custom KYNAR® Open-Back Butt-Hinge Transom Frame
Regular price
$1,161.34 CAD
Regular price
Sale price
$1,161.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0B91571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Custom Size
- Aluminum Threshold Included

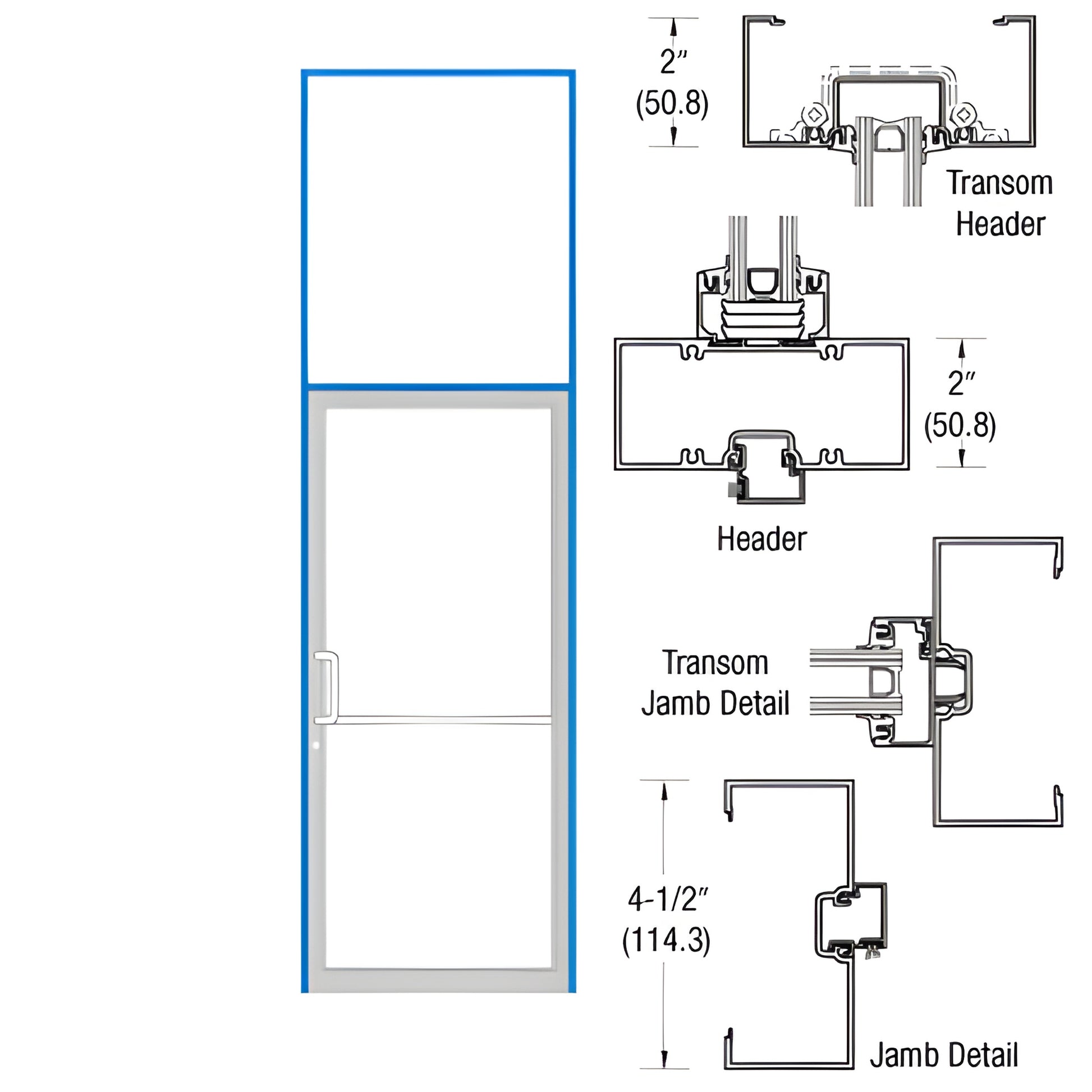

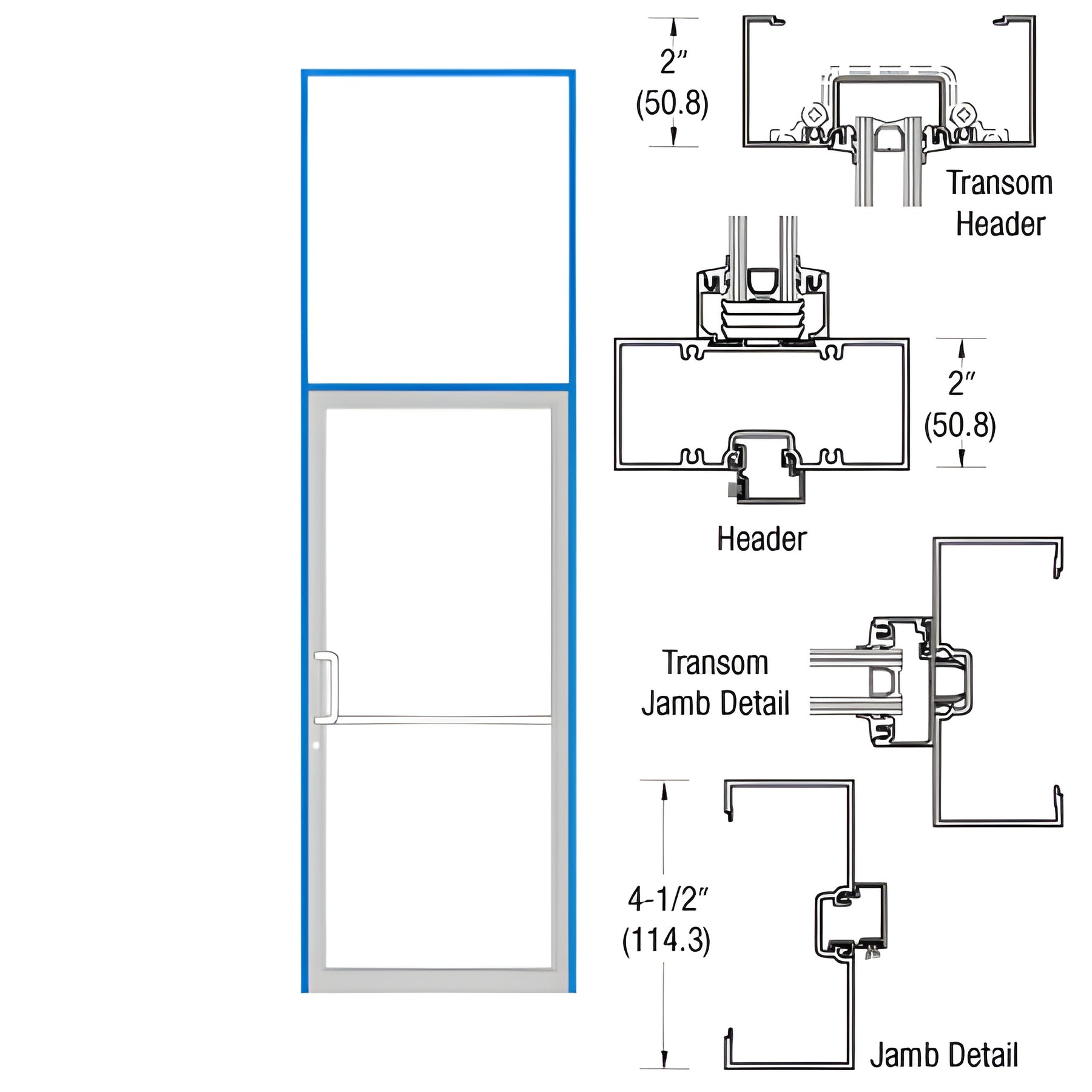

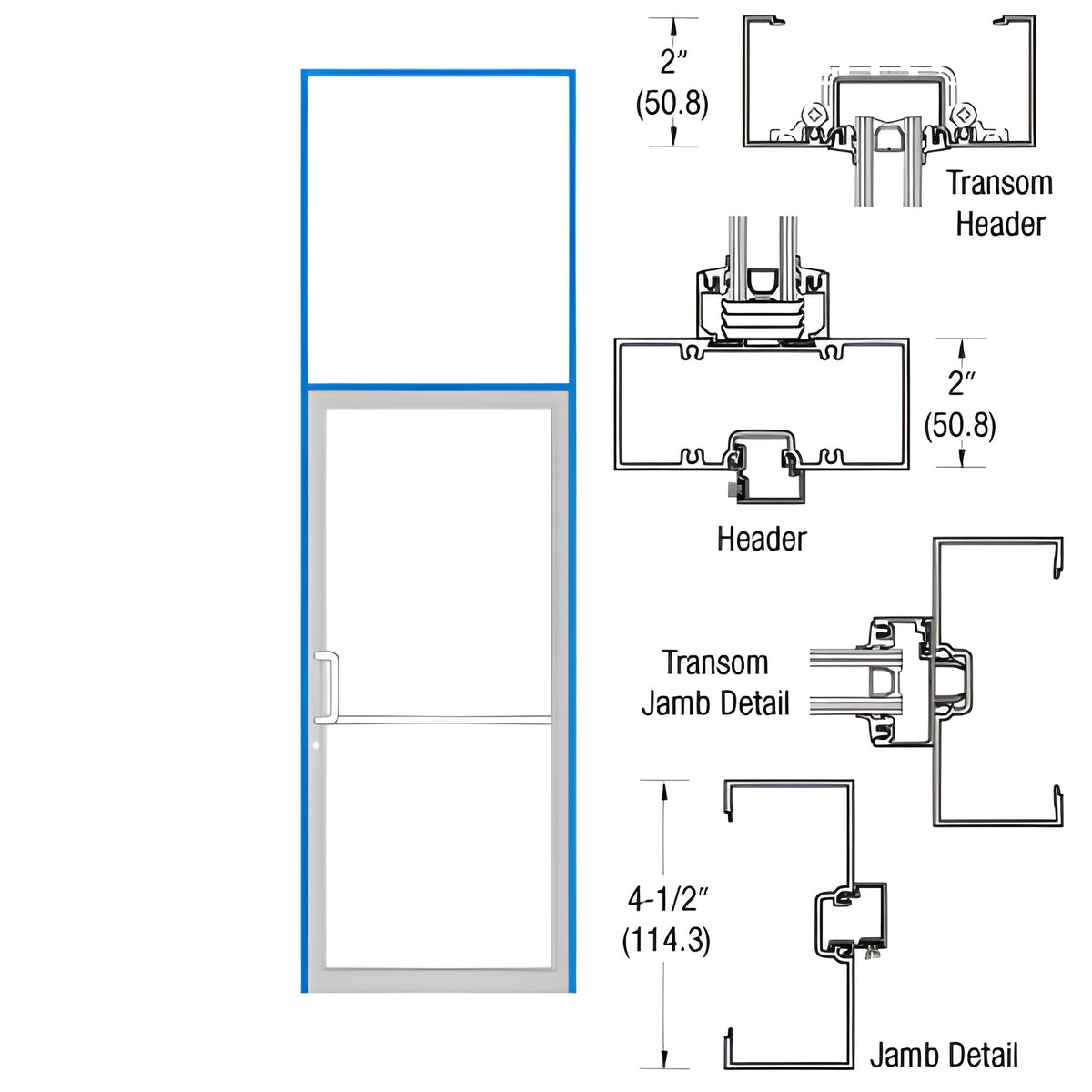

- 2" x 4-1/2" (50.8 x 114.3 mm) Transom Frame with Open Back Jambs
- Includes Standard Hookbolt
CRL Complete Frame (SKU: 0B91571) is engineered to accommodate a 36" x 84" butt-hinge door with surface-mount closer. Constructed using 1S466 open back jambs and 1S467 header, this complete aluminum frame package includes door stops, weatherstrip, standard hardware, and hardware preparations for quick installation. An aluminum threshold is included for a finished sill and reliable sealing performance.
All fasteners, standard hardware, and hardware fabrication required for frame assembly are supplied. The customer provides fasteners to anchor the frame to the opening. Note: frame widths under 40" may not meet Americans with Disabilities Act (ADA) inspection requirements.
Key differentiators: complete pre-fabricated aluminum frame, open-back jambs for easy on-site fitting, included aluminum threshold, and standard hardware package for rapid installation.
Order SKU 0B91571 or contact CRL for a quote and lead time.
