CRL-U.S. Aluminum 451 Clear Anodized Transom Frame Butt Hinge Custom
CRL-U.S. Aluminum 451 Clear Anodized Transom Frame Butt Hinge Custom
Regular price
$1,005.29 CAD
Regular price
Sale price
$1,005.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0B91511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

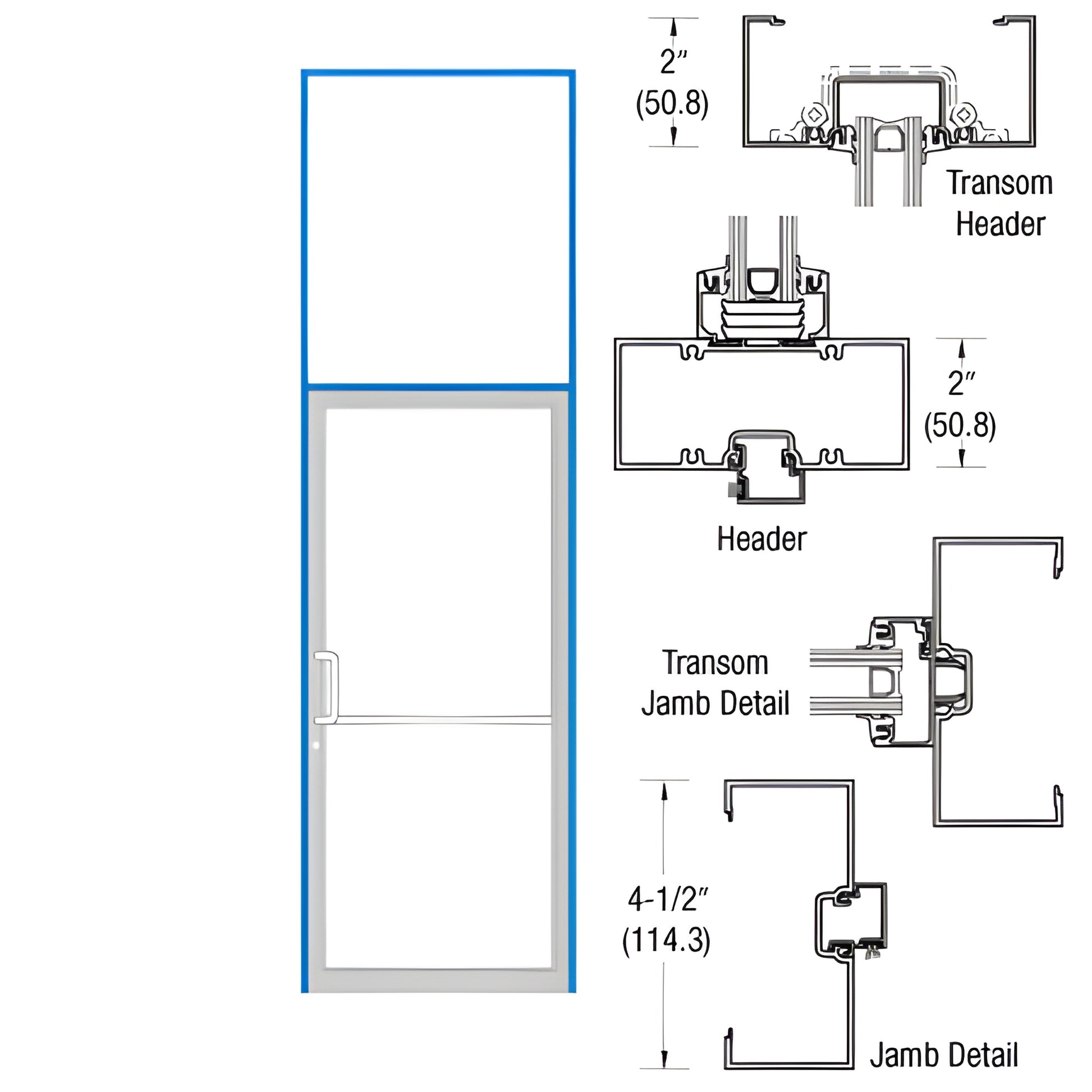

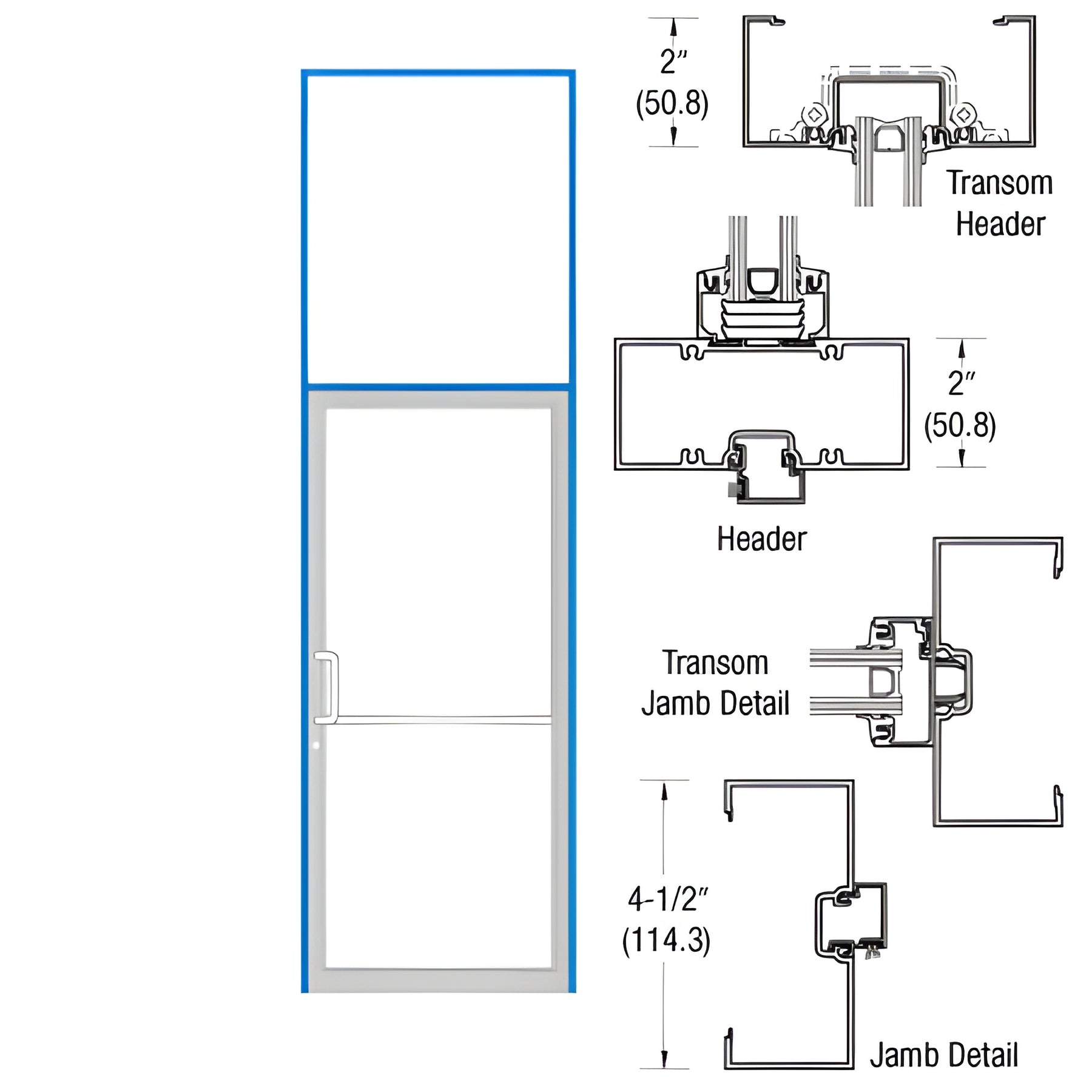

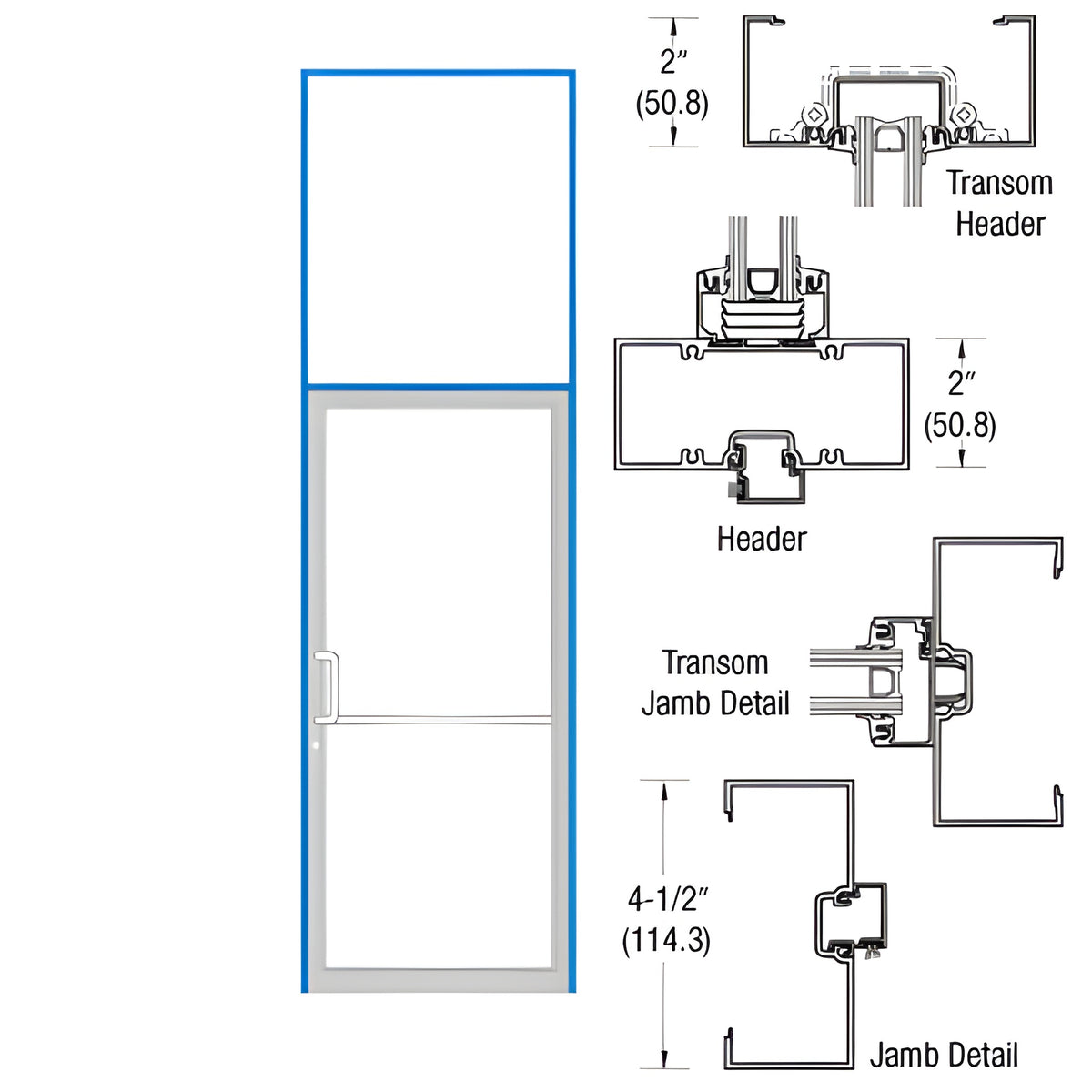

- 2" x 4-1/2" (50.8 x 114.3 mm) transom frame with open back jambs
- Custom size available — specify dimensions when ordering
- Aluminum threshold included
- Includes standard hookbolt
CRL Complete Frame (SKU: 0B91511) is engineered to accommodate a base 36" x 84" butt hinge door with a surface mount closer. Constructed with 1S466 open back jambs and 1S467 header, this aluminum transom frame package includes door stops, weatherstrip, standard hardware, and hardware preparations for fast, accurate installation.
All frame fabrication, standard hardware, and fasteners required for frame assembly are included. Customers supply fasteners to attach the frame to the opening. Note: frame widths less than 40" may not pass A.D.A. inspection.
Key differentiators: aluminum transom frame with open back jambs for easy hardware access, included threshold and weatherstrip, and factory-prepared hardware locations for rapid installation.
Order SKU 0B91511 or contact CRL for custom sizing and lead times.
