CRL-U.S. Aluminum Series 451 Up-and-Over Gear Hinge, Clear Anodized
CRL-U.S. Aluminum Series 451 Up-and-Over Gear Hinge, Clear Anodized
Regular price
$883.97 CAD
Regular price
Sale price
$883.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0B72811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

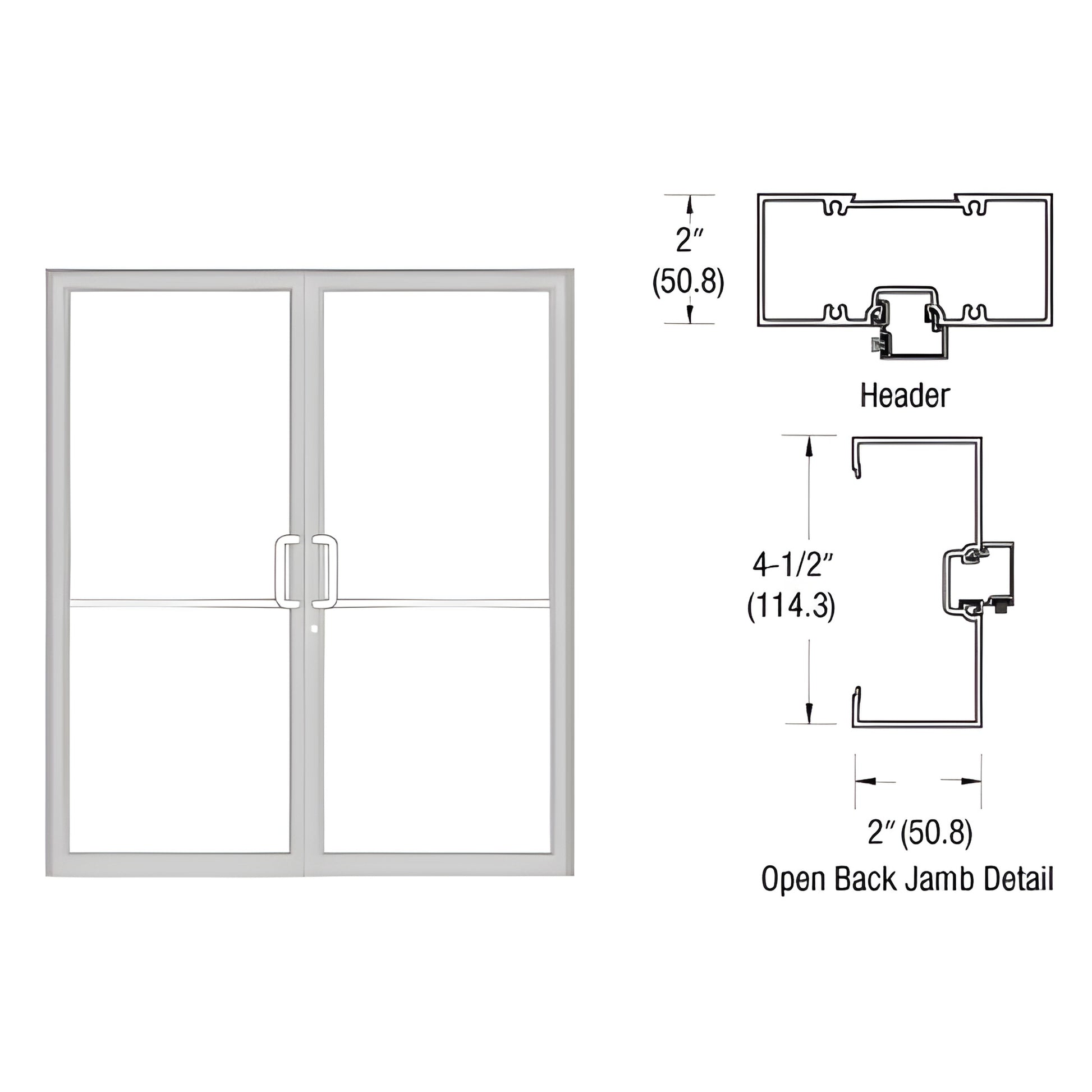

- 2" x 4-1/2" (50.8 x 114.3 mm) Gear Hinge Up-and-Over Frame with Open Back Jambs
- Includes standard flushbolts for secure double-door applications
- Custom size available to fit non‑standard openings
- Aluminum threshold included for weather resistance and smooth operation
Complete Frame — Built to accommodate a base 72" x 84" Gear Hinge door prepared for a Surface Mount Closer. Constructed using 1S466 open back jambs and 1S467 header. Includes door stops, weatherstrip, standard hardware, and hardware preparations for quick installation.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Ideal for contractors and installers seeking a ready-to-assemble gear hinge up-and-over frame with open back jambs and aluminum threshold.
SKU: 0B72811
Order SKU 0B72811 or contact CRL Customer Service to confirm dimensions and shipping details.
