CRL-U.S. Aluminum Custom Sized Clear Anodized Series 450 Open Back Gear Hinge Up and Over Frame Complete (1F)

Product Details

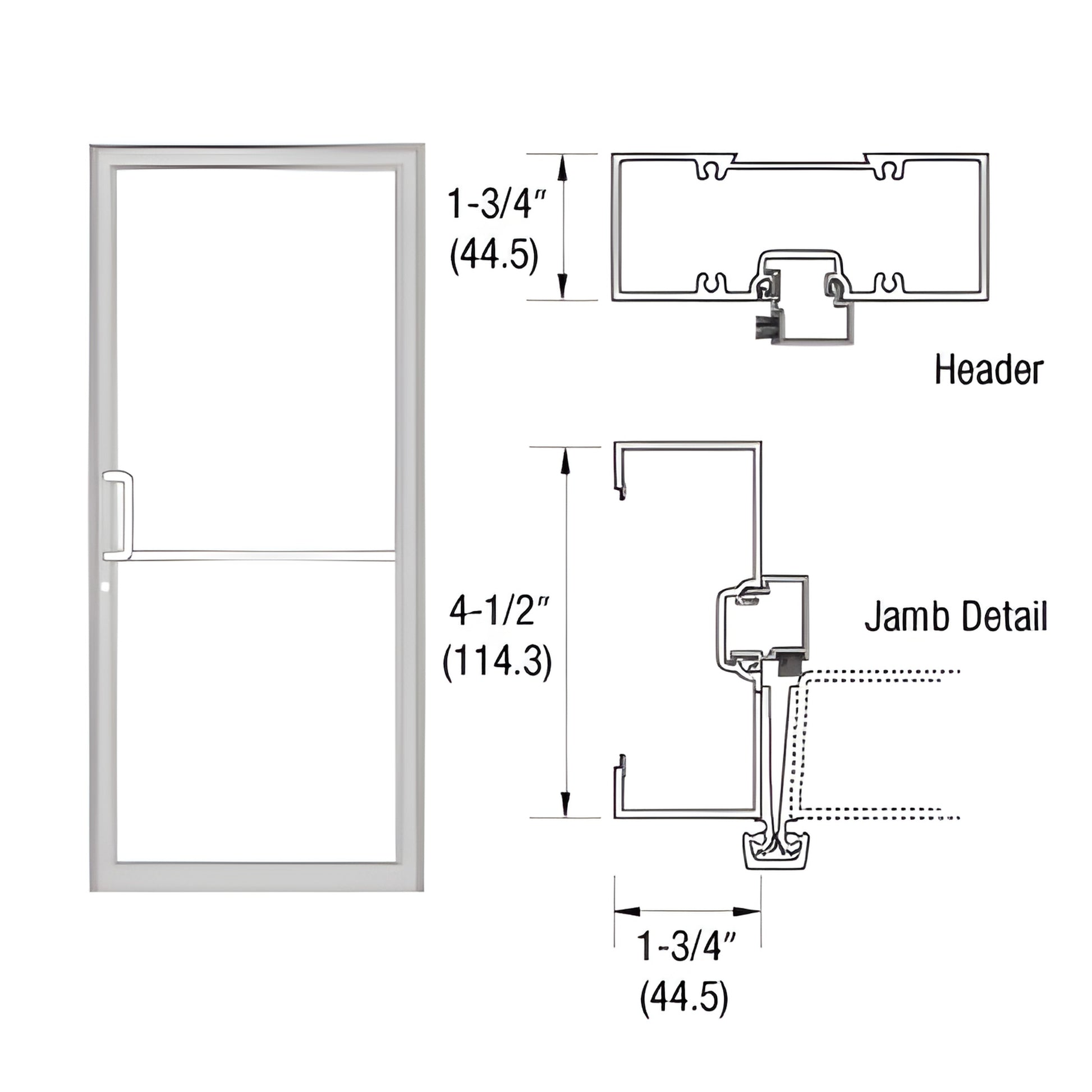

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Gear Hinge Up and Over Frame with Open Back Jambs
• With Standard Hookbolts
• Custom Size
• Aluminum Threshold is Included

CRL Complete Frame is built to accommodate a base 36" x 84" Gear Hinge Door for a Surface Mount Closer, constructed using J452 Open Back Jambs with JS467 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening. Frame widths less than 39-1/2" (1.0 m) may not pass A.D.A. Inspection.
