CRL-U.S. Aluminum 250T Narrow Stile Geared Hinge Pair, Dark Bronze
CRL-U.S. Aluminum 250T Narrow Stile Geared Hinge Pair, Dark Bronze
Regular price
$3,466.58 CAD
Regular price
Sale price
$3,466.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D22822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 4-5/16" (110 mm) Bottom Rail
- 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
CRL Custom Narrow Stile Entrance Door—SKU: 1D22822

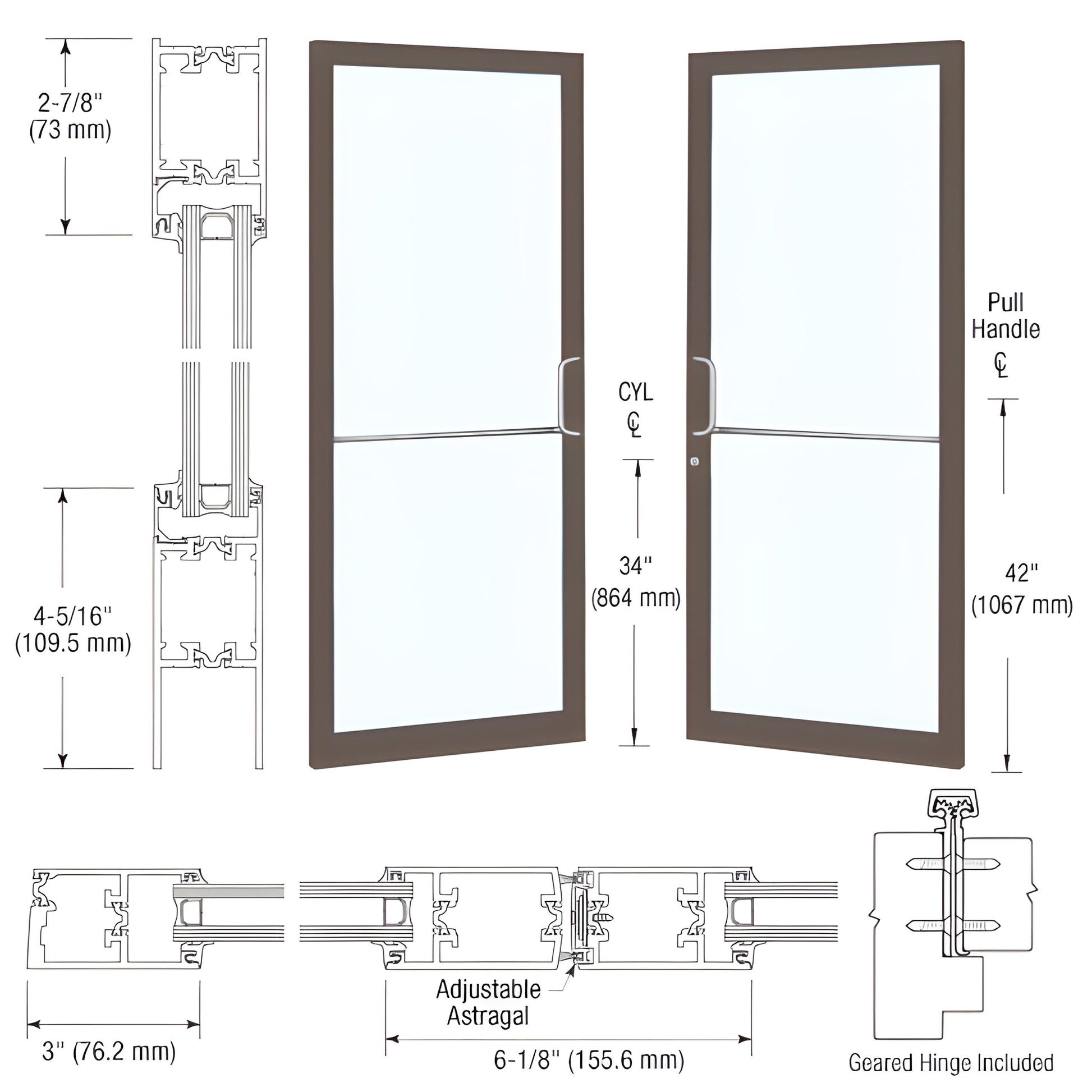

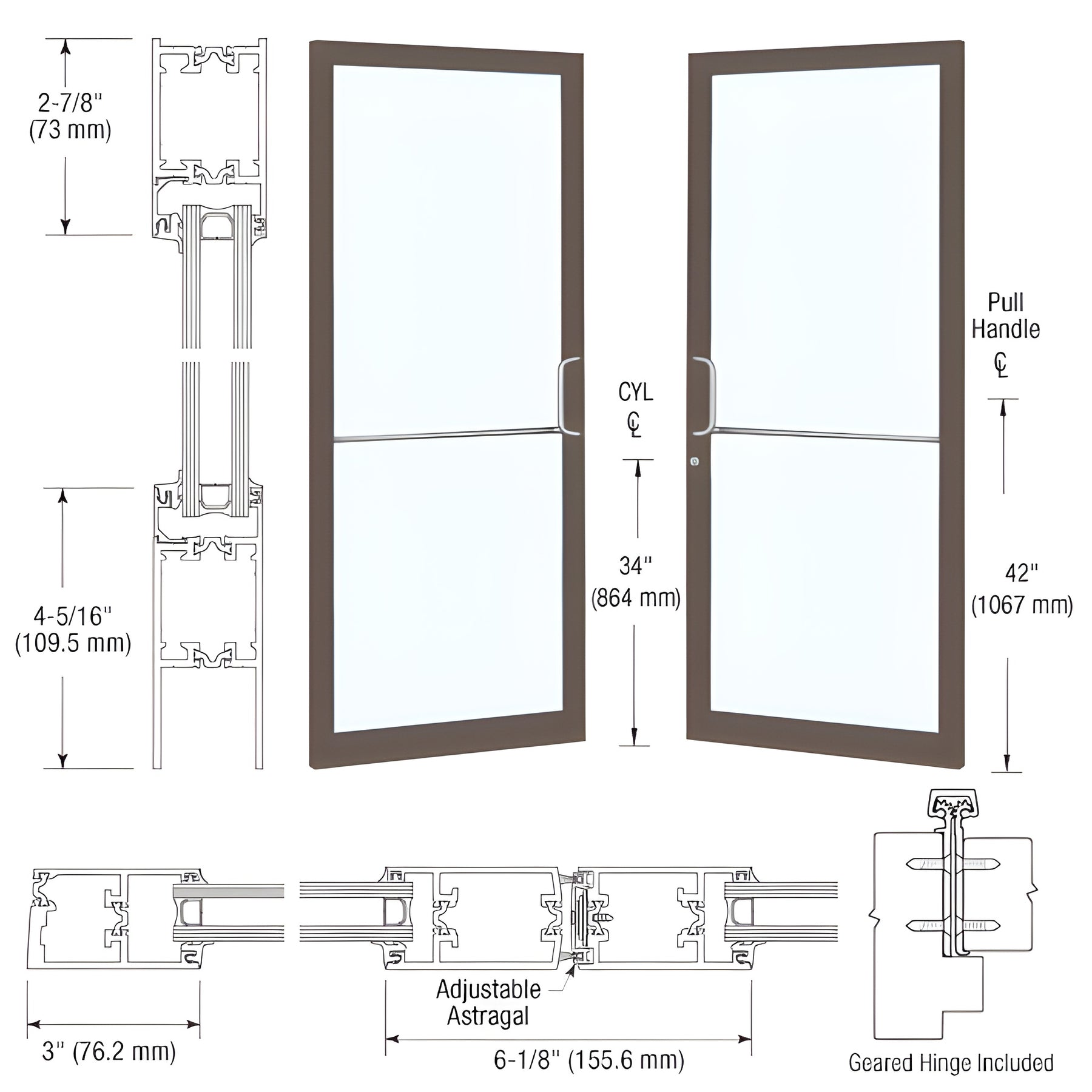

Built with 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Standard features include stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Designed for custom narrow-stile entrance door installations and ready for a wide range of optional hardware applications.
Hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Glass is not included.
Highlights: Narrow stile entrance door for commercial and ADA-compliant openings, customizable for optional hardware, fits 1" tempered insulating units.
Contact CRL Customer Service or order SKU 1D22822 today.
Specifications
BIM Objects - rvt
