CRL-U.S. Aluminum 250T Narrow Stile Door Butt Hinge Dark Bronze/Black
CRL-U.S. Aluminum 250T Narrow Stile Door Butt Hinge Dark Bronze/Black
Regular price
$1,499.03 CAD
Regular price
Sale price
$1,499.03 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D21522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes Standard Push/Pull, hanging hardware, MS Hookbolt Lock, and two keyed-alike cylinders
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- 4-5/16" (110 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 21 applications
- Custom fabricated to accept a wide range of optional hardware applications

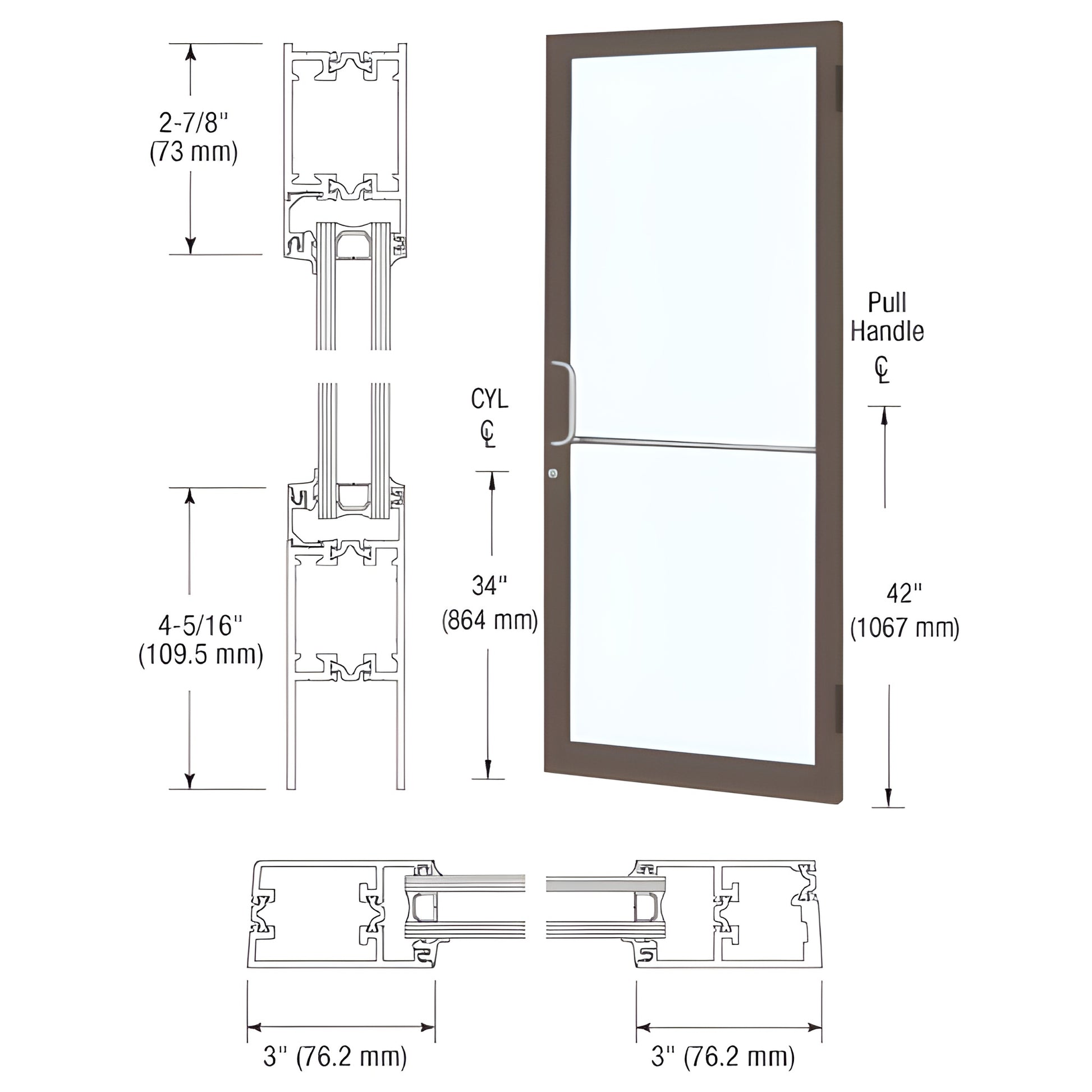

CRL Custom Narrow Stile Entrance Door (SKU: 1D21522) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Standard preparation includes stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (supplied by others). Built for custom narrow stile commercial entrance installations and compatible with optional ADA-compliant 10" bottom rail and a variety of storefront hardware.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
For pricing, lead times, or to order this custom narrow stile entrance door (SKU: 1D21522), contact CRL Customer Service or add to your cart now.
Specifications
BIM Objects - rvt
