CRL-U.S. Aluminum 250T Narrow-Stile Geared Hinge, Surface-Mount Closer

• 4-5/16" (110 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders

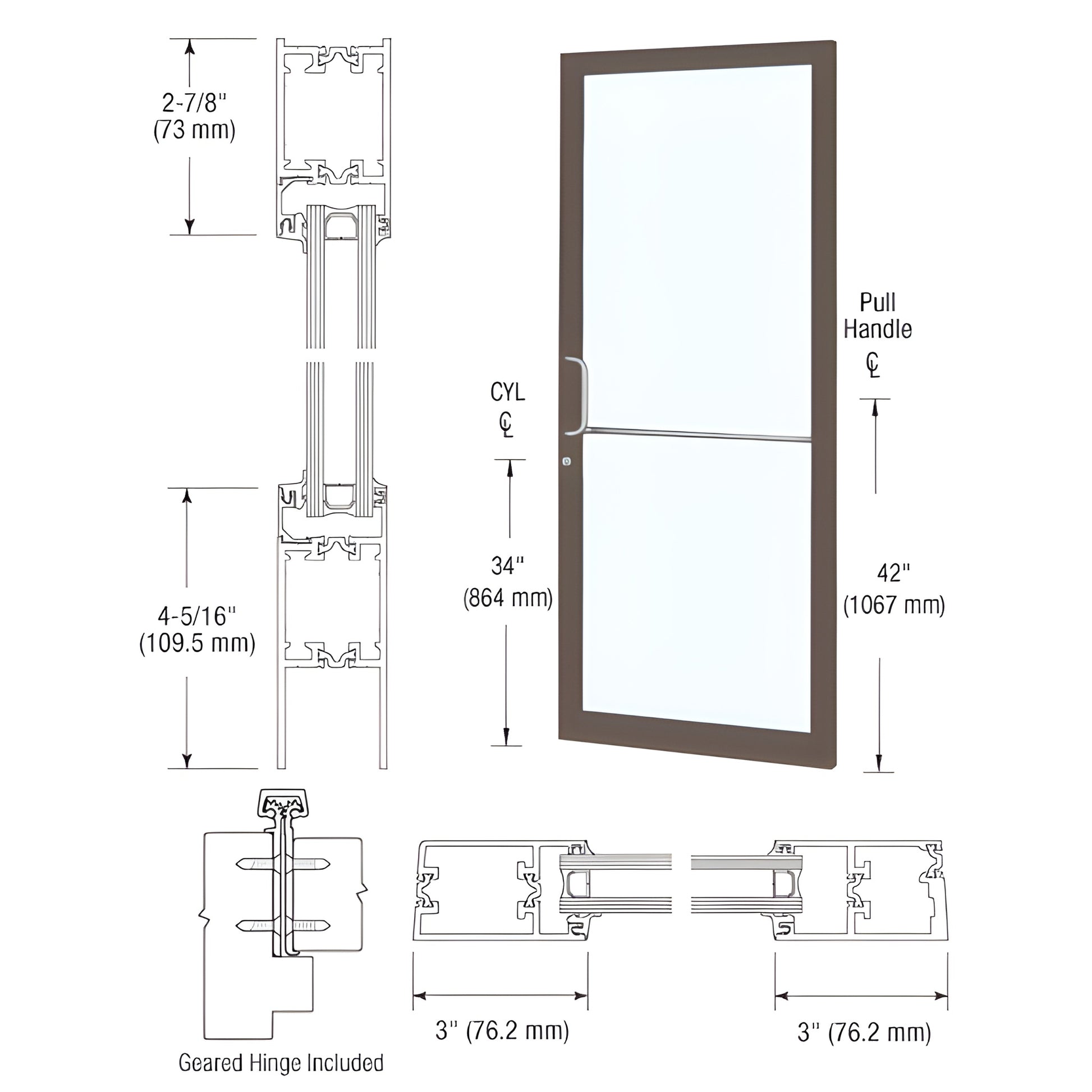

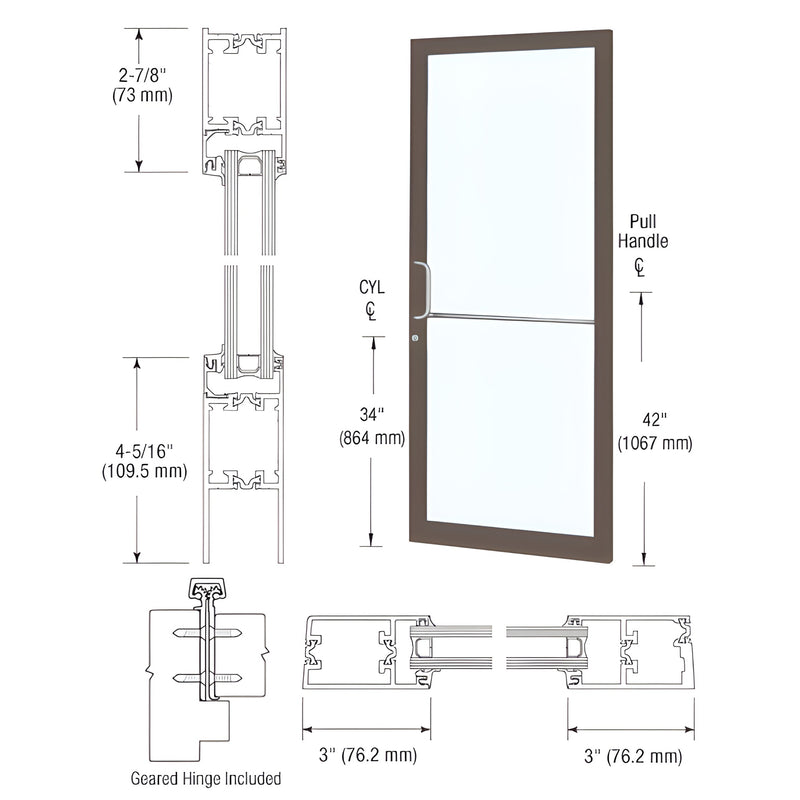

This CRL Custom Narrow Stile Entrance Door (SKU: 1D21822) features 3" (76 mm) stiles, a 2-7/8" (73 mm) top rail, and a 4-5/16" (110 mm) bottom rail. Designed as a custom narrow stile entrance door for commercial storefronts, it ships ready for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (by others). The unit is prepared for a wide range of optional hardware applications for storefront and commercial entry use.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not pass A.D.A. inspection. For ADA-compliant installations, specify the 10" (254 mm) bottom rail option.

Order the CRL custom narrow stile entrance door SKU 1D21822 for a commercial, ADA‑ready storefront solution—contact us to request exact weight or place your order.
