CRL-U.S. Aluminum 400T Dark Bronze/Black Butt Hinge for Entrance Door
CRL-U.S. Aluminum 400T Dark Bronze/Black Butt Hinge for Entrance Door
Regular price
$1,779.14 CAD
Regular price
Sale price
$1,779.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1D41522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes Standard Push/Pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accommodates 1" (25 mm) tempered insulating unit (glass not included)
- 7-1/4" (184 mm) bottom rail; 10" (254 mm) bottom rail available to comply with A.D.A. and Title 24 applications
- Custom fabricated to accept optional hardware applications

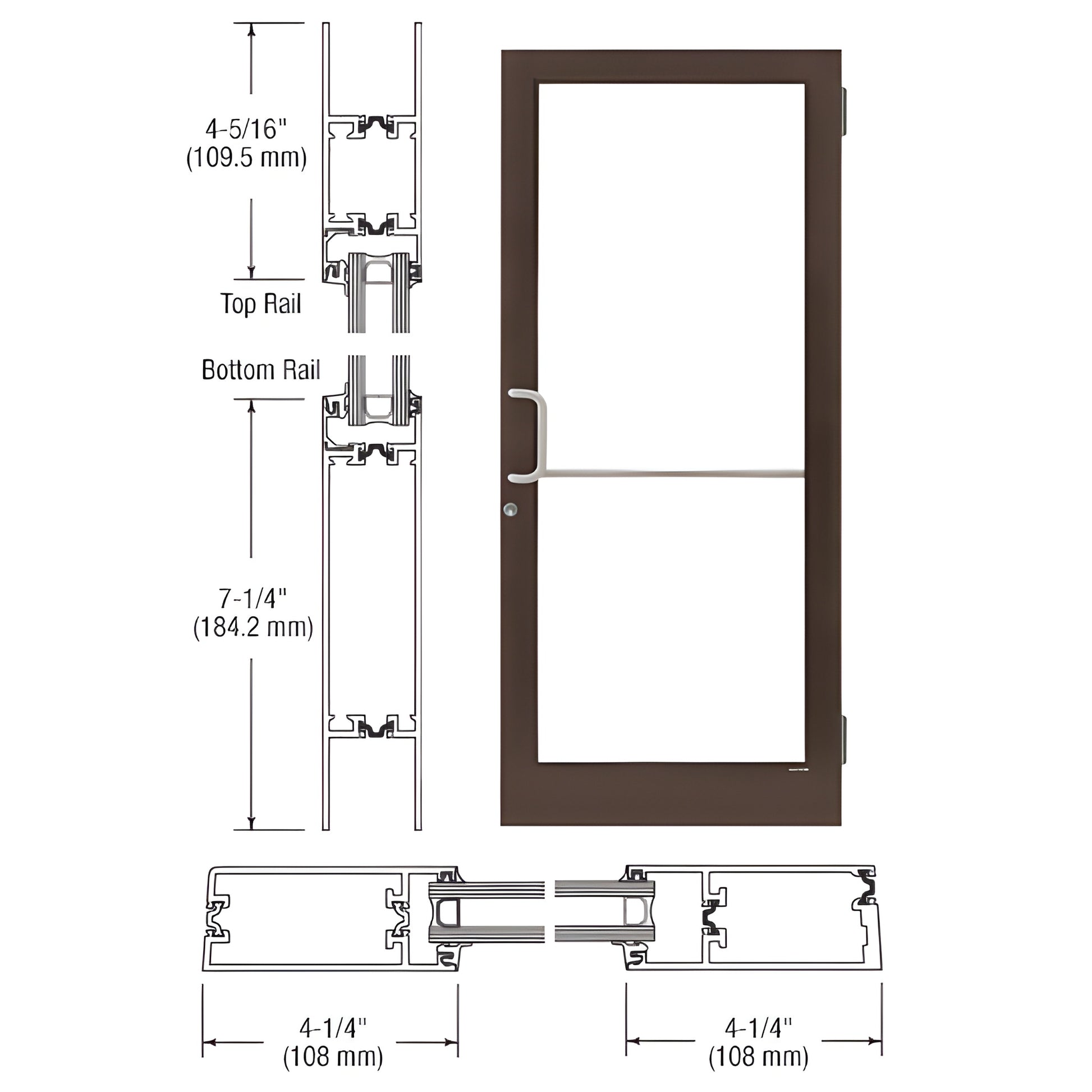

This CRL Custom Medium Stile Entrance Door (SKU: 1D41522) is a commercial-grade medium stile aluminum entry solution built with 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Standard features include stiles prepared for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Designed for custom fabrication, this door supports a wide range of optional hardware and commercial entrance configurations.
Customer must install included protruding hardware (handles, pivots, etc.) which is boxed separately to prevent damage in transit.
Ideal for commercial storefronts and ADA-friendly entrance projects—order SKU 1D41522 or contact CRL for custom hardware options and lead times.
Specifications
BIM Objects - rvt
