CRL-U.S. Aluminum 400T Thermal Butt Hinge for Panic Exit Doors

• 7-1/4" (184 mm) Bottom Rail
• 10" (254 mm) Bottom Rail available to comply with A.D.A. and Title 21 applications
• Custom fabricated to accept optional hardware applications
• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
• Accommodates 1" (25 mm) tempered insulating unit (glass not included)

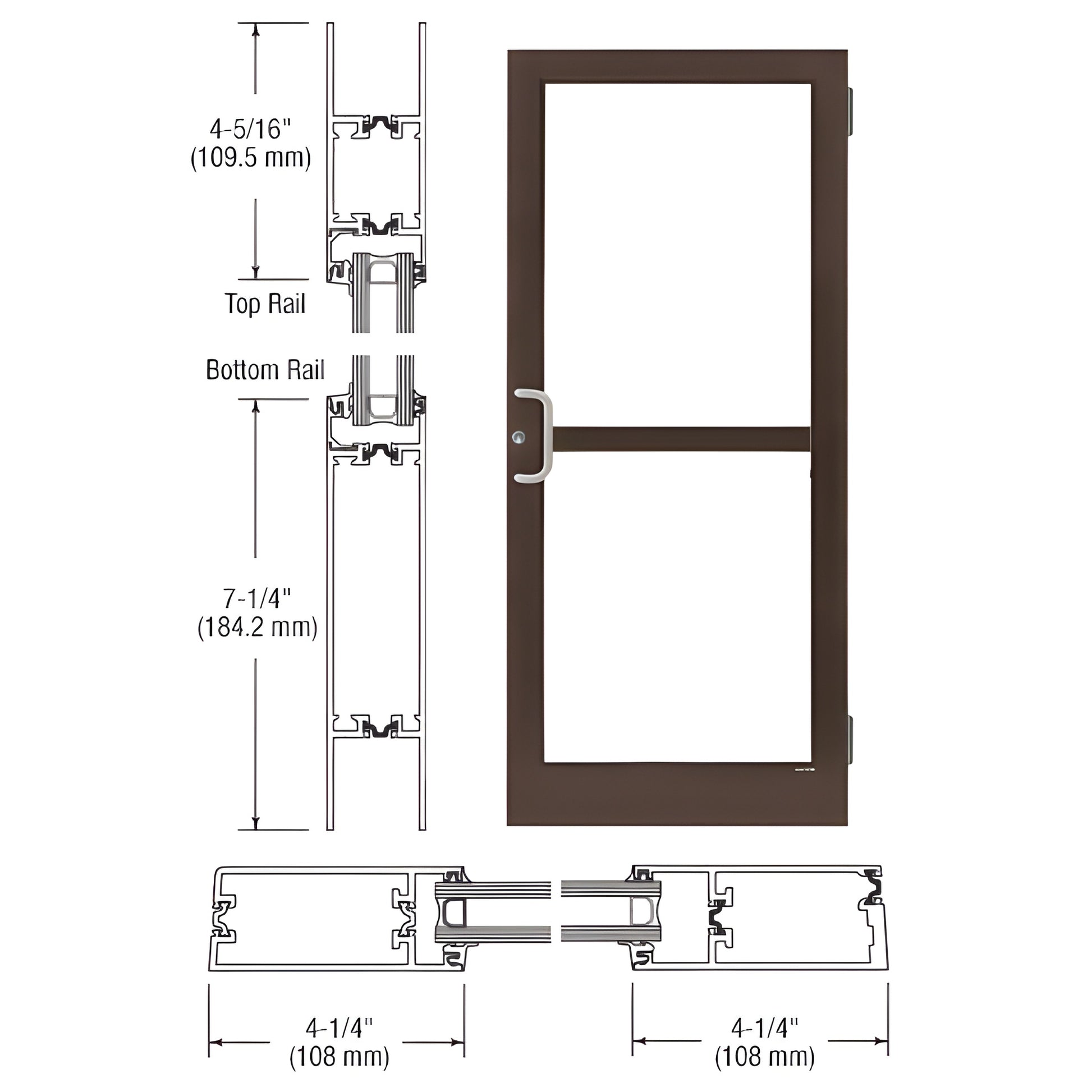

This CRL Custom Medium Stile Entrance Door (SKU: 1Z41522) features 4-1/4" (108 mm) stiles, a 4-5/16" (110 mm) top rail, and a 7-1/4" (184 mm) bottom rail. Designed for commercial storefront and office entry use, it ships ready for custom fabrication to fit a wide range of optional hardware applications and includes stiles configured for butt hinge hardware. Glass stops are set for 1/4" (6 mm) tempered glass supplied by others.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage in transit and must be installed by the customer. Door widths under 36" (914 mm) may not pass A.D.A. inspection. For ADA-compliant installations, select the 10" (254 mm) bottom rail option.

Differentiators: Commercial-grade medium stile construction, customizable hardware accommodation, ADA-compatible bottom rail option, and integrated concealed vertical rod panic hardware — ideal for high-traffic storefront and institutional entrances.

Contact CRL to request exact shipping weight, confirm ADA requirements, or place an order for SKU 1Z41522.
