CRL
CRL-U.S. Aluminum IT451 Dark Bronze Anodized Open-Back Butt Hinge 1ft
CRL-U.S. Aluminum IT451 Dark Bronze Anodized Open-Back Butt Hinge 1ft
Regular price
$2,280.00 CAD
Regular price
Sale price
$2,280.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1B91422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

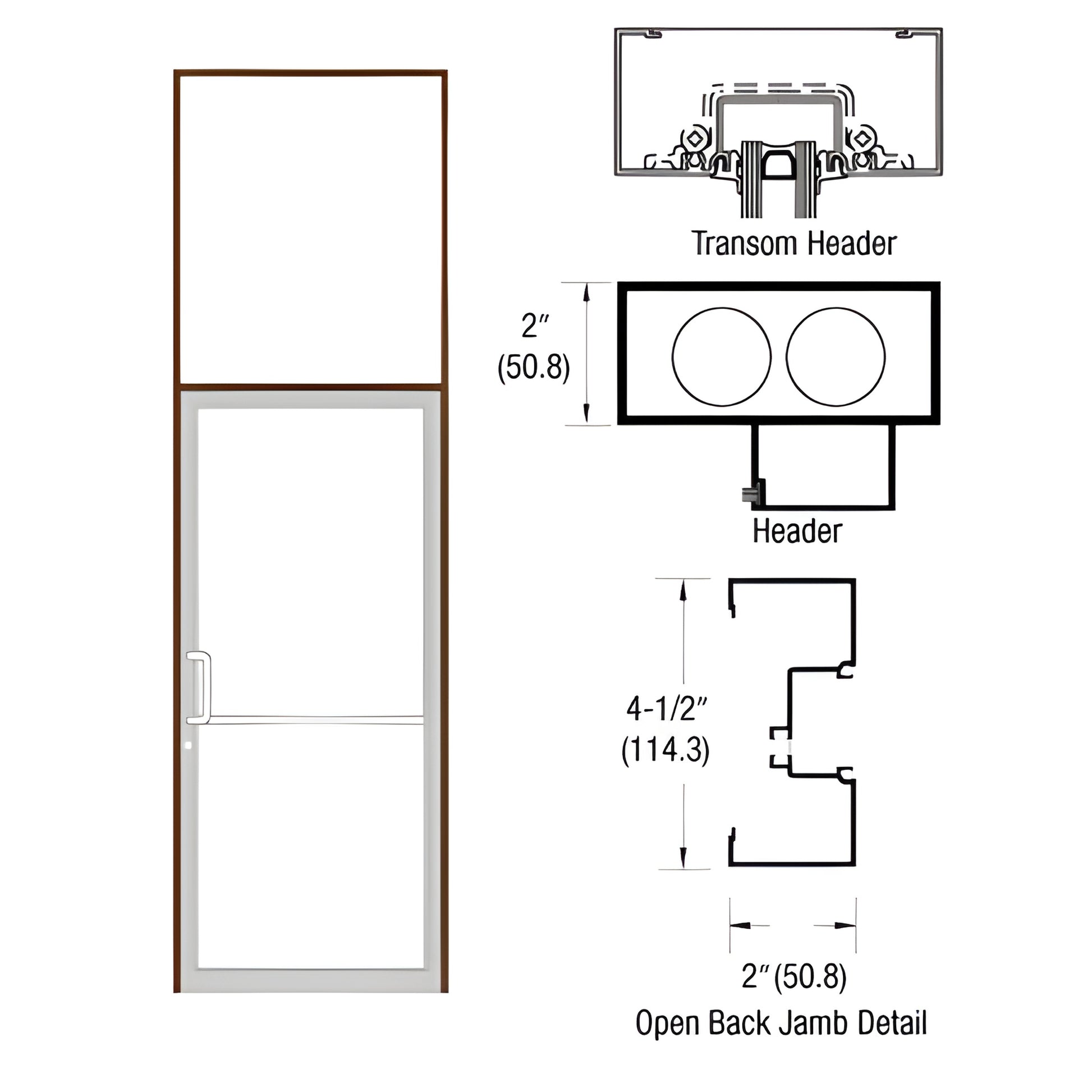

- 2" x 4-1/2" (50.8 x 114.3 mm) Transom Frame with Open Back Jambs — ideal for overhead concealed closers
- Custom size available
- Aluminum threshold included
Complete Frame — built to accommodate a base 36" x 84" butt-hinge 1-3/4" door for a 105º overhead concealed closer with offset arm. Constructed using 1T442 open back jambs and a 1450 header. Includes DS051 door stops for 1-3/4" doors, weatherstrip, standard hardware, and hardware preparations for a ready-to-install transom frame system.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach frame to opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection. SKU: 1B91422 — transom frame with open back jambs and aluminum threshold.
Order SKU 1B91422 or contact CRL Customer Service for custom sizing and shipping details.
