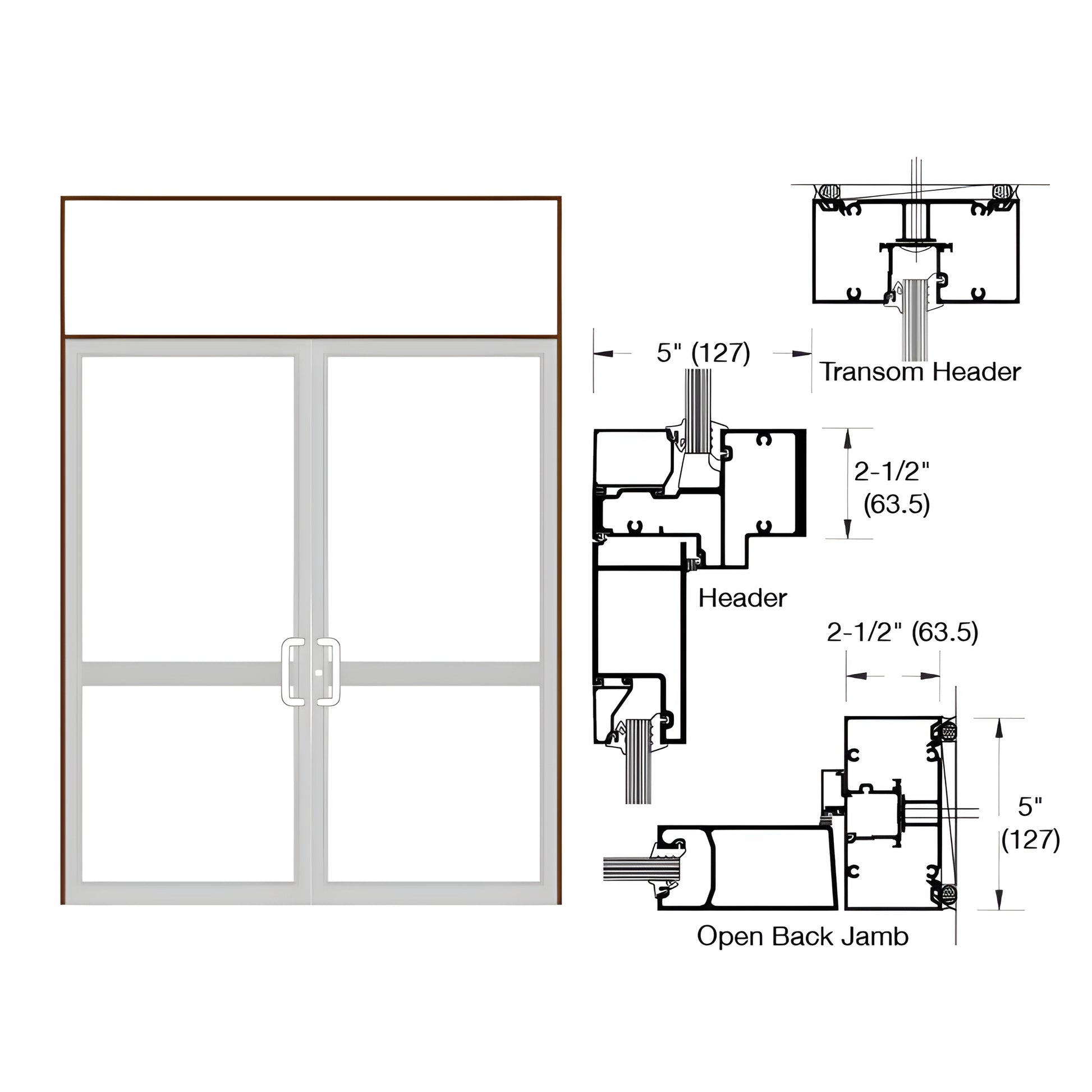

• SKU 0P62522: black bronze anodized double transom impact door frame, 2-1/2" x 5" profile, hinge and threshold prep
1 1

CRL

CRL-U.S. Aluminum IG500 Transom Butt Hinge Dark Bronze/Black Anodized

CRL-U.S. Aluminum IG500 Transom Butt Hinge Dark Bronze/Black Anodized

$3,131.15 CAD
$3,131.15 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P62522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame
  • Prepped for 1-1/2" pair of butt hinges (hinges not included)
  • Prepped for standard CVR panic strike
  • Includes air resistant threshold (TH811); optional air/water resistant threshold available

Custom Double Transom Door Frame (SKU: 0P62522) — engineered for hurricane impact applications and designed to accept a pair of butt-hinged CVR impact doors using 9/16" (14 mm) laminated impact glazing. Constructed from IG526 jambs with IG567/IG563 header and IG526/IG100 transom header. Surface-mount closer compatible; hardware prep includes provisions for butt hinges and a standard CVR panic strike. Ideal long-tail search match: "butt hinged transom hurricane impact door frame with air resistant threshold."


When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Ready to order or need a quote? Contact CRL Customer Service for pricing and lead times.
