CRL-U.S. Aluminum IG500 Transom Frame Dark Bronze/Black w/ Butt Hinge
CRL-U.S. Aluminum IG500 Transom Frame Dark Bronze/Black w/ Butt Hinge
Regular price
$2,772.81 CAD
Regular price
Sale price
$2,772.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 2-1/2" x 5" (63.5 x 127 mm) butt hinges transom door frame
- Prepped for 1-1/2" pair butt hinges (hinges not included)
- Prepped for overhead concealed closer and deadbolt strike
- Includes air resistant threshold (optional air/water resistant threshold available)

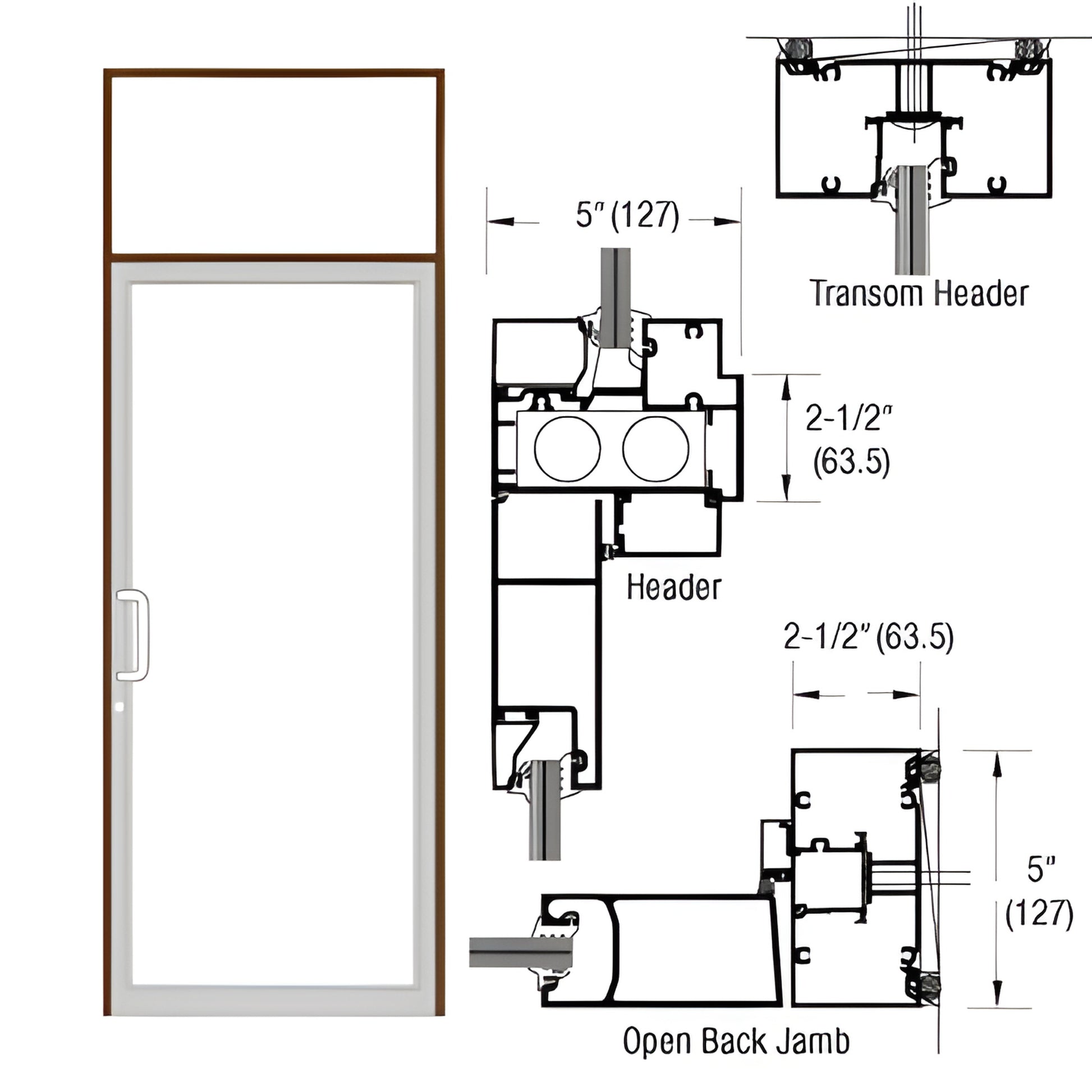

This Custom Single Transom Door Frame (SKU: 0F61422) is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header, it includes IG526 transom header and TH811 air threshold. Hardware prep includes provisions for a concealed overhead closer, a standard deadbolt strike, and 1-1/2 pair butt hinge prep. Ideal for projects specifying a hurricane impact transom door frame with air-resistant threshold options.
When installing hurricane impact products, always refer to FPA Guidelines.
Purchase or request a quote for SKU 0F61422 to confirm availability and exact shipping details.
