CRL-U.S. Aluminum Dark Bronze/Black Anodized Class 1 IG500 Series Custom Transom Door Frame for Butt Hinge and Overhead Concealed Closer

Product Details

• 2-1/2' x 5" (63.5 x 127 mm) Butt Hinges Transom Door Frame
• Includes Prep for 1-1/2 Pair Butt Hinges (Not Included)
• Includes Prep for Overhead Concealed Closure and Deadbolt Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

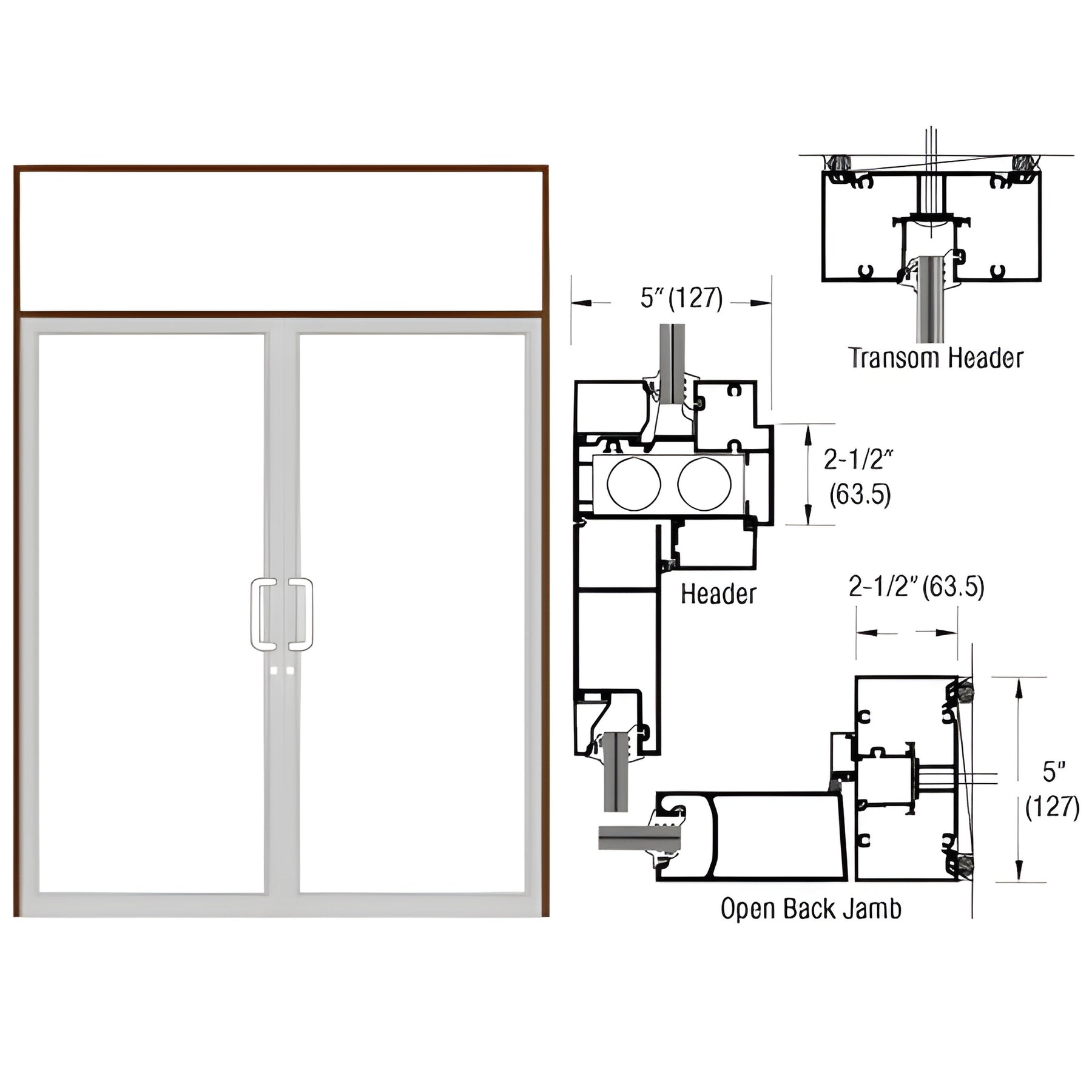

This Custom Double Transom Door Frame is built to accommodate a pair butt hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing, constructed using IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header and prepped for overhead concealed closer, IG526 transom header, and TH811 air threshold, hardware preparations include 1-1/2" pair of butt hinges, standard deadbolt strike.

When installing hurricane impact product always refer to FPA Guidelines.
