CRL-U.S. Aluminum IG500 Transom Frame for Geared Hinge/Surface Closer
CRL-U.S. Aluminum IG500 Transom Frame for Geared Hinge/Surface Closer
Regular price
$2,911.44 CAD
Regular price
Sale price
$2,911.44 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

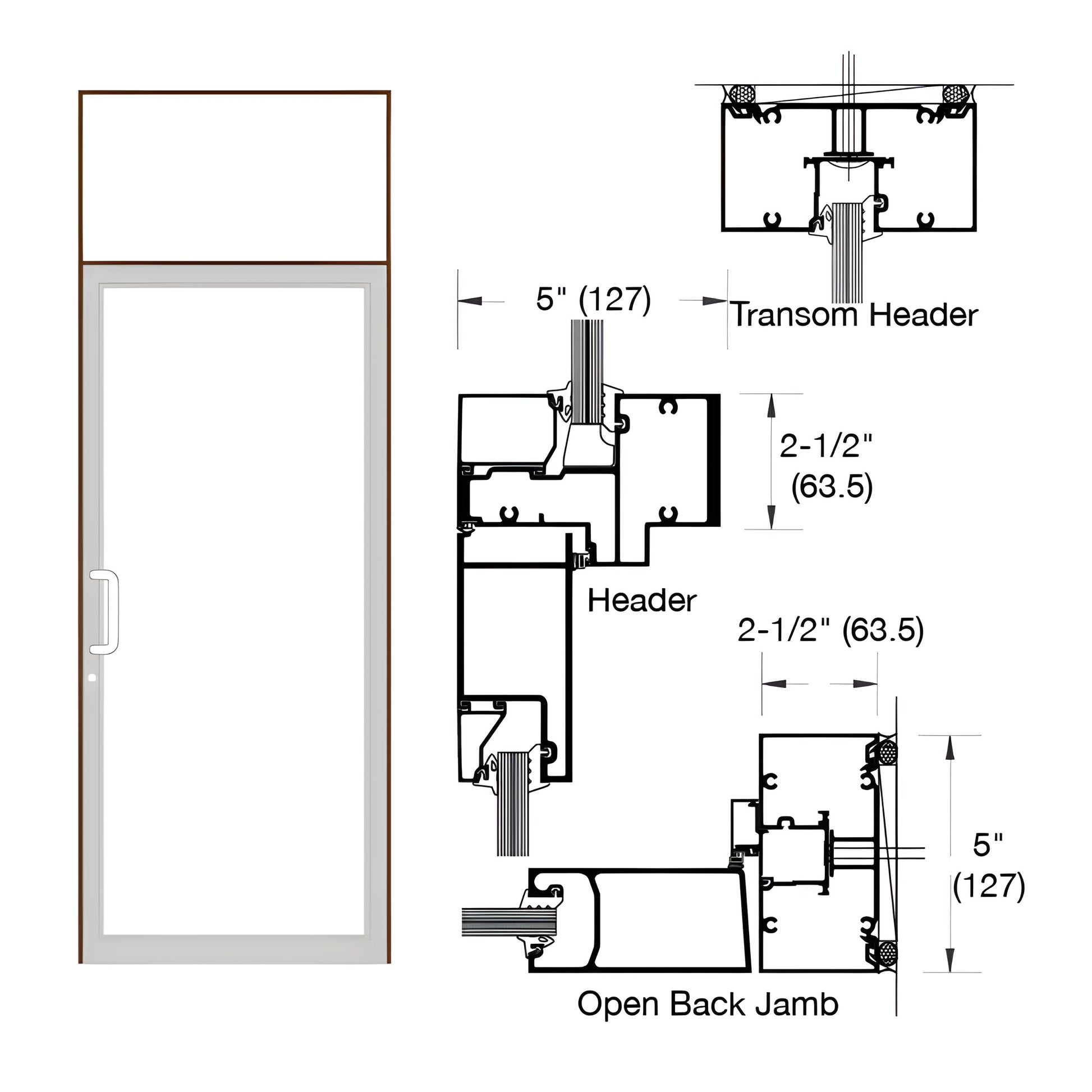

- 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Transom Impact Door Frame (Geared hinge not included)
- Prepped for standard deadbolt strike
- Includes air resistant threshold
- Optional air/water resistant threshold available
Custom Single Transom Door Frame designed for geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG147/IG146 door jambs, IG567/IG563 header, IG526 transom header, and TH811 air threshold. Hardware prep includes geared hinge locations and a standard deadbolt strike. Geared hinge not included.
SKU: 0F61822
When installing hurricane impact products, always follow FPA guidelines.
Durable, code-ready hurricane impact frame engineered for sealed performance — contact us to confirm threshold options and place your order.
