CRL-U.S. Aluminum IG500 Transom Frame w/ Geared Hinge & Closer
CRL-U.S. Aluminum IG500 Transom Frame w/ Geared Hinge & Closer
Regular price
$3,575.29 CAD
Regular price
Sale price
$3,575.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F62822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

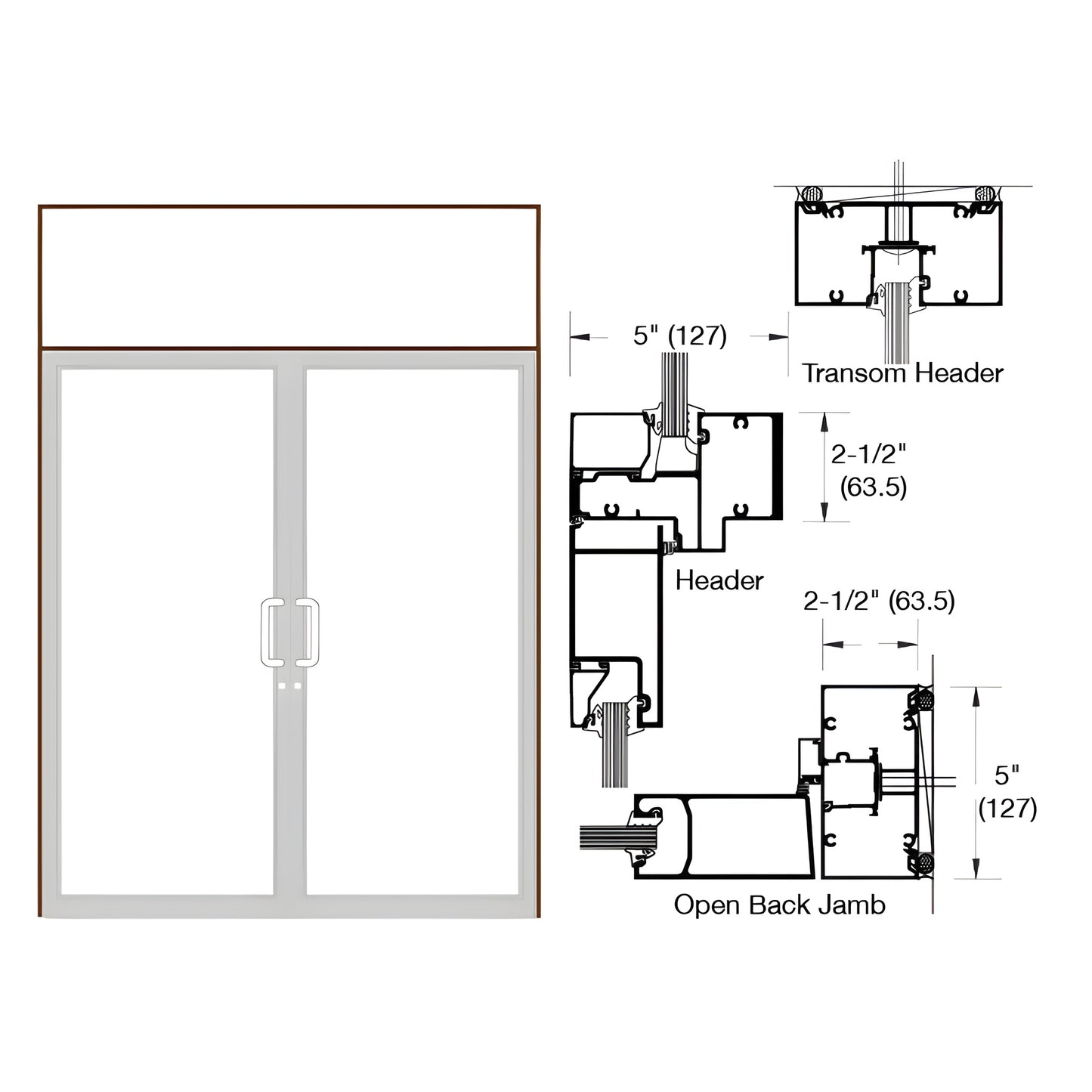

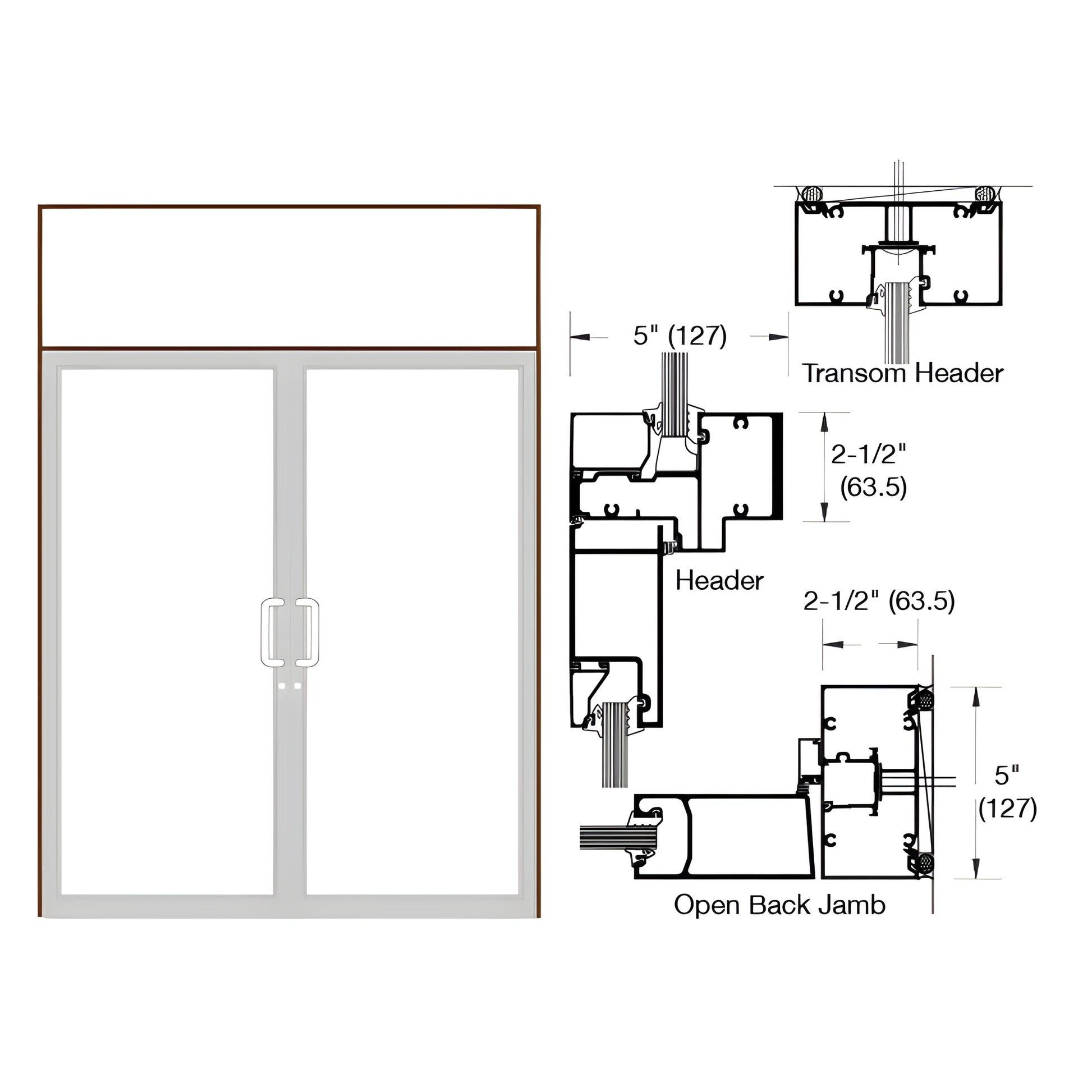

- 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Transom Impact Door Frame — for double transom configurations (Geared hinge not included)
- Prepped for standard flushbolt strike
- Includes TH811 air resistant threshold
- Optional air/water resistant threshold available
This Custom Double Transom Door Frame (SKU: 0F62822) is engineered for hurricane impact performance and built to accommodate a pair of geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed from IG526/IG147/IG146 door jambs, IG567/IG563 header, and IG526 transom header, the frame features hardware preparations for geared hinges and a standard flushbolt strike — an ideal choice for coastal and high-wind installations seeking certified impact door frame solutions.
Always follow FPA guidelines when installing hurricane impact products.
