CRL-U.S. Aluminum IG500 Bronze/Black Transom Frame for Geared Hinge
CRL-U.S. Aluminum IG500 Bronze/Black Transom Frame for Geared Hinge
Regular price
$2,554.77 CAD
Regular price
Sale price
$2,554.77 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P42822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

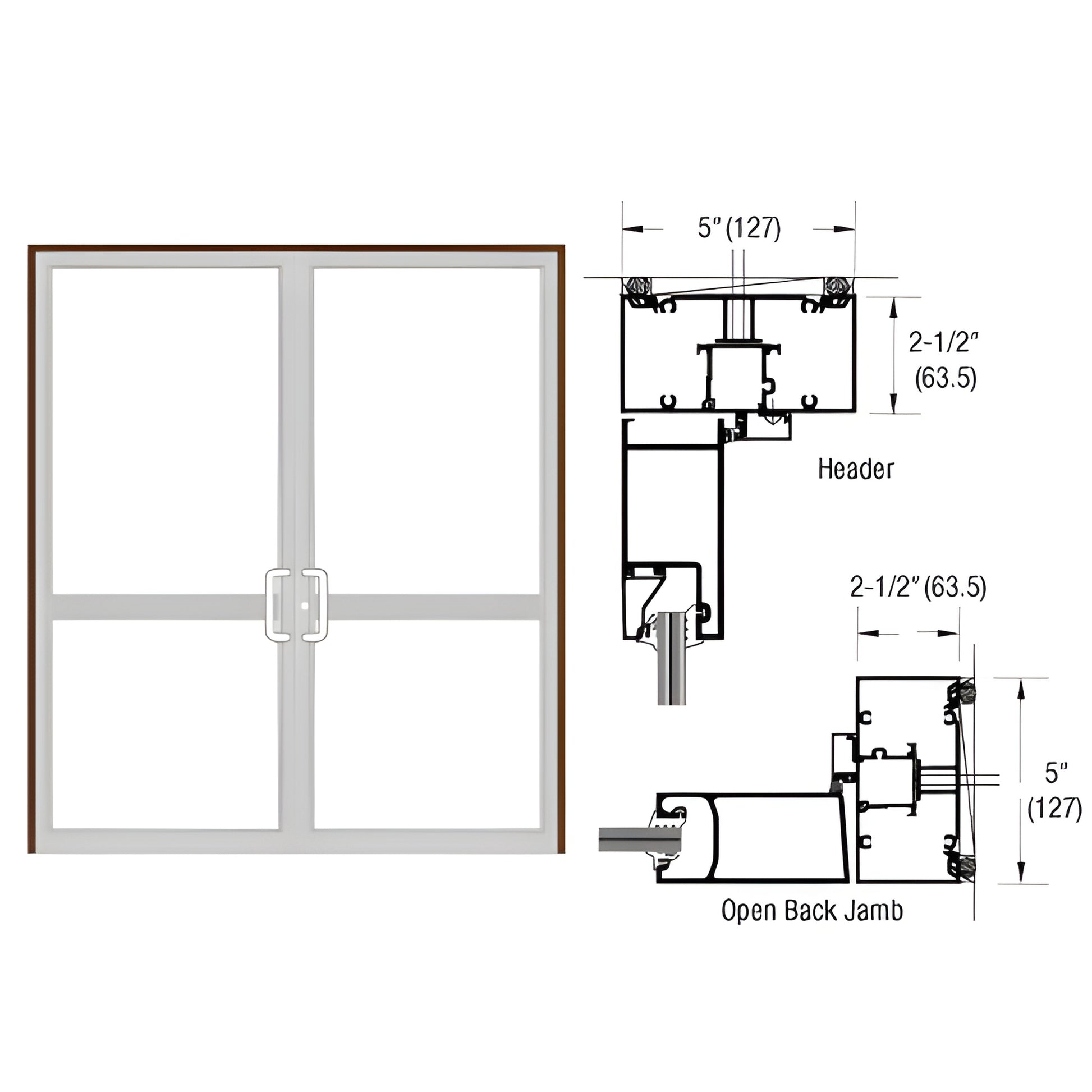

- 2-1/2" x 5" (63.5 x 127 mm) geared-hinged transom impact door frame for surface-mounted closer
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available
- Prepped for standard CVR strike and geared hinges
This Custom Up/Over Door Frame is designed for a pair of geared-hinged CVR panic hurricane impact doors using 9/16" (14 mm) laminated impact glazing with a surface-mount closer. Constructed from IG526 door jambs, IG552 header, IG046/IG047 with NP801 door stop, IG567/IG563 header and TH811 air threshold. Hardware preparations include geared hinges and standard CVR strike—ideal for hurricane-rated storefronts and high-wind coastal installations.
Always refer to FPA guidelines when installing hurricane impact products.
SKU: 0P42822 — For quotes and lead times, contact CRL Customer Service or request a project consultation.
