CRL-U.S. Aluminum Dark Bronze/Black Anodized Class 1 IG500 Series Custom Transom Door Frame for Geared Hinge, CVR Strike, and Surface Closer

Product Details

• 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Transom Impact Door Frame for Surface Closer (Geared Hinge Not Included)
• Prepped for Standard CVR Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

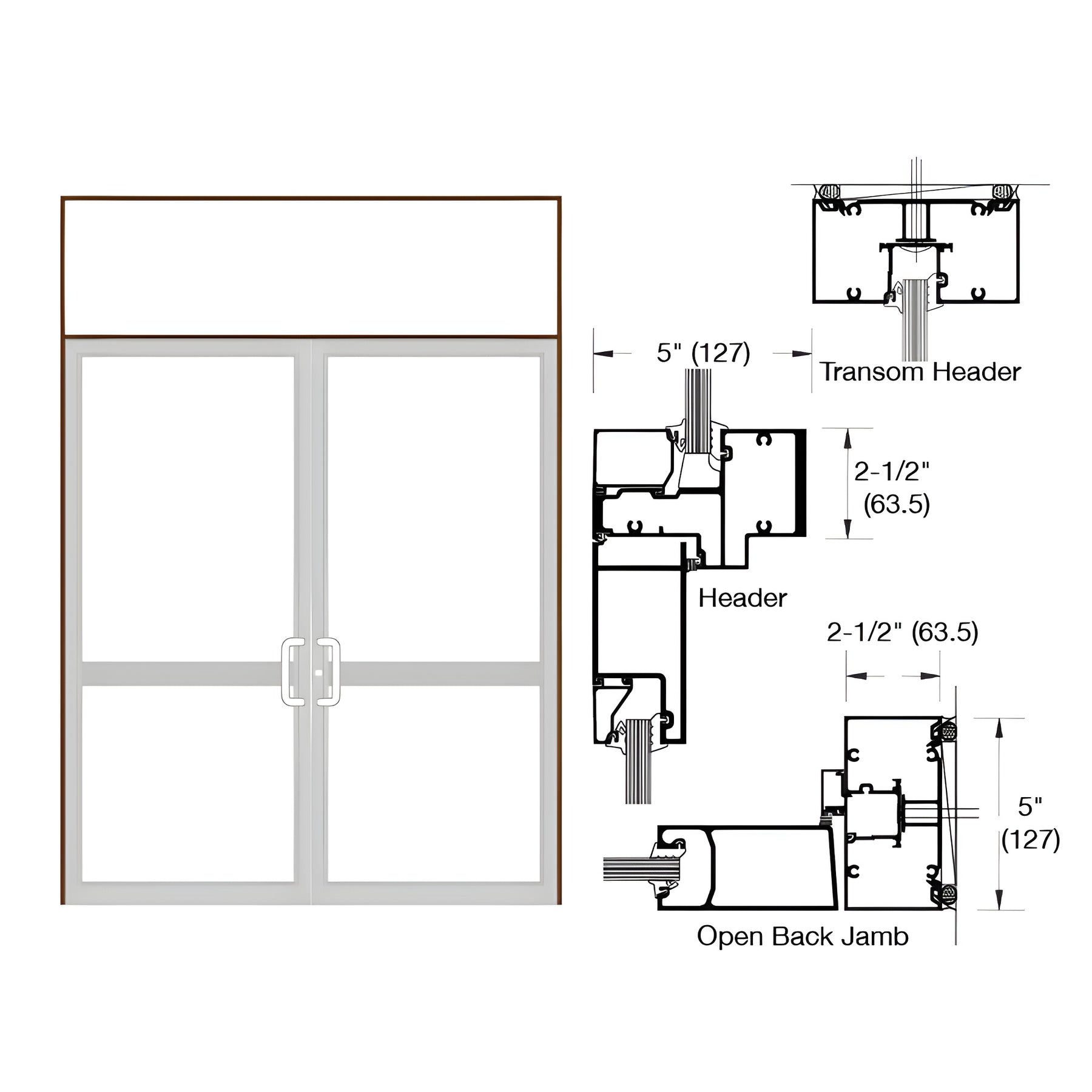

This Custom Transom Door Frame is built to accommodate a pair geared hinged CVR panic hurricane impact doors for using 9/16" (14 mm) laminated impact glazing for surface mount closer, constructed using IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, IG567/IG563 header, IG2526 transom header, and TH811 air threshold, hardware preparations include geared hinges, standard CVR strike.

When installing hurricane impact product always refer to FPA Guidelines.
