• Custom double up/over hurricane impact door frame, black bronze anodized, CVR panic strike prep, air threshold
1 1

CRL

CRL-U.S. Aluminum IG500 Bronze/Black Anodized Up/Over Butt Door Hinge

CRL-U.S. Aluminum IG500 Bronze/Black Anodized Up/Over Butt Door Hinge

$1,656.03 CAD
$1,656.03 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P41522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

  • Prepped for CVR Panic Strike
  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold
  • Prepped for 1-1/2" pair of butt hinges (not included)

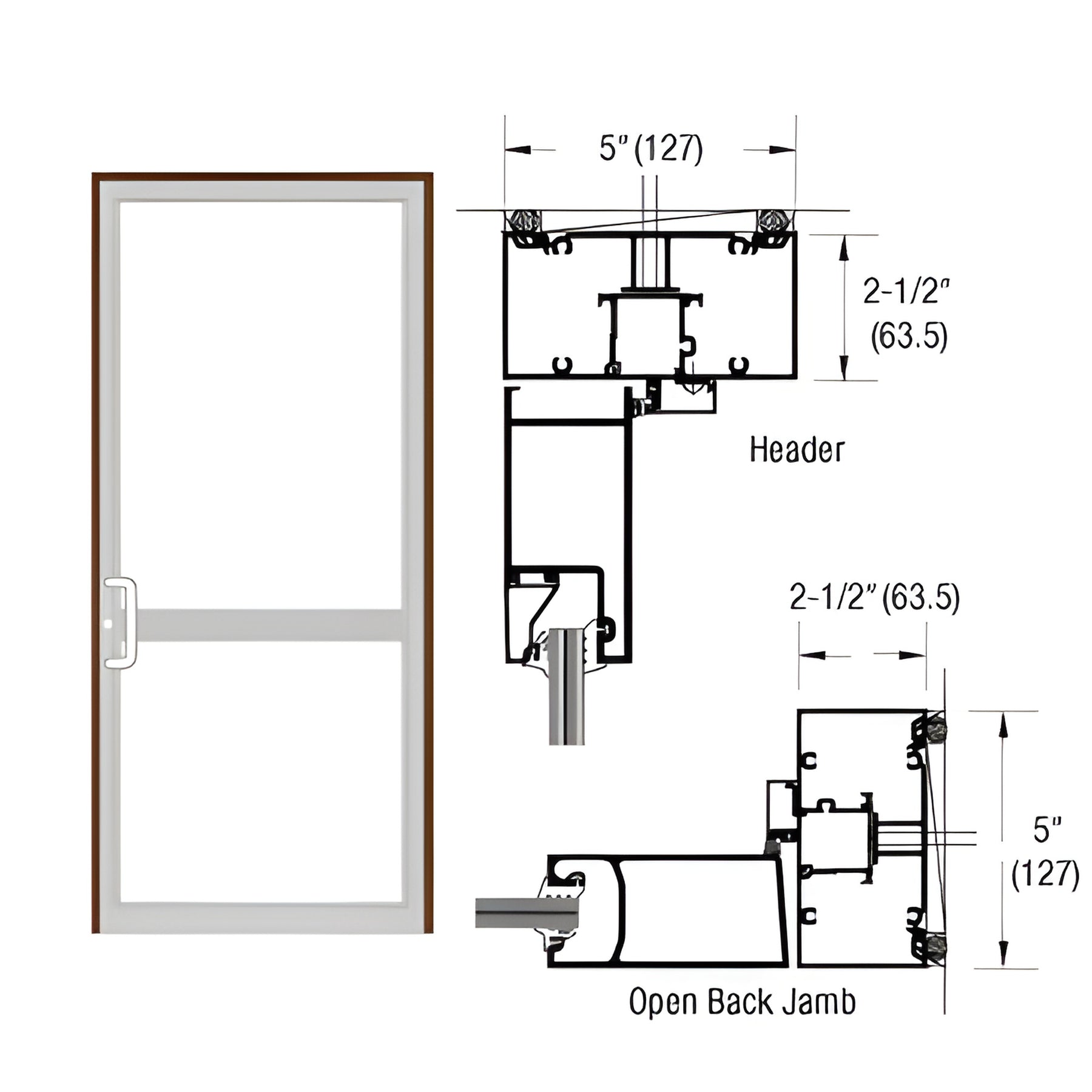

  • 2-1/2" x 5" (63.5 x 127 mm) butt hinged up-and-over impact door frame

This Custom Double Up/Over Door Frame (SKU: 0P41522) is engineered for hurricane impact openings and accepts a single butt-hinged CVR panic/hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed from IG526 door jambs, IG526/IG100 header, and IG046/IG047 with NP801 door stop, it ships with a TH811 air threshold for air resistance and is optionally available with an air/water resistant threshold. Hardware preparations include a standard CVR strike and provisions for a 1-1/2" pair of butt hinges (not included). Ideal for contractors specifying hurricane impact door frames, CVR panic strike prep, and air-resistant threshold solutions.

When installing hurricane impact products always refer to FPA Guidelines.
