CRL-U.S. Aluminum IG500 Dark Bronze/Black Anodized Butt Hinge Frame
CRL-U.S. Aluminum IG500 Dark Bronze/Black Anodized Butt Hinge Frame
Regular price
$1,679.22 CAD
Regular price
Sale price
$1,679.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F41522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

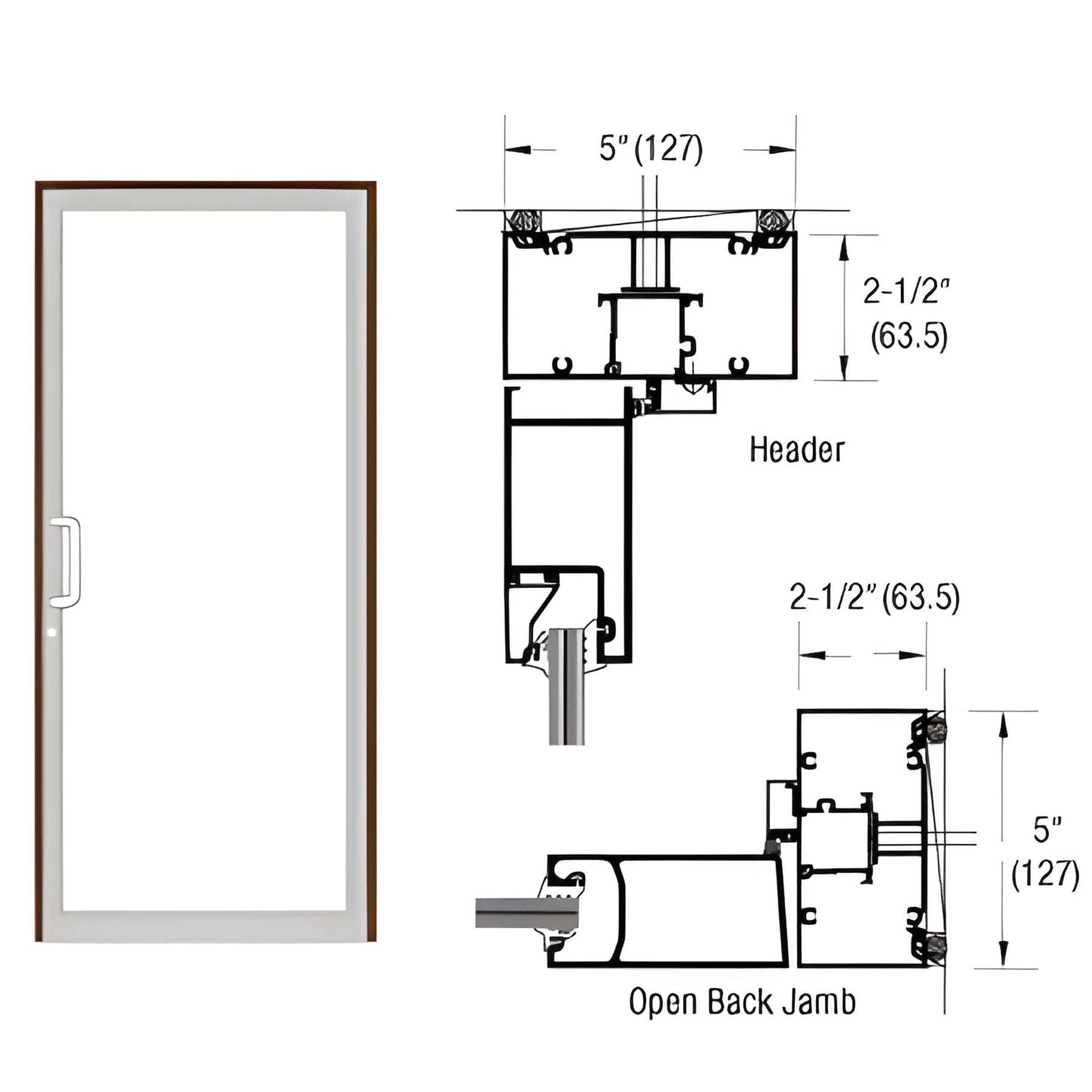

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged up-and-over impact door frame
- Prepped for 1-1/2 pair of butt hinges (not included)
- Prepped for standard lock strike
- Includes air resistant threshold (TH811)
- Optional air/water resistant threshold available
Custom Single Up/Over Door Frame designed for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware preparations include 1-1/2 pair of butt hinges (not included) and a standard lock strike. Ideal long-tail search terms: butt hinged hurricane impact door frame, up-and-over impact door frame with air resistant threshold, laminated impact glazing door frame SKU 0F41522.
Installer note: When installing hurricane impact products always refer to FPA Guidelines.
SKU: 0F41522 — Order now or contact CRL Customer Service for quotes and lead times.
Specifications
