CRL-U.S. IG500 Anodized Dark Bronze/Black Up/Over Butt Hinge, 2-Door

CRL-U.S. IG500 Anodized Dark Bronze/Black Up/Over Butt Hinge, 2-Door

$2,535.07 CAD
$2,535.07 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F42522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

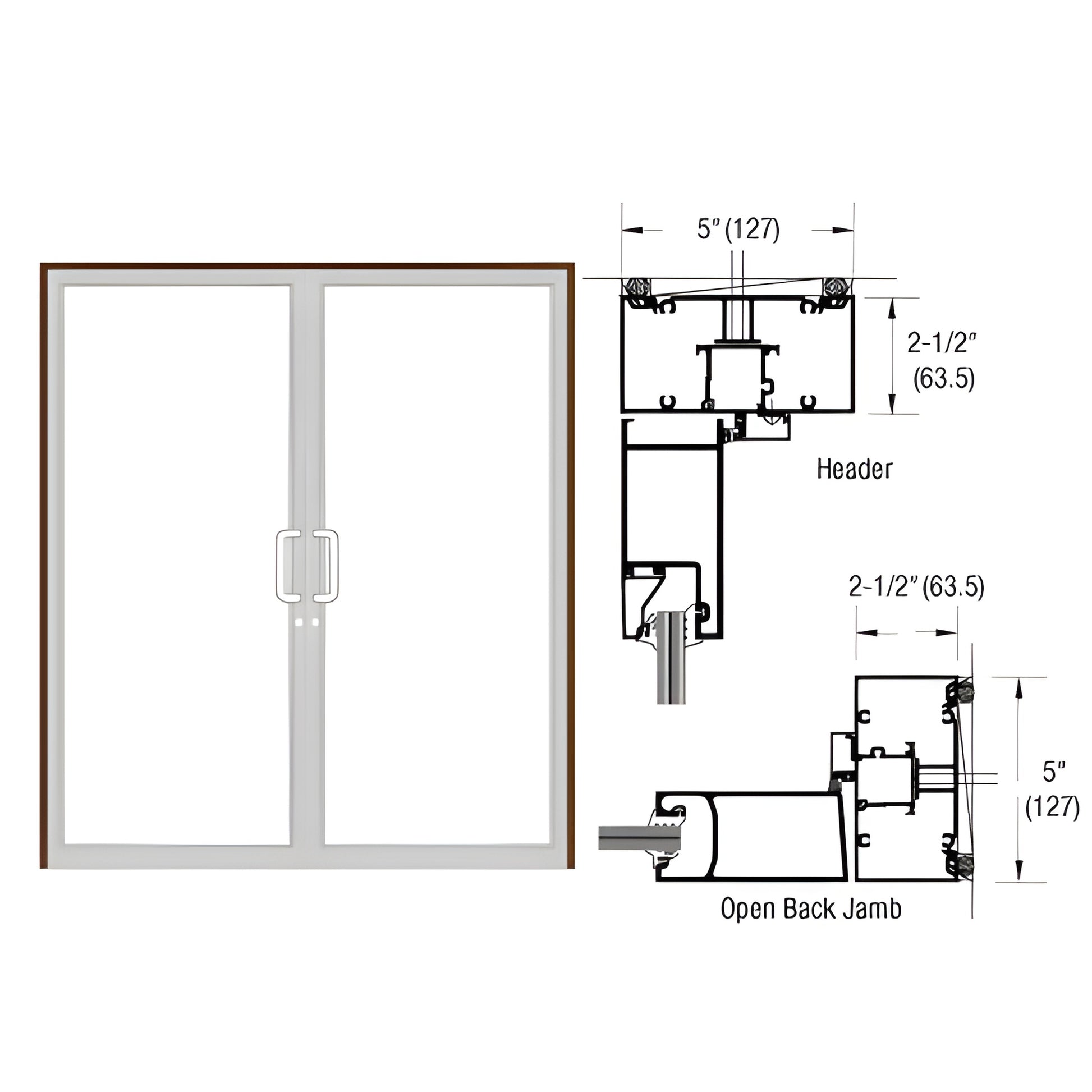

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged up-and-over impact door frame for double doors
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard flush-bolt strike
  • Includes air resistant threshold; optional air/water resistant threshold available

Custom Double Up/Over Door Frame — SKU: 0F42522. Built to accommodate a pair of butt-hinged hurricane impact doors with 9/16" (14 mm) laminated impact glazing for surface-mount closers. Constructed using IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware preparations include 1-1/2" pair of butt hinges and a standard lock/flush-bolt strike.

Ideal for coastal and high-wind applications, this up-and-over impact door frame supports hurricane-rated double doors and integrates an air resistant threshold for improved weather performance. Follow FPA guidelines when installing hurricane impact products.


Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Ready to order or need a quote? Contact CRL Customer Service for pricing and shipping details.
