CRL-U.S. Aluminum IG600 Dark Bronze/Black Anodized Transom Door Hinge
CRL-U.S. Aluminum IG600 Dark Bronze/Black Anodized Transom Door Hinge
Regular price
$2,282.25 CAD
Regular price
Sale price
$2,282.25 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P91522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

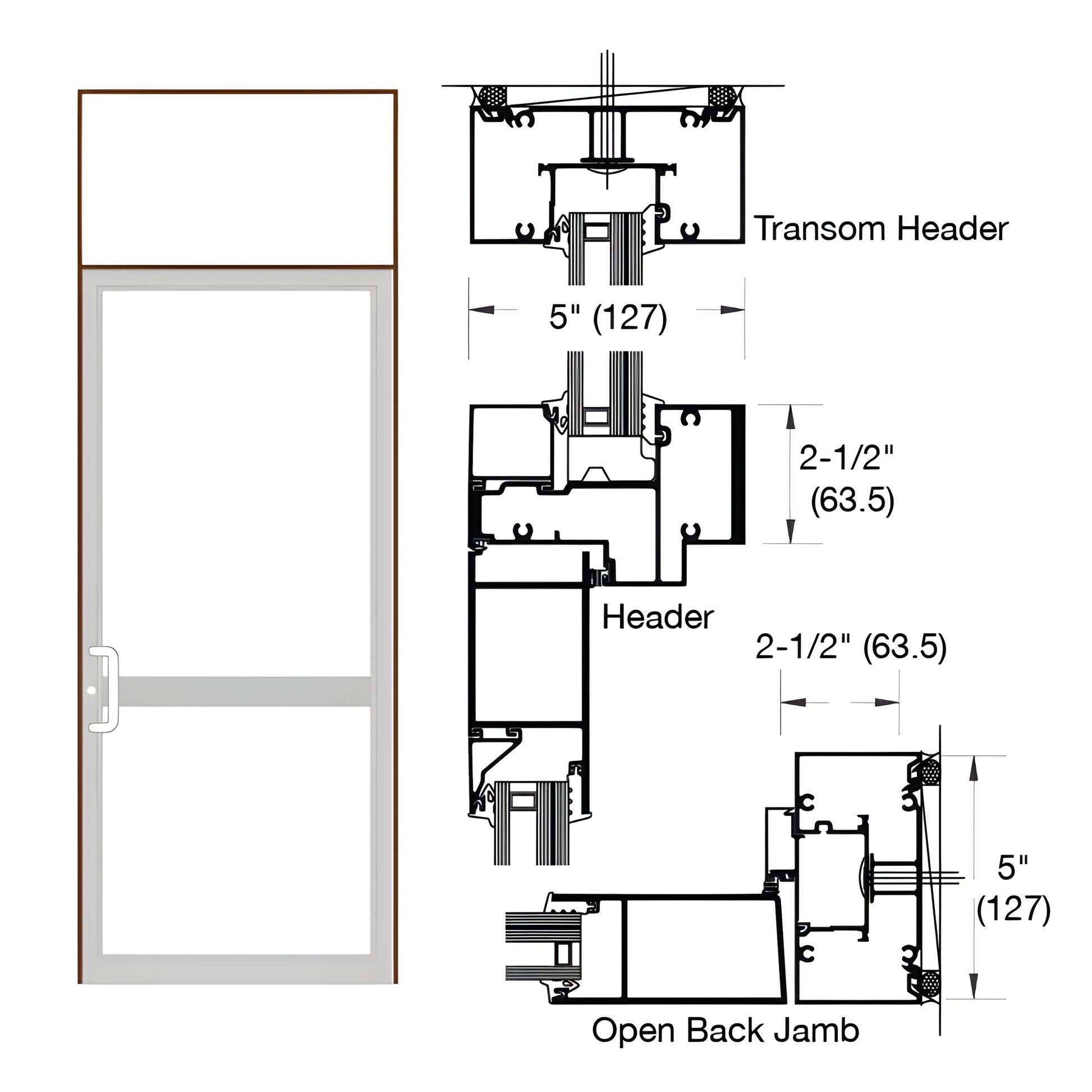

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged impact transom door frame — designed for hurricane impact doors
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for CVR panic strike
- Includes air resistant threshold; optional air/water resistant threshold available
This Custom Single Transom Door Frame (SKU: 0P91522) is engineered to accommodate a single butt-hinged hurricane impact door using 1-5/16" (33 mm) laminated impact glazing. Constructed from IG626/IG146/IG147 door jambs with IG667 header and IG663 seal, IG626 transom header, and TH811 air threshold, it supports surface-mount closers and standard CVR panic strike preparations. Ideal for coastal and high-wind applications where certified impact-resistant framing is required.
When installing hurricane impact products, always refer to FPA Guidelines.
Contact CRL Customer Service for exact weight, lead times, or to order this butt-hinged impact transom door frame (SKU: 0P91522).
